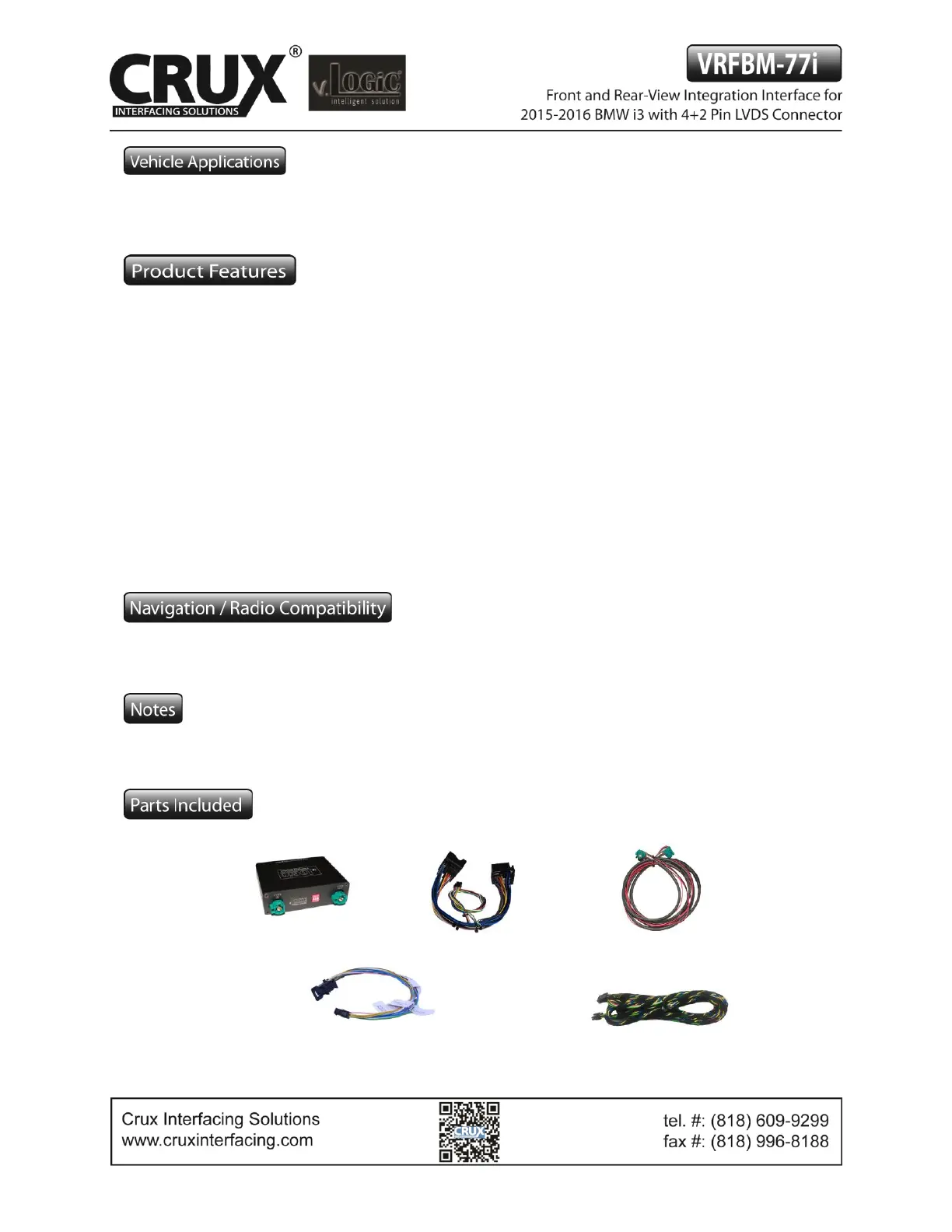

Page 1/11
BMW
2015 2016 i3*
With OE type Dynamic Parking Guide Lines
On-screen display and setup
2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, rear-view camera,
reverse gear)
Rear-view camera input
Front camera input
Front camera input can also be used as an Auxiliary Video Input
Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
Forced rear-view camera option (only on vehicles with PDC button)
Manual return from rear-view and front camera (cancellation of automatic switching)
Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking
sensor graphics
Compatible with all factory video accessories (e.g. rear-view camera, DVD-changer, etc.)
Plug & Play installation
For the BMW i3 with navigation system or radio and 6.5”, 7”, 8.8” or 10.25” monitor with 4+2pin HSD2
LVDS connector
The interface is installed under the glove compartment and the radio headunit is located under the rear
seat.
BM-77i Module
BM-77i Harness
4+2 PIN HSD2 LVDS Cable
Power/CAN Harness
i3-HAR
1 / 11
Rev.112816
2 / 12
Rev.112816
Setting the DIP switches of the Interface Box.
DIPs 1 and 2 on the back of the interface-box is used to set the monitor size. DIP 3 must be set to OFF.
Vehicle/ Navigation
Dip 1
Dip 2
Dip 3
6.5“ monitor.
OFF
OFF
No function
7“ monitor
OFF
OFF
No function
8.8“ monitor
ON
OFF
No function
10.25“ monitor (ver.1)
ON
OFF
No function
10.25“ monitor (ver.2)
ON
ON
No function
After each change of the DIP switch settings you have to execute a power reset of the interface box!
Connecting Interface box and harnesses
Remove the rear seat and locate the Radio Headunit. Unplug the Quadlock connector from the Radio
Headunit.
Plug factory Quadlock connector into the BM-77i T-harness female Quadlock connector
Connect the male Quadlock connector of the BM-77i T-harness to the female Quadlock connector of
the Radio Headunit.
Run the i3-HAR along the passenger side door sill from the Radio Headunit towards the glove
compartment and plug it into the Power/CAN harness.
Connect the female 12pin AMP connector of the Power/CAN harness to the front side of the VRFBM-77i
interface box.
3 / 12
Rev.112816
1
2
3
4
5
