ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• LOCATION OF THE ELLIPTICAL
• POWER/GROUNDING INSTRUCTIONS
• FOOT POSITIONING
• MOVING THE ELLIPTICAL
• LEVELING THE ELLIPTICAL
• POWER/MANUAL INCLINE OPERATION
• USING THE HEART RATE FUNCTION
HZ14_OG_Elite_E7_E9_Rev1_4.indd 2-3 7/16/14 2:50 PM
54

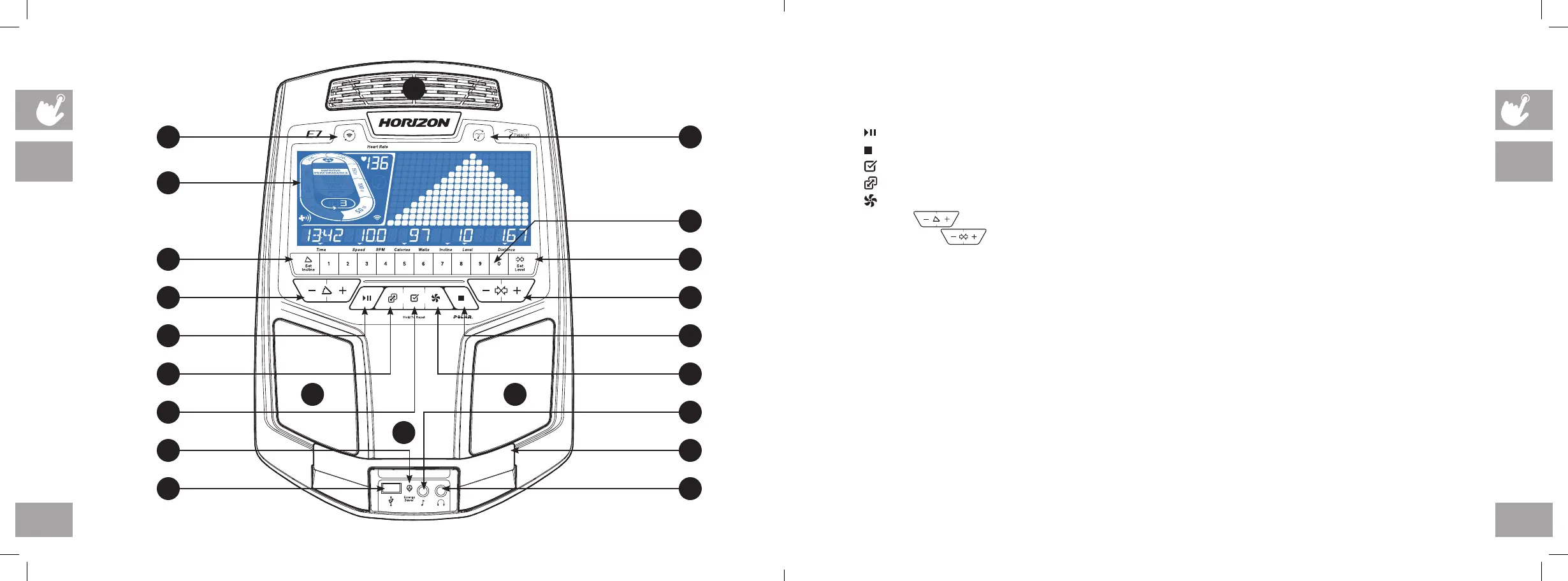

E7 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LCD DISPLAY WINDOW: time, distance, speed, calories, incline, RPM, Watts, level, laps, and heart rate.
B) (START/PAUSE KEY): press to start workout and pause workout.
C) (STOP KEY): press to stop workout. Hold to reset console.
D) (ENTER KEY): press to confirm selection during programming setup. Hold to reset console.
E) (CHANGE DISPLAY): press to change display feedback during workout.
F) (FAN KEY): press to turn fan on and off.
G) INCLINE
KEYS: press to adjust incline level.
H) RESISTANCE
KEYS: press to adjust resistance level.
I) QUICK ADJUST KEYPAD: quickly access any incline or resistance level by typing the number and pressing SET
INCLINE (J) or SET LEVEL (K) keys. Examples:
• To change the incline to 40%, press 4–0–SET INCLINE.
• To change the resistance level to 12, press 1–2–SET LEVEL.
J) SET INCLINE KEY: press to change incline to level entered into keypad.
K) SET LEVEL KEY: press to change resistance to level entered into keypad.
L) FAN: personal workout fan.
M) SPEAKERS: plays music through speakers when connected to your media player.
N) READING RACK: holds reading material.
O) PHONE/MEDIA PLAYER POCKET: holds phone or media player.
P) WI-FI CONNECT & SYNC: press to reset and connect your wireless internet connection. See Page 8 for more info.
Q) PASSPORT CONNECT & SYNC: press to reset and connect your Passport box for Virtual Active programming.
R) AUDIO IN JACK: plug your media player into the console using the included audio adaptor cable.
S) AUDIO OUT/HEADPHONE JACK: plug your headphones into the console to use them instead of the console speakers.
T) ENERGY SAVER LIGHT: indicates if machine is in Energy Saver mode.
U) USB PORT: used for software updates or to charge devices less than 1 amp.
E7 E7
A
F
B
E
D
G
J
C
H
K
P Q
I
L
M M
R
O
T N
U S
