Page 1/16
VSD Series Monolight
INSTRUCTIONS
www.impactstudiolighting.com
impact
Page 16
(back cover)
Page 1
(front cover)
10M 25M 50M 75 M 100M 10Y 25Y 50Y 75Y 100Y
To see all of our lighting equipment,
please visit our Web site.
Impact provides a limited warranty that this product is free from defects in
materials and workmanship to the original purchaser under normal use for a
period of one (1) year from the original purchase date. Impact’s responsibility
with respect to this limited warranty shall be limited solely to repair or
replacement, at its option, of any product which fails during normal consumer
use. This warranty does not extend to damage or failure which results from
misuse, neglect, accident, alteration, abuse, improper installation or
maintenance. To obtain a replacement during the time of this warranty,
please return the defective item with proof of purchase along with an RMA
number to the place of purchase. This warranty gives you specic legal
rights, and you may also have other rights which vary from state to state.
©Copyright 2009 Impact
2
Thank you for purchasing an Impact VSD Series Monolight. This device is
proof that highly-functional monolights can be affordable. The VSD Series
Monolight provides enough stored power to light a portrait or small still-life
setup and offers features found on monolights costing twice as much. We
expect that you will get many years of trouble-free service and enjoyment
from your Impact VSD Monolight. Please read these operating instructions
and safety precautions carefully before operating this equipment.
Features
• Four-stop range – full power to 1/16 power in .10 f/stop increments
• Large LCD screen
• Built-in optical slave
• “Auto-Dump” feature automatically res the ash when you step down power
• Modeling lamp can be set proportionally or independently of ash power
• Cushioned “touch-pad” function control buttons
• Tactile, “grippy” feel that resists slipping and shock damage
• Accepts Bowen-style reectors and head accessories (7-inch grid reector included)
• User-replaceable ashtube
• Commonly available 1/8˝ mini-plug sync input
Power Requirements
This light is designed for use with 110/120V AC power only and is supplied with a
three-prong, grounded plug. Do not attempt to defeat this safety feature. If necessary,
use only grounded extension cords rated for 6 amps or greater.
Warning
There are no user-serviceable parts inside the unit. Only qualied service engineers
should access the inside of the case (Danger – high-voltage parts inside). Avoid damage
to both the ashtube and modeling lamp. If the modeling lamp or ashtube become
cracked or damaged in any way, they should be replaced immediately. Do not use your
ash unit in an environment where moisture or ammable vapor is likely to come in
contact with the unit. Turn the power off and unplug the power cord when the unit is not
in use. Always remove the modeling lamp and replace the protective cap when
transporting the unit.
Page 2 Page 15
10M 25M 50M 75M 100M 10Y 25Y 50Y 75Y 100Y
Specications
Model VSD-160 VSD-300
Flash Output 160 Watt/sec 300 Watt/sec
Flash Variations 1/16 – Full
Guide Number
1
GN40 GN55
Power Supply 110V AC / 60 Hz
Recycle Time 1-2 seconds @ min. power
Modeling Lamp 60 Watts 100 Watts
Color Temperature 5600 ±200°K
Flash Triggering sync cord, slave cell, test button
Trigger Voltage 4.3V DC
Sync Range ≥10m
Dimensions (mm) 11.6˝ x 8.4˝ x 6.1˝ (with reector)
11.6˝ x 8.4˝ x 5.2˝ (with protective cap)
Weight 3.5 lb
1
Guide Number is calculated at 2m, ISO 100, 1/60, using the included reector, and is a starting point.
You should perform your own evaluations to determine the results you prefer.
All images in this manual are for illustrative purposes only. Your unit may differ slightly from the one pictured.
3
Contents of carton
Carefully remove the monolight from the box. You should have the following:
• 110-120V monolight with protective cap and ashtube installed
• 100W modeling lamp (60W with VSD-160 model)
• 7˝ grid reector • sync cable
• power cable • user manual

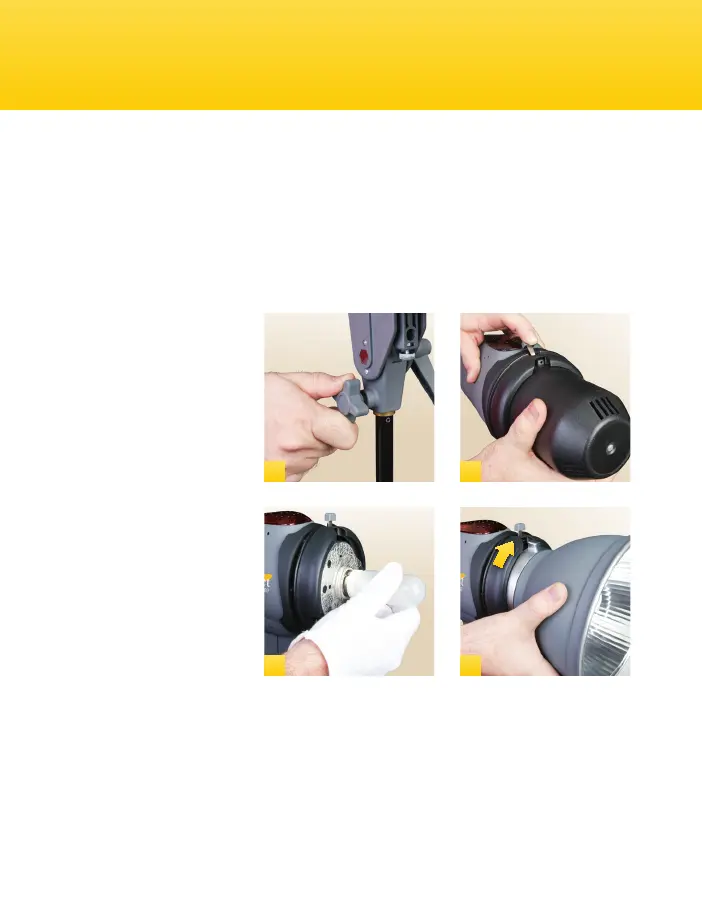

Mount on a stand
(1) Select a stand or support
system of suitable weight
and dimensions to ensure
stable operation of the unit.
Install Reector &
Modeling Lamp
(2) Depress the latch on top
of the monolight, pressing it
toward the back of the unit.
Rotate the protective cap
counter-clockwise. Pull the
cap off and set aside.
(3) Install the modeling
lamp by screwing it into the
threaded socket.
CAUTION: Do not touch the lamp with your bare hands. Oil residue from your ngers can
cause the surface of the lamp to heat unevenly and explode. Use white cotton gloves or a
clean cloth. (4) Install the reector where the protective cap was before. Align the three
pegs on the reector with the three slots, press the reector in and rotate clockwise
until it locks in place.
Note: Take care when tting or removing reectors or softboxes to not damage the
ashtube assembly. The ashtube is very delicate. Always switch off the unit and
disconnect the power before tting or changing lamps, ashtubes, reectors, or softboxes.
Preparing Your Monolight for Use
Page 14 Page 3
10M 25M 50M 75M 100M 10Y 25Y 50Y 75Y 100Y
1
3 4
2
Safety Notes
• Do not use your ash in an environment where moisture
may come in contact with the unit.
• A re hazard exists if ammable materials are placed in close proximity
to the ash tube or the modeling lamp. Do not use your ash
in an environment where ammable vapors are present.
• Do not restrict the ventilation holes when the ash is in use.
• Always switch off the power and disconnect the power cord
before changing the fuse, modeling lamp, or ashtube.
• Avoid placing cables where they can be tripped over.
Replace damaged cords immediately.
• Never use a ash unit with damaged covers, moldings, ashtube,
or modeling lamp. If the unit is dropped or damaged,
have it checked by a professional repair service before using.
• Due to the high-voltage circuitry inside this device,
do not attempt to disassemble or repair the unit yourself.
• Keep out of the reach of children.
Maintenance Notes
• Turn the power off and unplug the power cord when the ash is not in use.
• We recommend charging the ash unit for one to two hours prior to its initial use
and after an extended period of inactivity (more than two weeks).
• If the unit is left unused for a few months, or the unit has been used predominantly
at low power settings, we recommend that the power be increased
to the maximum and the unit left switched on (with the modeling lamp OFF)
occasionally for at least 30 minutes to help preserve the life of the capacitors.
• Avoid rapid, high-power ashing, especially when using restrictive reectors
such as snoots or grids. Excessive heat will shorten the lifespan of your ash unit,
modeling lamp, and ashtube.
Safety and Maintenance Notes
