Majority Belford Go
AM/FM RADIO

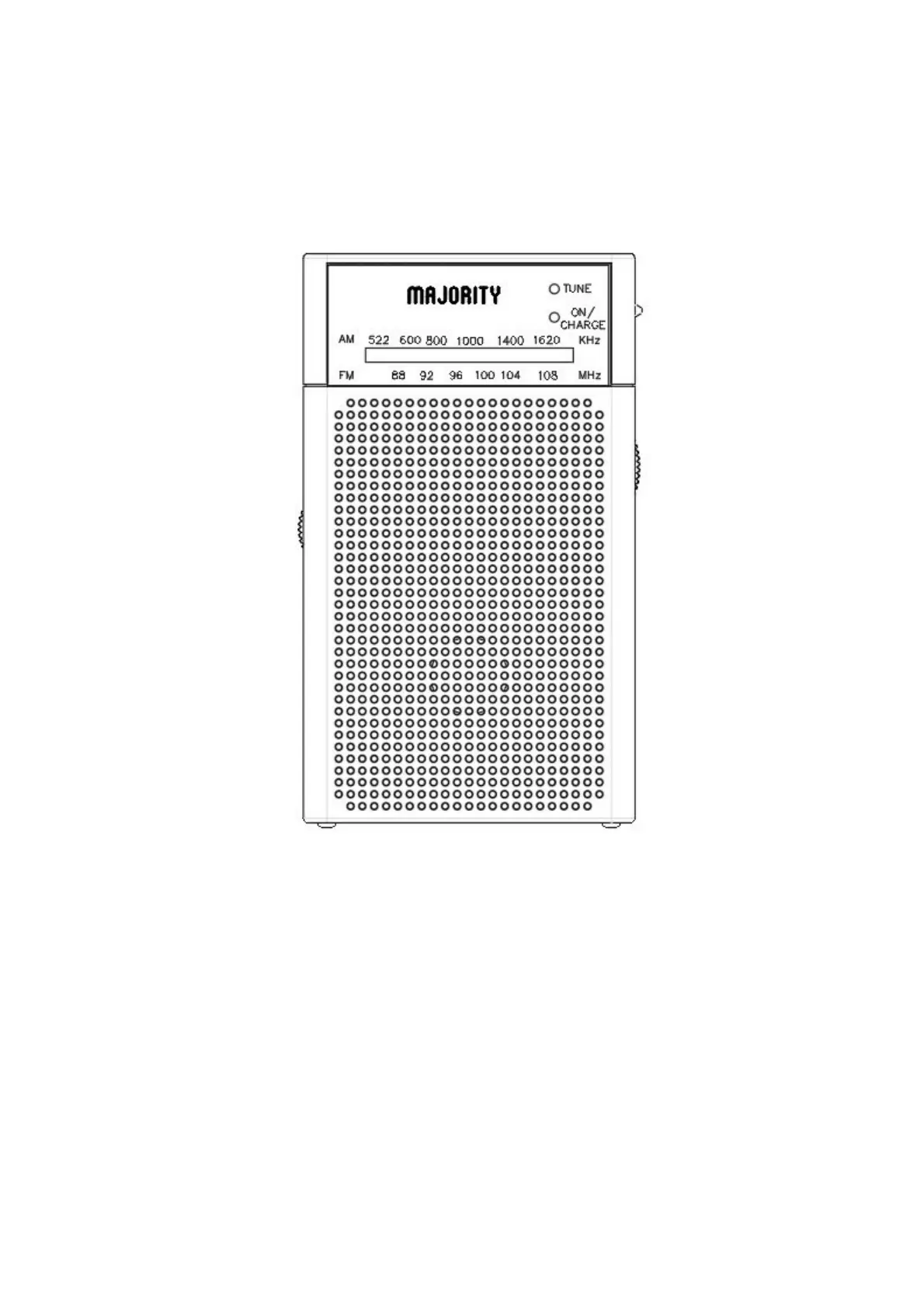

CONTROLS DIAGRAM:
1. Display
2. Radio Frequency Scale
3. Off/AM/FM Switch
4. Tuning Control
5. Telescopic Antenna
6. Charging Port
7. Earphone Jack
8. Volume Control
9. ON/CHARGE Light
10. TUNE light
11. Speaker Grill
12. Hand Strap
13. Support Clip
14. EVA Non- Feet Slip
3
CONTROLS GUIDE:
Select the FM or AM function to power on, select OFF function to power off.
Tune to your desired radio station with the Tuning Control. Use control slowly to achieve
best range of station reception being picked up. Optimum station signal is achieved when
the TUNE light turns green.
To enhance the reception and signal stren h for FM stations, extend the Telescopic gt
Antenna fully. The AM antenna is positioned inside the radio, to enhance the reception for
an AM station reposition the radio until an optimal signal strength is achieved.
Charge the device using supplied micro-USB cable, connected to power source.
The "red light" is on during charging, and the "green light" is on after full charge achieved.
Full charge is achieved within 3 hours.
When the battery is low and runs to zero, the device will shut down. If you do not use the
unit for a long time, charge it at least once a month to protect the battery and extend its
life.
Earphone jack will accept standard 3.5mm audio connection.
NOTE: Once the earphone is inserted, the speaker will be muted automatically.
To use the support clip, pull the clip outwards to extended position Push clip back to close. .
SPECIFICATIONS:
MODEL Majority Belford Go :
RANGE ( UK ) :
AM: -1620KHZ 522
FM: 88-108MHZ
RANGE ( US ) :
AM: -1710KHZ 520
FM: 88-108MHZ
SPEAKER: mm, 8 Φ57 Ω
EARPHONE JACK: >3.5mm Φ
Integrated rechargeable battery: 500mA (3.7 V)
The cycle life of the battery : ≥300 times
Batteries Size : 121(H)x70(W)x35(T)mm
WEIGH 122g (with battery) T :
USB cable DC 5V with micro socket
