Page 1/7

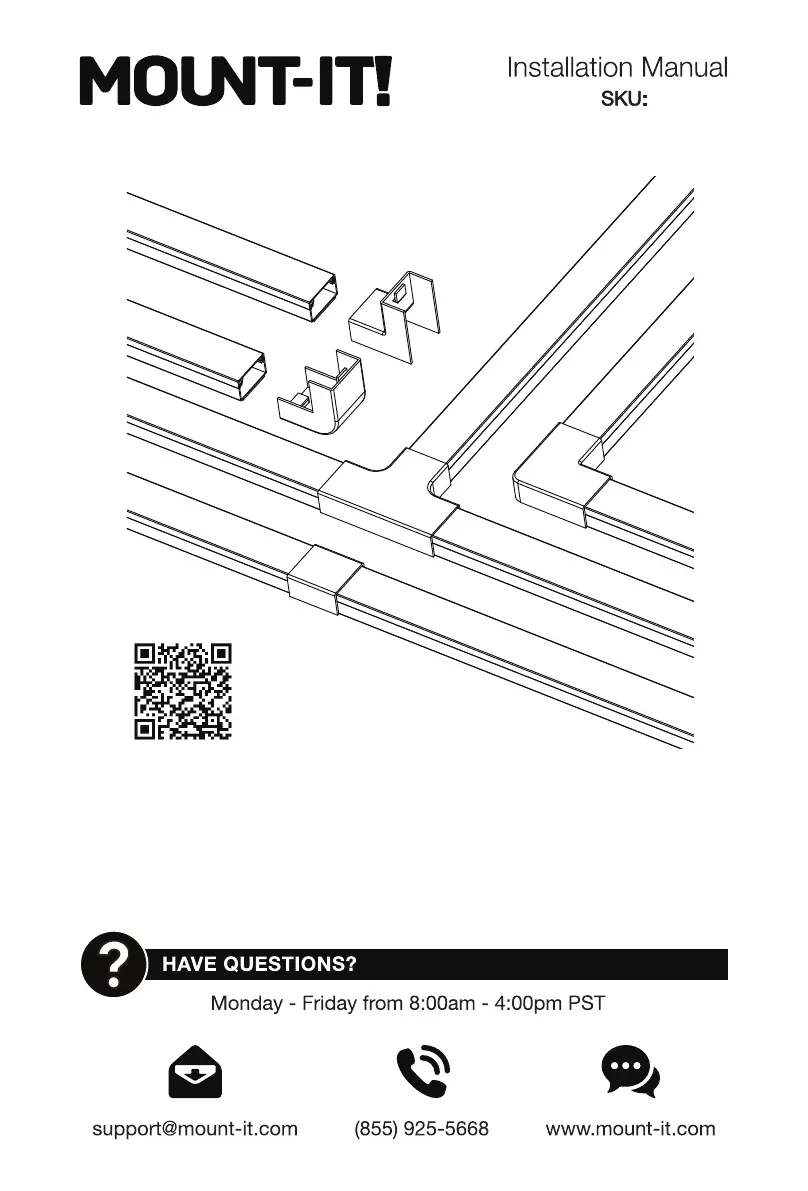

ON-WALL TV CABLE
CONCEALER KIT
MI-7285
Scan this QR code for
product information, videos,
and assembly assistance.
2
3
PACKAGE CONTENTS
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
WARNING
1. Due to the extremely sticky nature of the tape, please
plan your installation well in advance of installation to
avoid removing and reinstalling the cable channel. If
it is necessary to unplug the channel, try to soften the
bottom of the raceway by heating it with a Hair Dryer
(not too high a temperature is recommended) and then
gently peel it off.
2. The channels can be cut to a shorter length if needed,
please take all proper safety precautions when cutting
and beware of possible sharp edges left over.
3. It is not recommended that the channel be mounted
on an uneven wall, if you do need to mount on a
rough wall, use screw mounting rather than double
sided tape.
4. Do not use this product to route uninsulated, exposed,
or damaged wiring.
5. This product is intended to route and conceal cables for
decorative purposes, it may not be used as a structural
cable conduit.
Please refer to the diagram below for instructions on how to use each connector and select your
desired mounting method.
Exterior 90°:
Used for turning at
external corners.
Flat 90°:
90° bend angle for
flat surface
Straight Channel
T-fitting:
Used for T-shaped
corners
Straight Coupling:
Used to connect 2
channel to increase the
length at internal corners.
Interior 90°:
Used for turning at
internal corners.
Thank you for choosing Mount-It
Mount-It!
Mount-It!
Straight Channel
15.7" each Flat 90°
T-Fitting Concrete Anchor
Ф6×30mm
Lag Screws
ST3.8Ă—30mm
Straight Coupling
Interior 90° Exterior 90°
AĂ—10
EĂ—9 FĂ—2 GĂ—20 HĂ—20
BĂ—6 CĂ—1
DĂ—1
5
4
• If any of the Straight Channels (#A) exceed the required length, mark the correct length, and cut in the
marked location with a hand saw.
Optional: Cut the Straight Channel as Needed
Step 3
• Using a bubble level to ensure straightness, hold the Straight Channels (#A) in their positions and mark
the edge locations with a pencil.
Determine Final Placement
Step 4
• Remove the cover plates from the Straight Channels (#A) by sliding the top until it separates fully from
the bottom piece.
Remove the Cover
Step 5
• First, plan the route and mark it with a pencil, then measure the distance and determine the number of
cable channels needed and the number of connectors and each type. Refer to the diagram to determine
the exact spacing of each connector.
• To each Straight Channel (#A) add additional length to accommodate the connectors used:
• Add 0.63” (16mm) for each Flat 90° (#B) or Exterior 90° (#D).
• Add 1.3” (33mm) for each Interior 90° (#C).
• Add 2.36” (60mm) for each end of the T-Fitting (#F)
• Add 0.71” (18mm) for each Straight Coupling (#E)
Measure
Step 2
• Wipe the mounting area clean with a cloth or a duster. If the walls were cleaned using a liquid cleaner,
allow the surface to fully dry before proceeding.
Clean the Wall Surface
Step 1
Installation Option 1: Adhesive Tape
(Not suitable for rough or uneven surfaces)
0.63 inch
(16 mm)
1.30 inch
(33 mm)
0.71 inch
(18 mm)
2.36 inch
(60 mm)
0.63 inch
(16 mm)
