Page 1/12
www.noctua.at/home
1

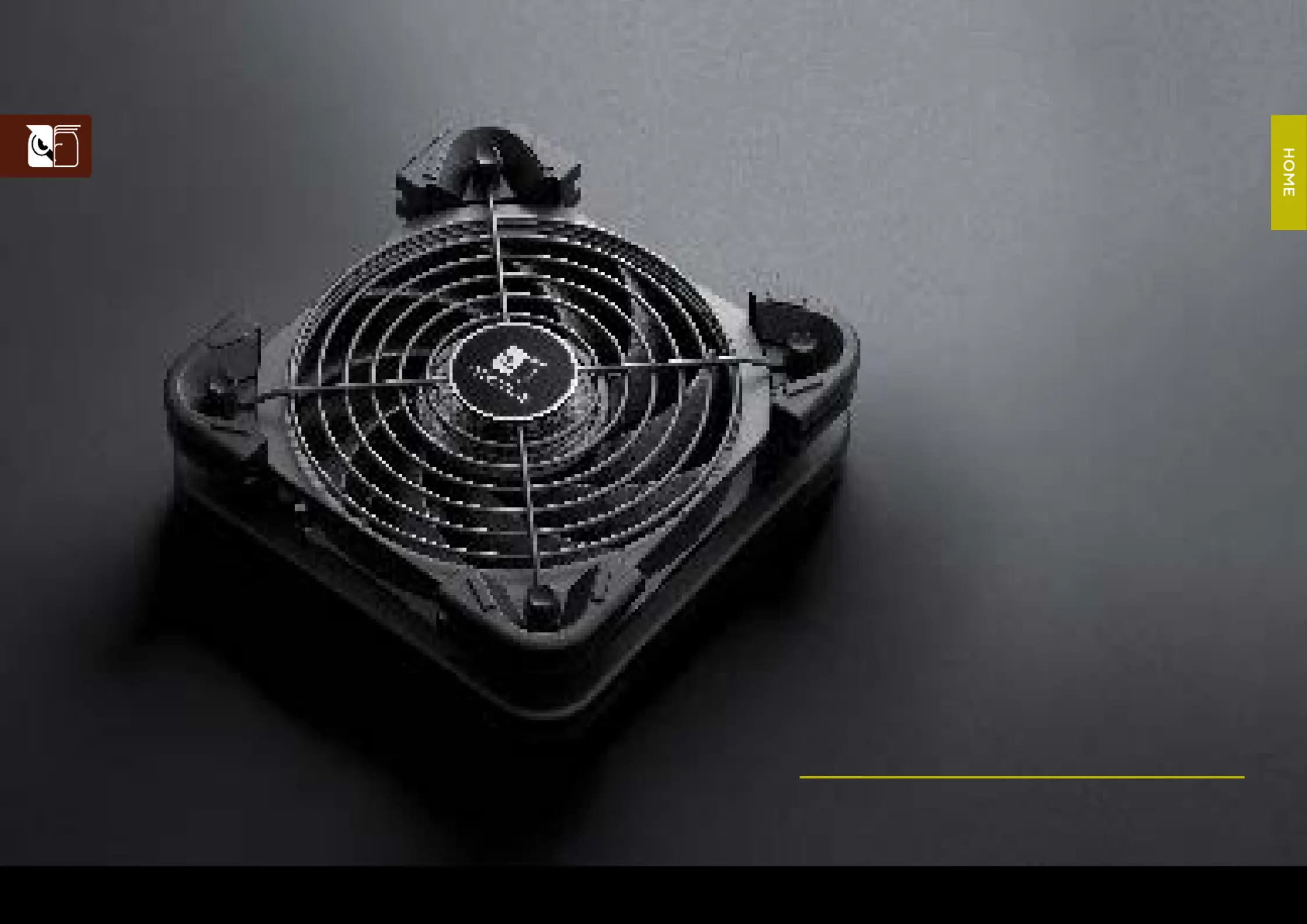

NOCTUA NV-FS2
Multi-purpose fan set for device cooling
User
Manual
power supply
NA-AC10
adaptor cable
NV-EC4-1m
extension cable
US socket adaptor
(Type A)
EU socket adaptor
(Type C)
UK socket adaptor
(Type G)
NA-FC1
fan controller
NA-FG1-12 120mm fan grill
Push-pin insert
NV-MPG1-12.black multi-purpose gasket
4x NV-MPP1.black multi-purpose pads
NF-A12x25 PWM chromax.black premium fan
1
2
3
Key components
Accessories
The NV-FS2 is a premium grade multi-purpose fan set that is ideal for adding extra cooling to electronic
devices such as A/V receivers, DVRs, video game consoles, stereo equipment, routers or storage solutions.
Whilst the NV-FS2 fan set comes pre-assembled ready for use, due to its modular design it can also be
disassembled or modiļ¬ed for speciļ¬c applications. A breakdown of the key components can be found below.
4
5
Push-pin plug
6
NOCTUA NV-FS2
Multi-purpose fan set for device cooling
www.noctua.at/home
2
NV-PS1
1
2
3
4
5
6
With the NV-PS1 power supply, the NV-FS2 set can
be powered directly from the mains, and includes
modular connectors for EU, US and UK type
sockets. To assemble the power supply, simply
slide the chosen connector onto the main NV-PS1
device until it clicks into place.
To remove or switch the connector to a different
socket type, hold down the release button and
slide the connector back up.
Setup
Speed control
For convenient stepless speed control, the NA-FC1
controller makes it possible to adjust the fan from
maximum airļ¬ow performance all the way to near-
inaudible operation, via the speed control dial.
By default, the fan will start up when the speed
control dial is turned up, and turn off when the dial
is turned back to minimum.
If the small push button is pressed (3) and the
green status LED is on (4), the NA-FC1 will operate
in āno stopā mode, which means that it will not
allow the fan to fall below 300rpm, regardless of
the speed setting.
www.noctua.at/home
3
NV- 1 PS power supply
++
NA-FC1 sp d cont llerNA- NA-ee roAC10 adaptor cable EC4-1m extension cable Fan
+ +
āNo stopā mode status LED
Speed control dial
āNo stopā mode push button
Speed setting status LED
Input connector
Output connector
NV- 1 PS power supply
++
NA- NA-AC10 adaptor cable EC4-1m extension cable
+
+
1
2
3
4
5
6
Fan
NA-FC1 sp d cont lleree ro
To connect the NV-PS1 power supply to the fan,
insert the NA-AC10 adaptor between the
primary fan cable and the cable of the NV-PS1
power supply.
In addition to the 135cm cable of the NV-PS1
power supply, the 30cm long NA-AC10 adaptor
and the fanās 20cm primary cable, the NV-FS1
set includes an NV-EC4 1m extension cable that
increases the total reach to 2.85m.
If using the extension cable, this should be
connected between the NA-AC10 adaptor and the
primary fan cable. The NA-FC1 fan controller can
be placed before or after the extension cable for
maximum ļ¬exibility.
