Sachtler Video 75 Plus EFP Manual
Read below đŸ“– the manual in Italian for Sachtler Video 75 Plus EFP (28 pages) in the Tripod category. This guide has been helpful for 22 people and has been rated 4.5 stars on average by 2 users
Page 1/28

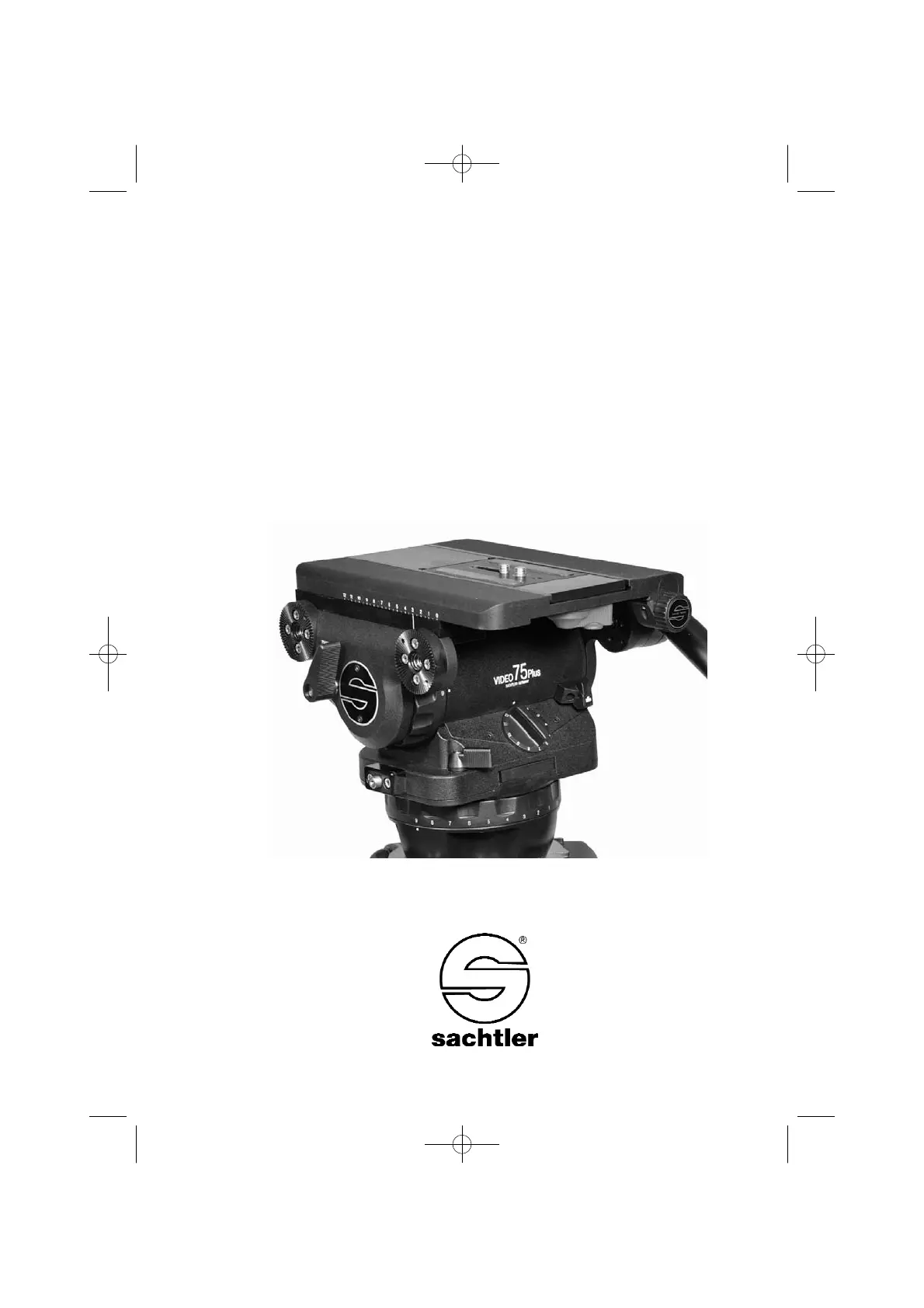

Video 75 Plus EFP
Manual
Benutzerinformation
Fluid Head
Fluidkopf
Video 75 Plus EFP_Version 2_9_02_12.qxp 01.02.2012 12:58 Seite 1
© by sachtler
®
. Alle Rechte vorbehalten / All rights reserved
Version: 2.9/02/12
Ausgabedatum / Issue date: 02/12
Bestellnr. / Order no.: sko16t100a
Originalbetriebsanleitung/Original User Manual
sachtler
®
Vitec Group Videocom Division
www.vitecgroup.com
Erfurter Strasse 16 Postfach / P.O.BOX 2039
D-85386 Eching D-85380 Eching
Germany Germany
Telefon: (+49) 89 32158200
Telefax: (+49) 89 32158227
E-Mail: contact@sachtler.de
Homepage: http://www.sachtler.com
We want you to receive Sachtler
products that are always state of
the art.
Therefore we reserve the right to
make changes based on techni-
cal advances.
Wir wollen, dass Ihre Sachtler
Produkte immer auf dem aktuell-
sten Stand sind.
Deswegen behalten wir uns tech-
nische Ă„nderungen vor.
Video 75 Plus EFP_Version 2_9_02_12.qxp 01.02.2012 12:58 Seite 2
- I -
Table of contents
1 Safety instructions ...............................................................1
2 Operating elements..............................................................1
3 Operation .............................................................................2
3.1 Levelling of the fluid head............................................2
3.2 Removing of the camera plate ...................................2
3.3 Mounting of the camera...............................................2
3.4 Removing of the camera..............................................3
3.5 Positioning of the camera............................................4
3.6 Adjusting the camera’s counterbalance ......................4
3.7 Setting of the Damping................................................5
3.8 Brakes ..........................................................................6
3.9 Support for view finder extension and Front Box .......6
3.10 Change of the batteries ...............................................6
3.11 Transport setting of damping, counterbalance .............
and brakes ...................................................................6
4. Technical specifications.......................................................7
4.1 General data ................................................................7
4.2 Dimensions ..................................................................8
5 The modular system ............................................................8
5.1 Conversion of the Video 75 Plus EFP to include
V-shaped wedge plate.................................................9
5.2 Conversion of
Video 75 Plus EFP
to include flat base ..10
5.3 Conversion of the Video 75 Plus EFP to include
Mitchell base..............................................................10
6 Accessories........................................................................11
7 Warranty.............................................................................12
Video 75 Plus EFP_Version 2_9_02_12.qxp 01.02.2012 12:58 Seite I
