Page 1/14
DA68-01530M
Register your product at www.samsung.com/global/register
Please read all the safety precautions included in this manual prior to use
and retain this manual properly for future reference.
Please read through this manual before connecting to power and keep it
for future reference.
Any change relating to this manual will result in no additional notice due to
continuous improvement made on our products.
ENGLISH
OWNER'S INSTRUCTIONS
MODEL:
RL22FC**
RL24FC**
English

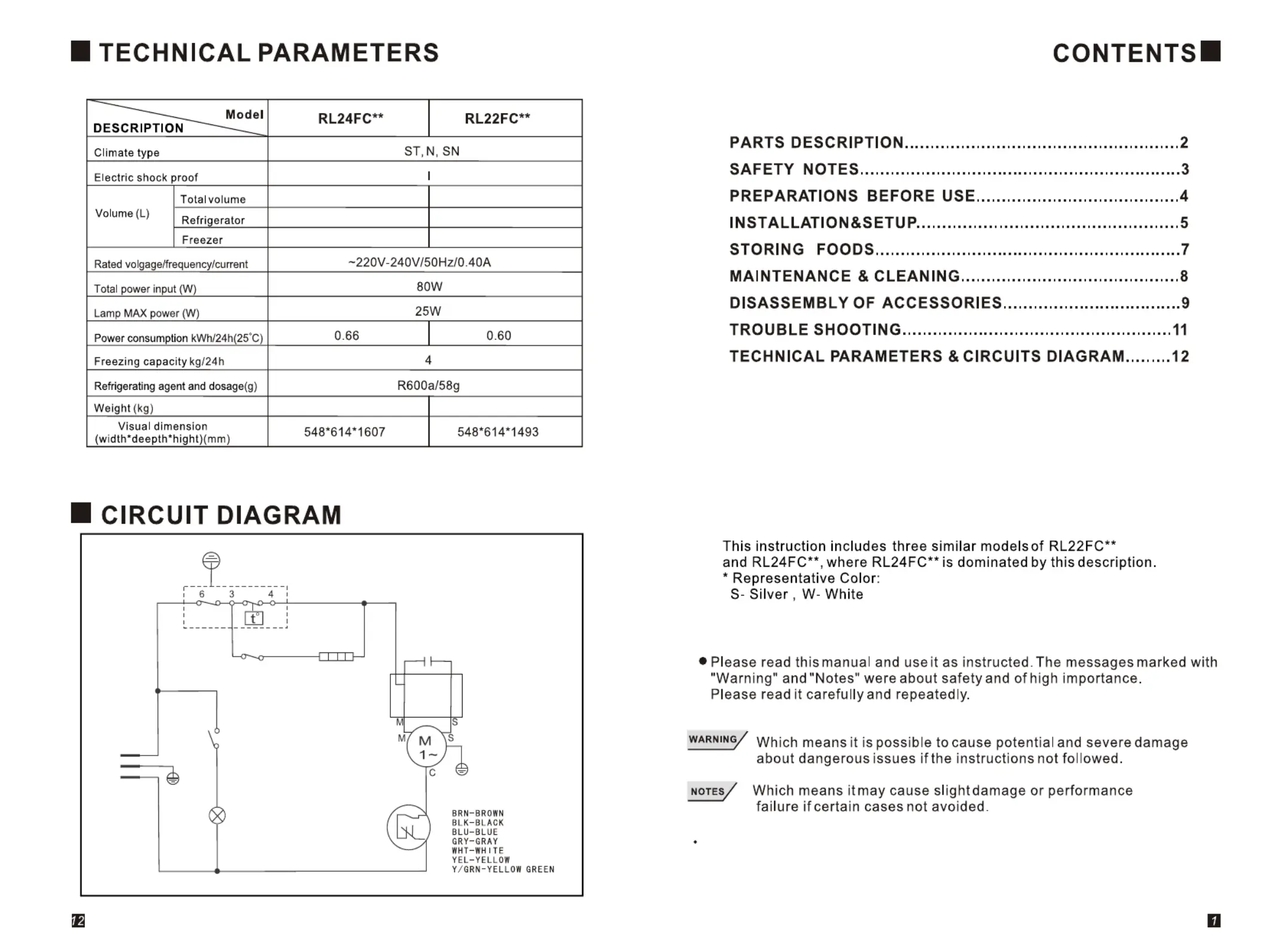

GRY
BLK/WHT
RED
RED
SKY BLU
THERMOSTAT
GRY
Y/GRN
/
/
/
/
COMPRESSOR
HEATER
HEATER SWITCH
SWITCH DOOR
Y/GRN
/
/
/
/
EARTH
GRY
LAMP
O/L PROTECTOR
/
/
/
/
BLK/WHT
BLU
BRN
Y/GRN
/
/
/
/
CAPACITOR
1
2
3
YEL YEL
PTC RELAY
224/219
83/80
141/139
204/199
68/65
136/134
57 55
Do not store pharmaceuticals products, scientic materials or temperature-sensitive
products in the refrigerator.
- Products that require strict temperature controls must not be stored in the refrigerator.
PARTS DESCRIPTION
Product features
Mechanical control:the built-in temperature sensor controls the inside temperature more precisely.
Fi-free environmental protection: this appliance is the green product.
Reliable performance: seamless high efficient compactor of famous brand is used in this product
with excellent performance and high reliability.
Reasonable structure:the layout of reefer up and freezer down can reduce the cooling energy
and power loss. The frequently used upper reefer can facilitate the access. The reefer shelf
is position adjustable with the volume.
Odour reservation: the freezer is drawer-structured to ease food storage and protect from odour mixing.
Flat back:the built-in condenser is easy to clean.
Attachment
RL24FC**
RL22FC**
3 1 1 2 1 1 2 1
DRAWER-F
SHELF-R
Name
Model
TRAY-VEG
COVER-VEG
TRAY-ICETRAY-EGG GUARD-EGG
GUARD-BOTTLE
3 1 1 2 1 1 2 1
Parts description (RL24FC** for example)
2
LAMP COVER
DRAWER-F
SHELF-R
COVER-VEG
TRAY-VEG
GUARD-BOTTLE
TRAY-EGG
GUARD-EGG
TRAY-ICE
LAMP SWITCH
TROUBLE SHOOTING
11
The front frame and side plate get hot
- The de-dew pipe is built in the frame to avoid dews condensing
on the frame. It will get hot when the appliance is running.
- The cooling assembly(condensor) is installed on both sides
of the frame.
Ice cracks are heard
- It is not a fault. When the appliance is initiated or closed,
poop will be heard due to sharp change of temperature which
cause uneven heat imposed on the interior parts
- The cooling pipes in the back will be under 0 when the appliance
is running. Frost or ice will be found on the back due to dense moisture.
- When the appliance is off, the frost will disappear automatically.
- Suggest to clean the appliance once per month.
- Foods and food container shall not lean closely against the back.
Frost or ice is found on the back
- It is not a fault. The sound is heard when the refrigerant flows.
Streaming is heard
Dews are condensed on the mid-ridge and the frame
- When the environmental humidity exceeds standard.
- Please wipe with the soft cloth.
- When the door is left open for long time or
- The fluid food are not properly sealed.
Dews condensed in the vegetable compartment.
Should your problems falls out of the above, please visit the designated
service center with the WARRANTY CERTIFICATE or contact Sumsung Technical
Help Center.
Product Specifications
| Brand: | Samsung |
| Category: | Freezer |
| Model: | RL26FCSW |
