Military 1-5Ă—24 (Rapid Mil Dot)
Military 3-15Ă—50 (G2B / MSR)
Military 5-25Ă—56 (G2B / MSR)
USER’S MANUAL
STEINER Military
Riflescopes
English 2
Deutsch 16
2
CONTENTS
Reticle Subtensions 9
Specifications 12
Scope Dimensions 14
INTRODUCTION
STEINER is one of the largest manufacturers of high-quality
optics in the world. STEINER products represent the highest lev-
el of precision and technology.
STEINER Military Scopes were especially developed in close
cooperation with international weaponry experts for the tough
requirements of military missions around the world. They are
field-tested and combat proven by special forces and success-
fully withstand the harshest conditions. STEINER Military Rifle-
scopes represent a new class in terms of performance, quality
and reliability. They are ideally suited for tactical, military and
law enforcement operations.
This manual outlines the basic operation and maintenance
of the scope.

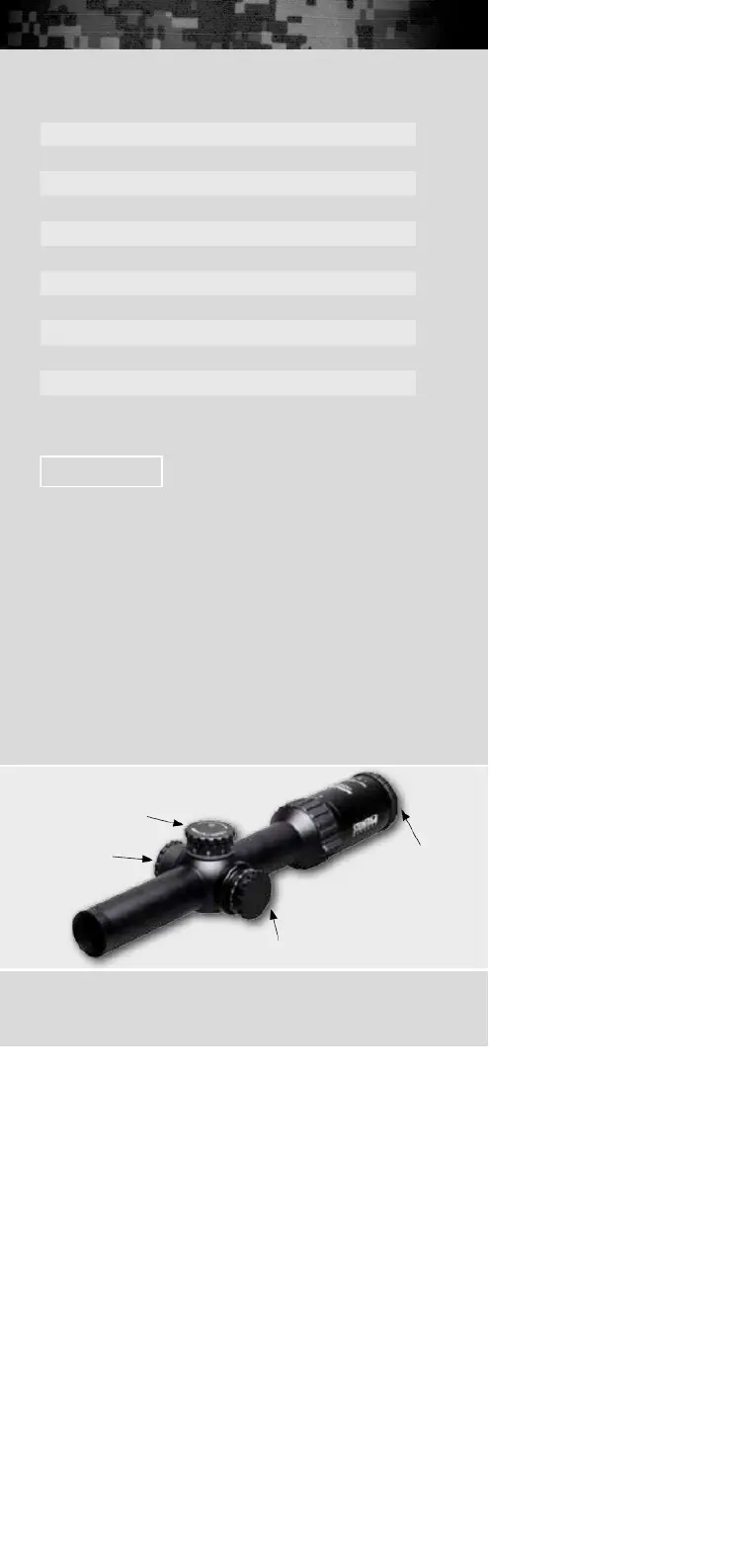

Elevation
Adjustment Knob
Windage
Adjustment Knob
Rotary Dial
Illumination Control
Eyepiece
Focus Ring
Military 1-5Ă—24
4
The “Off” positions at the minimum and maximum ranges
turn the circuit off completely and should be used when the
scope is not in use. Each level also has a detent to prevent unin-
tended changes during use.
Positions 8-11 are for daylight operations. Positions 1-7 are
used during night-time operations. Positions 1-4 are suitable
when utilizing night vision devices.
The reticle is powered by a 3-volt lithium cell battery
#CR2450. To install a new battery, simply unscrew the battery
cap on the rotary switch and install the new battery flat side (+)
up. It is advisable to remove the battery for long term storage
(over a month).
parallax / FocUs adjUsTMenT
For MIlITary 1-5Ă—24 mm:
The Military 1-5Ă—24 mm scope is adjusted parallax free at
100 m (fix).
For MIlITary 3-15Ă—50 mm and 5-25Ă—56 mm:
Parallax is the apparent movement of the reticle in rela-
tion to the target when the eye is not directly in line behind the
center of the scope.
Images from dif-
ferent distances
focus in front of or
behind the scope’s
reticle. Parallax is
more noticeable
with higher magni-
fication scopes and
scopes with a larg-
er objective lens.
To use the par-
allax/focus adjustment, rotate the knob on the left side of the
adjustment turret until the numeral corresponding to the known
target distance lines up with the reference mark. If the distance
is unknown, rotate the adjustment knob until the target image is
sharply focused.
When the scope is set parallax free for the distance you are
viewing, you should be able to move your eye side-to-side or up
and down without seeing the reticle move appreciably in relation
to the target.
