Page 1/4
Issue 1
1 947282
V-CTSQPK
INSTALLATION INSTRUCTIONS
INTRODUCTION
The interior speaker, the V-CTSQPK, is capable
of reproducing paging as well as back ground
music. The volume may be adjusted by
connecting various combinations on the input
screw terminals. The enclosure is made of steel
with a durable powder coated finish. The color
of the enclosure can easily be changed to match
any décor. The unit contains an 8” full range
speakers.
DIMENSION/ WEIGHT
11.5” L x 11.5” W x 3.0” D
(29.2cm L x 29.2cm W x 7.62cm D)
2.6 lbs. (1.18kg)
INSTALLATION
• See Figure 1 To Set Volume Level
• See Figure 2 For Ceiling Mounting
• See Figure 3,4 For Wall Mounting
+
QUIET
+
+
LOUD
+
VERY LOUD
NORMAL
Figure 1
2

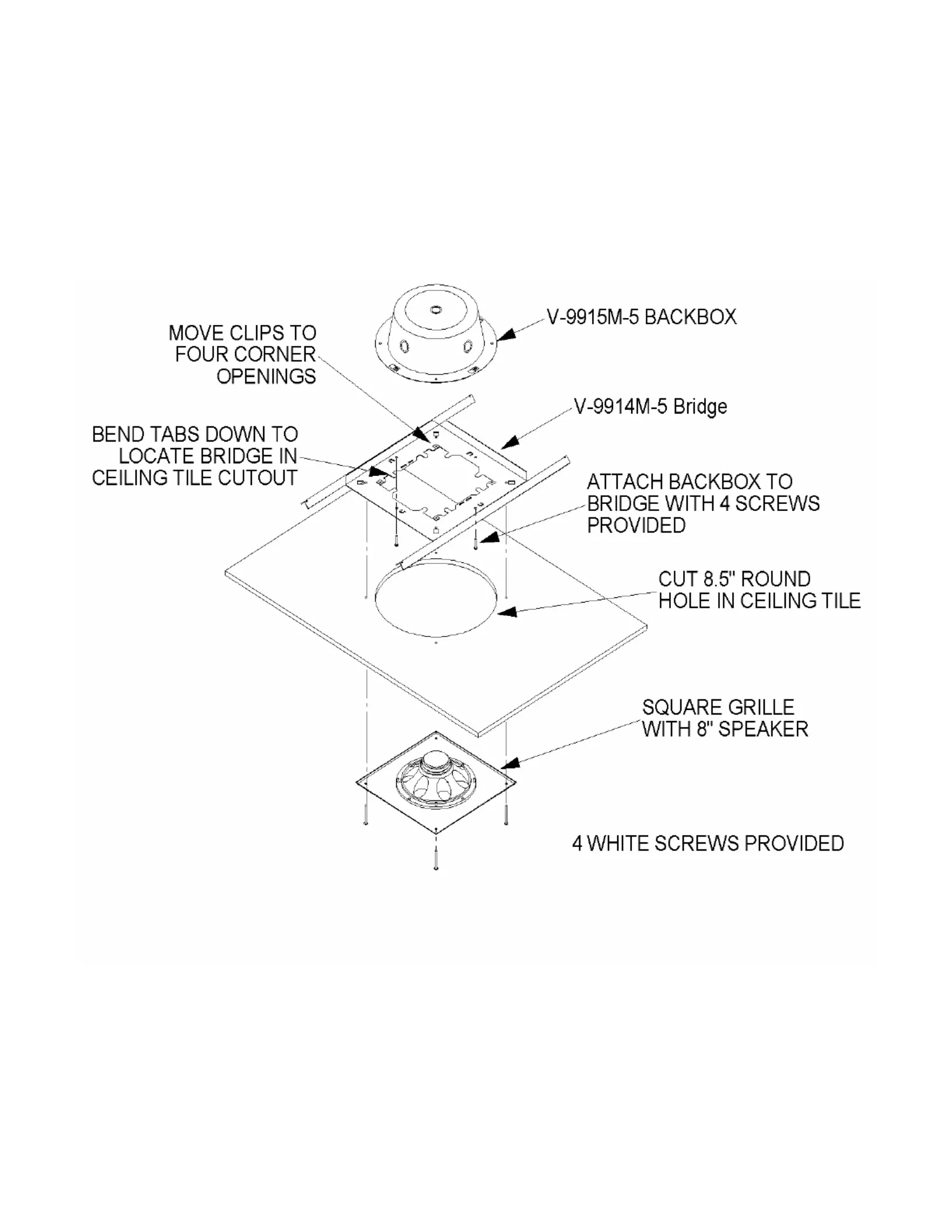

Figure 2: CEILING INSTALLATION INSTRUCTIONS
3

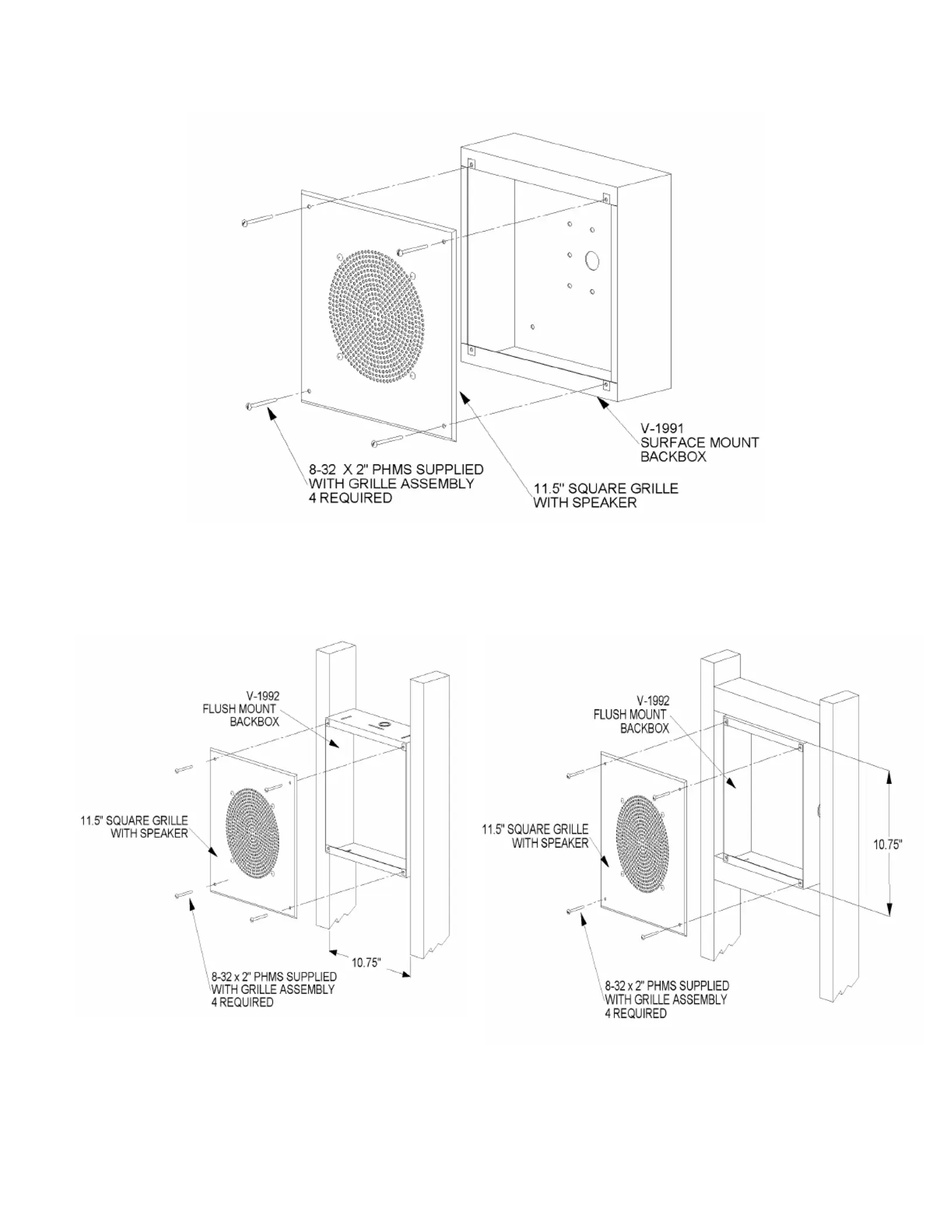

FIGURE 3: SURFACE MOUNT INSTALLATION INSTRUCTIONS
FIGURE 4A,B: FLUSH MOUNT INSTALLATION INSTRUCTIONS
FIGURE 4A FIGURE 4B
ROUGH DIMENSIONS
Product Specifications
| Brand: | Valcom |
| Category: | Speaker |
| Model: | V-CTSQPK |
