Page 1/4
CONTENTS
GETTING STARTED / SYSTEM INVENTORY .......................................................................................................... 2
USING AN OUTBOARD CD/TAPE PLAYER ........................................................................................................... 3
RECHARGEABLE BATTERY KIT ............................................................................................................................. 3
BASIC SYSTEM OPERATION ................................................................................................................................. 4
MINIVOX LITE ACCESSORIES ............................................................................................................................... 4
BATTERY INSTALLATION ..................................................................................................................................... 5
BUILT-IN UHF WIRELESS RECEIVER .................................................................................................................... 6
OPERATING THE WIRELESS MICROPHONE / TRANSMITTER .............................................................................. 7
HAVING TROUBLE W/ YOUR SOUND SYSTEM? ................................................................................................... 8
MINIVOX LITE TECHNICAL SPECIFICATIONS ....................................................................................................... 8
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
100-0169-000/A - 3/08
OWNER’S MANUAL
MiniVox Lite PA System
PORTABLE PUBLIC ADDRESS SOUND SYSTEM
HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE CAUSE
No Sound
(LED off)
• turn POWER switch ON
• charge batteries
No Sound
(LED on)
• turn microphone switch ON
• make sure all cables are completely plugged in
No Sound When Using CD Input • check for output from source
• make sure all cables are completely plugged in
Distorted Sound • lower system volume control
• replace or recharge batteries
Shortened Battery Life • replace worn NiMH batteries
• ‘Cycle’ NiMH batteries
(see page 3)
Unit Turns Off & Back On During Use • batteries are low and need to be replaced
HAVING TROUBLE W/ YOUR WIRELESS SYSTEM?
(Wireless Model Only)
No Sound
(RX Indicator: ON)
• microphone volume control is to low or off
• no mic plugged into belt-pack transmitter
No Sound
(RX Indicator: OFF)
• sound system not turned on
• transmitter power switch turned off
• low battery or no battery in transmitter
• transmitter and receiver are not on the same channel
MINIVOX LITE TECHNICAL SPECIFICATIONS
Rated Power Output 30 watts
Max SPL @ Rated Power 109 dB @ 1 meter
Frequency Response 100 Hz – 15 kHz +/- 3dB
Speaker Type 4.5 inch neodymium woofer
Battery Type 10 ‘AA’ alkaline
Dimensions
(HWD)
5.5 x 5.5 x 6.5” / 13.9 x 13.9 x 16.5 cm
Weight 3.0 lbs / 1.36 Kg
Line Out line level, 3.5 mm
Inputs
Line line level, 3.5 mm
Powered Mic Lo-Z phantom power, 3.5 mm jack
Mic Lo-Z, 1/4” phone
RC-30 – Recharge Kit (optional)
Battery Type 10 ‘AA’ size, NiMH 2.5 AH
Charger AC-30
AC-30 Input 120 VAC, 60Hz, 24 watts max
AC-30/220 Input 220 VAC, 50Hz, 10 watts max
Shipping Weight 2.1 lbs / 1.0 Kg
(Specifications subject to change without notice)
ANCHOR AUDIO CUSTOMER SERVICE
888/444-6077 310/784-2300
www.anchoraudio.com
For Setup & Operation Videos Go To:
www.anchoraudio.com
72
A MESSAGE FROM THE OWNER
Thank you for choosing an Anchor Audio portable sound system. Our products incorporate state-of-the-art design and
the finest quality of materials and workmanship. We’re proud of our products and appreciate the confidence which you
have shown by selecting an Anchor system.
I hope you’ll take a few minutes to review this manual. We’ve incorporated several unique features into our products,
and your knowledge of how to use them will enhance the performance and your enjoyment of the system.
Janet Jacobs – President
on behalf of all Anchor Employees
GETTING STARTED
Please check your new unit carefully for any damage which may have occurred during shipment. Each Anchor product
is carefully inspected at the factory and packed in specially designed boxes for safe transport.
Notify the freight carrier immediately of any damage to the shipping box or product. Repack the unit in the original
box and wait for inspection by the carrier’s claim agent. Notify your dealer of the pending freight claim.
NOTE: All damage claims must be made with freight carrier!
Returning Systems For Service or Repair
For service or repair, please contact the dealer you purchased your system from or Anchor Audio Customer Service at
(800) 262-4671 to obtain a RA
(Return Authorization)
number. All shipments to Anchor Audio must include an RA
number and must be shipped prepaid. C.O.D. shipments will be refused and returned at your expense.
IMPORTANT: Save the shipping box & packing materials,
they were specially designed to ship your unit!
Warranty Registration
Please go to our website
(www.anchoraudio.com)
and select “Warranty Registration”. Completing this online registra-
tion form will activate your limited six-year warranty.
USING YOUR WIRELESS MICROPHONES
After you have set the transmitter channel
(see above)
you are ready to use your wireless microphone:
CAUTION: Harmful feedback may occur when walking in front of a sound system or
speaker with a wireless microphone. Always point microphone away from speakers!
1. Body-pack transmitter users must insert the mic
plug into the transmitter jack marked MIC
2. Turn the transmitter power switch to ON
(The red LED will flash when the mic is turned
on. If the red LED stays on, the battery is low)
3. Turn the MiniVox Lite power switch to ON
4. The RX indicators will light
(one indicator at a
time lights)
when the wireless signal is being
transmitted and received

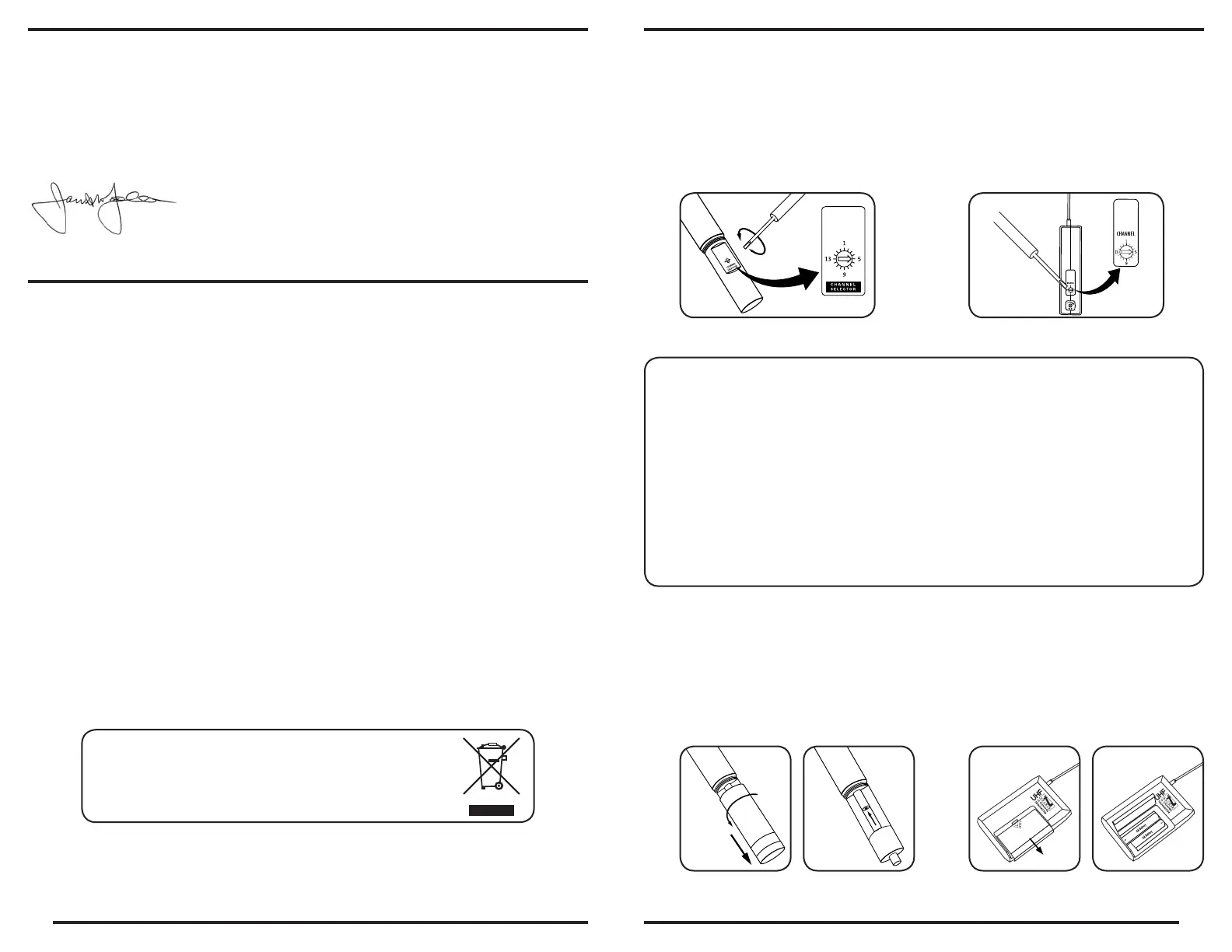

OPERATING THE WIRELESS MICROPHONE / TRANSMITTER
CHANNEL SELECTION - HANDHELD TRANSMITTER
1. Unscrew battery cover on bottom of microphone
2. Set the CHANNEL SELECTOR dial to match the
channel setting of your receiver
3. Replace the battery cover
CHANNEL SELECTION - BODY-PACK TRANSMITTER
1. The channel selection dial is located on the
side of the transmitter
2. Set the CHANNEL selection dial to match
the channel setting of the receiver
REPLACE BATTERY - HANDHELD TRANSMITTER
1. Unscrew battery cover on bottom of microphone
2. Replace old batteries with 2 fresh ‘AA’ alkaline
batteries
3. Replace and tighten the battery cover
REPLACE BATTERY - BODY-PACK TRANSMITTER
1. Slide open battery cover on front of transmitter
2. Replace old batteries with 2 fresh ‘AA’ alkaline
batteries
3. Replace and tighten the battery cover
NOTE: Transmitter power must be OFF when changing batteries!
Waste electrical and electronic products must not be
disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority
or Retailer for recycling advice.
USING AN OUTBOARD CD/TAPE PLAYER
Use the LINE IN input jack to play pre-recorded material through the MiniVox Lite. The MiniVox Lite volume knob
controls both the audio source and microphone levels when used simultaneously.
1. Connect a mini-to-mini
patch cable
(3.5mm
plugs)
to the ‘Line’ or
‘Headphone’ output of
your audio source
2. Connect the other end
to the LINE IN input
jack on the MiniVox Lite
control panel
3. Adjust the volume set-
ting of the audio source
to the desired level
DIVERSITY WIRELESS BY ANCHOR AUDIO
Anchor Audio UHF wireless is a 16 channel, diversity wireless system that utilizes two independent antennae to
receive signals. The diversity feature means the receiver will process the stronger of the two antenna signals, ef-
fectively minimizing dropouts and interference from other transmitting sources. The antennae are mounted in-
ternally so there are no obstructions or risk of damage.
CHANNEL SELECTION - BUILT-IN RECEIVER
Before you can use your UHF wireless system, you will need to select a wireless frequency, set the built-in receiver,
and microphone transmitter, to that channel.
1. Choose from any of the 16 available wireless channels
2. Set the wireless channel selector knob “CHANNEL” to the channel/frequency you have chosen
UHF WIRELESS ACCESSORIES
WH-6000: 16 channel wireless handheld microphone/transmitter
WB-6000: 16 channel wireless body-pack transmitter for hands free microphone
(microphone not included - see below)
CM-60: Lightweight, low-profile collar microphone - works w/ the WB-6000 transmitter
EM-60T: UltraLite “Over-the-Ear” hands free microphone - works w/ the WB-6000 transmitter
LM-60: Lightweight, clip-on lapel microphone - works w/ the WB-6000 transmitter
HBM-TA4F: Ultra-lightweight headband microphone - works w/ the WB-6000 transmitter
36
AUDIO SOURCE
HEADPHONE / OUTPUT
JACK
NOTE: If you experience ongoing interference with your wireless system,
the selected frequency may be incompatible w/ other systems
in the area. Try different channels to find a clear frequency.
UHF WIRELESS CHANNEL SELECTIONRX INDICATOR LIGHTS
MINIVOX LITE
WIRELESS CONTROLS
Model Shown: PB-30U1
RECHARGEABLE BATTERY KIT (OPTIONAL ACCESSORY)
For applications where the MiniVox Lite PA system is used frequently, the RC-30 rechargeable battery kit is available.
This kit includes 10 rechargeable NiMH batteries and an AC charging adapter. When fully charged the batteries pro-
vide approximately 12 hours of operation.
NOTE: New batteries must be charged for 6 hours prior to first use.
Using the RC-30 Recharge Kit
1. Install the 10 rechargeable NiMH batteries into the MiniVox Lite
(see page 4 - Battery Installation)
2. Insert the charger plug into the Input Jack labeled
DC IN on the MiniVox Lite control panel
3. Plug the AC adapter into a power outlet for 4-6 hours to
fully charge
Cycling the batteries
For extended battery life, we recommend you fully charge the batteries once each month during periods of infrequent
use. Always fully recharge batteries before storing.
CAUTION: NEVER recharge other types of batteries. Doing so can result in battery
explosion. Use only rechargeable Nickel-Metal Hydride (NiMH) batteries.
LINE IN
INPUT JACK
SHIELDED
PATCH CABLE*
*CABLE SOLD SEPARATELY
