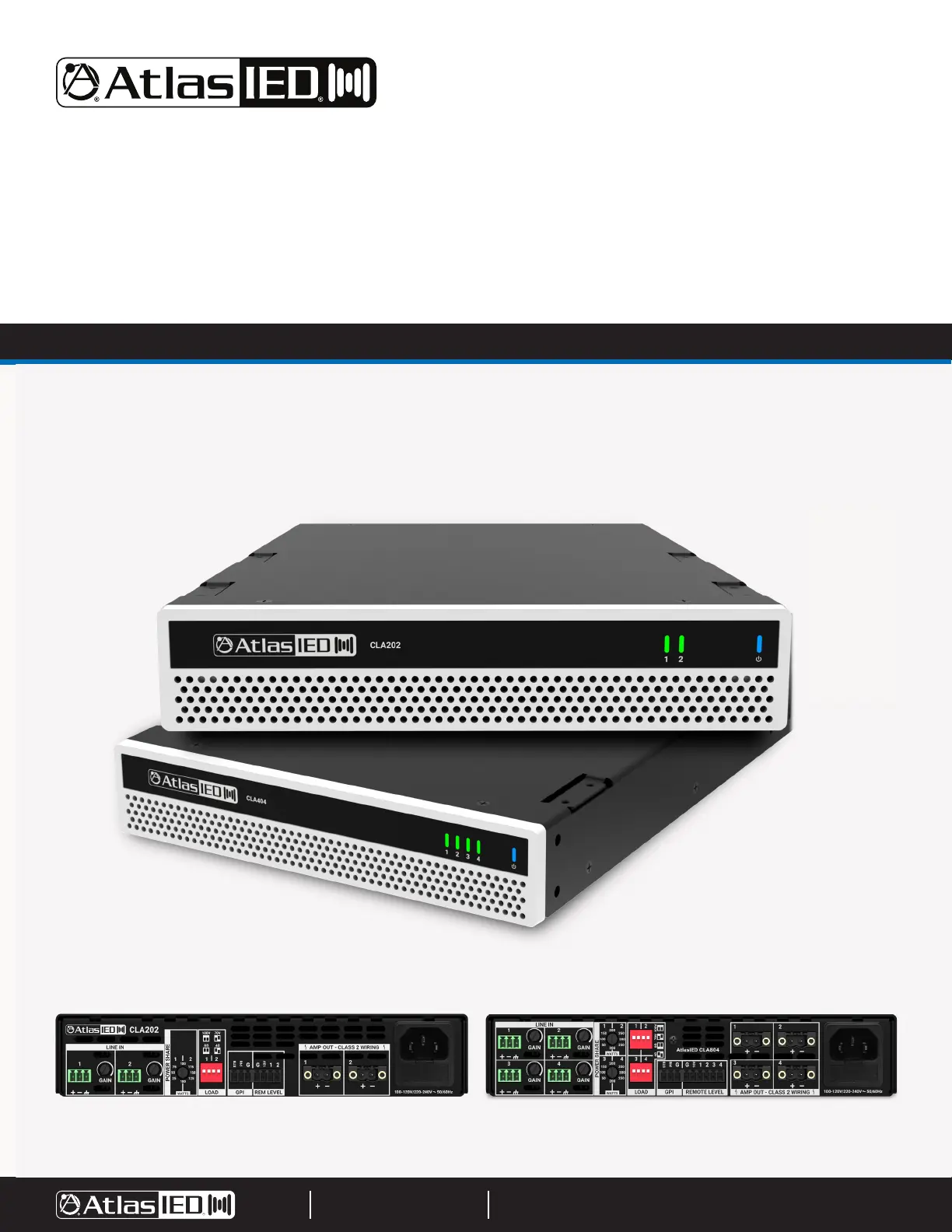

OWNER’S MANUAL
CLA SERIES
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
COMMERCIAL LITE AMPLIFIERS
CLA804 / CLA404 / CLA802 / CLA402 / CLA202
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
OWNER’S MANUAL
CLA SERIES
COMMERCIAL LITE AMPLIFIERS
CLA804 / CLA404 / CLA802 / CLA402 / CLA202
2
TABLE OF CONTENTS
Introduction ...................................................................................................... 3
Key Features .....................................................................................................3
Important Safety Instructions ...................................................................... 4
Front Panel Description .................................................................................6
Rear Panel Description ...................................................................................7
Cabling & Placement of the Amplifier...................................................... 13
CLA Amplifier Operation ............................................................................. 14
Connecting the CLA Amplifier to AC Mains ........................................... 15
Rack Kit Installation ..................................................................................... 17
Specifications ................................................................................................ 18
230V AC Mains Power Specifications .................................................... 29
Dimensional Drawings ................................................................................ 33
Warranty & Service ....................................................................................... 34
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
OWNER’S MANUAL
CLA SERIES
COMMERCIAL LITE AMPLIFIERS
CLA804 / CLA404 / CLA802 / CLA402 / CLA202
3
INTRODUCTION:
Thank you for your purchase of the AtlasIED CLA Series amplifier. The
CLA Series is a high-power amplifier designed for versatility, suitable for
both commercial 25V/70V/100V distributed systems and professional
applications requiring amplification for low impedance loads like 4Ω or 8Ω.
Notably compact and lightweight compared to similar-performing models,
the CLA Series incorporates Class D Output topology, offering the efficiency
of a Class AB amplifier without compromising on sound quality.
The amplifier’s power supply adopts a switch-mode, global auto-sensing
design, ensuring a stable output even in fluctuating power conditions. The
power supply and output stage are meticulously engineered to deliver
exceptional dynamic high output voltage and current to virtually any
loudspeaker load.
Key features of the CLA Series include rear panel detented level controls,
remote level control, GPI control for standby low energy mode, priority
mute, and balanced inputs. The amplifiers also boast a unique output stage
with a low-resistance, direct-coupled thermal transfer design, effectively
maintaining optimal temperature across all loads and output levels.
Additionally, the CLA Series amplifiers are energy-efficient, meeting Energy
Star standards and drawing only 1W of power in standby mode.
Whether your application involves a large distributed constant voltage
sound system or a high SPL sound reinforcement system, the AtlasIED CLA
Series stands as the solution for high-power and cost-effective amplification
needs.
AtlasIED AMPLIFIER POWER SHARE
DESCRIPTION:
The AtlasIED Power Share feature is applicable to amplifiers with two
channels of amplification, including 2 CH and 4 CH amplifiers, albeit
controlled in pairs. Power Share enables the user to allocate a specified
amount of audio amplified power to each channel. This allows for
a deliberate imbalance where one amplifier channel can have more
power than the other. Importantly, Power Share does not require any
external devices like phones, tablets, or computers for configuration,
nor does it rely on APP control software. The control for channel power
is facilitated by a switch conveniently located on the amplifier.
In contrast to traditional amplifier designs where the power supply’s
maximum delivery is determined by the amplifier model’s power rating,
amplifiers with multiple channels that share a common power supply
typically have fixed channel amplifier ratings. For example, a two-
channel amp producing 200W per channel necessitates a 400W power
supply. However, with AtlasIED Power Share technology, a 400W power
supply can be configured using a switch. When selected, this switch
configures the amplifier to allocate 350W of power to Channel 1 and
50W to Channel 2. The combined power of both channels still totals
the maximum 400W from the power supply. Furthermore, individual
channels can still be configured to deliver 200W each if desired.
KEY FEATURES:
• CLA404 / CLA804 Four Amplifier Channels
• CLA202 / CLA402 / CLA802 Two Amplifier Channels
• Individual Channel Load Configurations of 2Ω, 4Ω, 8Ω, 25V, 70.7V, &
100V
• Power Share Per Two Channels (Patent Pending)
• Balanced Inputs
• Priority Mute
• Remote Level Control Per Channel
• Energy Savings Standby
• Rear Panel Attenuators
• Auto Sensing 100V - 240V~ AC Mains Power Supply
• Meets Energy Star Standards 1W Standby Mode
• Convection Cooling In Idle Mode, Fan Assist Under Signal
