IPS-ZC4
IP-to-Analog Controller with 4-Zones
Owner’s Manual
IPS-ZC4
4 Zone Controller
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
Description
The AtlasIED IPS-ZC4 VoIP Zone Controller with Audio-Out enables access to existing paging
loudspeakers through a VoIP phone system. The interface is designed to use a standard paging
amplier with audio inputs and supports paging up to 15 zone groups from a VoIP phone.
Features
• Delayed paging
• Night ringer
• Compatible with IP/PBX servers
• SIP RFC 3261 compatible
• PoE 802.3af enabled
• Dual-speed Ethernet 10/100 Mbps
• 4 paging zones
• 15 paging zone groups
• Page all
• Web-based configuration
• Web-based firmware (upgradeable)
• Connector for external power supply
• Small footprint
Applications
• Education
• Banks or financial institutions
• Court rooms
• Manufacturing warehouses
• Offices
• Indoor only
Mounting
1. On the mounting location, mark and then drill two
3
⁄ " (0.1875") holes for the plastic anchors and 16
screws. The holes should be 3.5" apart and parallel to each other. See the drawing below.
2. Insert the plastic anchors into the prepared holes.
3. Install the #6 screws into the plastic anchors and leave an approximately
1
⁄8" gap from the screw
head to the wall.
4. Determine which sides of the Zone Controller will be facing up, and then slide the Zone Controller
down to latch onto the screws.
3.5" (89mm)
Owner’s Manual
IPS-ZC4
4 Zone Controller
AtlasIED.com – 3 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435

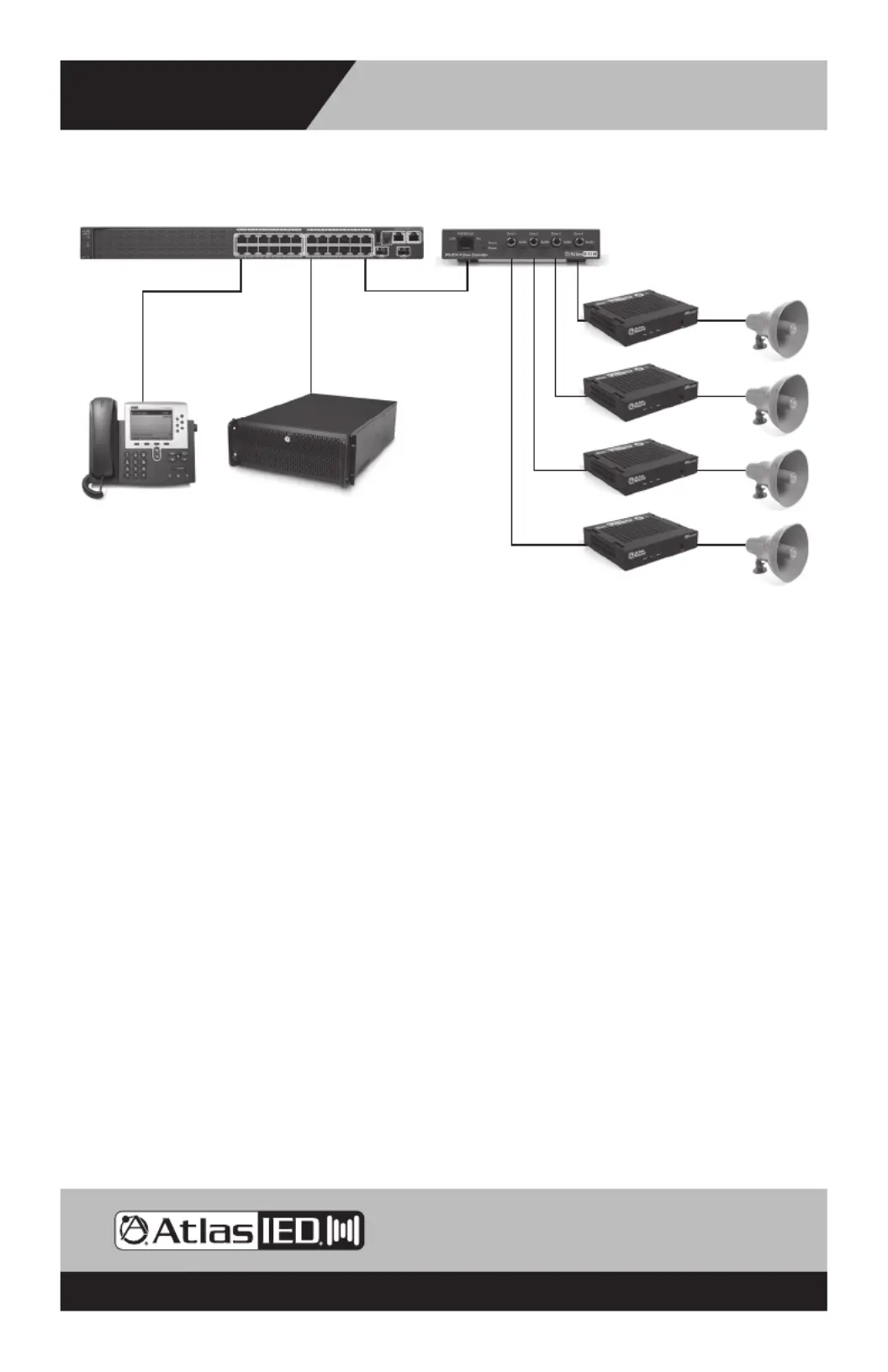

Typical Installation
Specications
Ethernet I/F 10/100 Mbps
Protocol SIP RFC 3261 compatible
Power Input PoE 802.3af or 48VDC
Operating Temperature -30° to 55° C (-22° to 131° F)
Payload Types G711
Regulatory Compliance FCC Class A, UL 60950
Output Signal Amplitudes 2.0 VPP maximum
Output Level +2dBm nominal
Total Harmonic Distortion 0.5% maximum
Dimensions 6.2” x 4.5” x 1.22” (157.48mm x 114.3mm x 30.99mm)
Weight 1.6 lbs. (0.73 kg)
Boxed Weight 1.8 lbs. (0.82 kg)
Warranty 1 year limited
Hardware Bag Contains:
(4) #6 x 1
1
⁄ PH-PN SMS ZP4
(4) #6 Plastic Wall Anchor
IPS-ZC4 4 Zone Controller
IP-PBX Server
PA60G Power Amplifiers AP-15T Paging Horns
IP Phone
Generic PoE Switch
Product Specifications
