Owner’s Manual
TSD-ML11
1x1 Mic/Line Preamp
AtlasIED.com – 1 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
TSD-ML11
1x1 Mic/Line Preamp
with EQ & Mute
Owner’s Manual
TSD-ML11
1x1 Mic/Line Preamp
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
Description
The TSD-ML11 is a high headroom, low noise mic preamp that allows your ‘money channel’ to have
the highest performance possible. Use as a standalone preamp or in conference room systems,
board meetings, courtrooms, council chambers, and public forums system that need mute and push
to talk microphone functions.
The TSD-ML11 features switchable phantom power for powering condenser microphones and
has four EQ cut lters centered at common frequencies to eliminate feedback and control voice
shaping. The variable mic preamp helps further eliminate noise for quiet operation as well as reduces
unwanted coloration and changes in tonality and a 12dB @ 125Hz high pass lter is available on
each mic input to minimize bass rumble and low frequency feedback in the system and ensure
focus and clarity stays on voice sound spectrum. An output limiter/compressor is also included for
system protection to avoid clipping and eliminate distortion. Mic Mute and Mic On control allows
microphones in the system to be push-to-talk enabled or muted for speaker priority.
The TSD-MIX41 is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 2.75")
units are designed to solve some of the common audio system problems in the easiest and in the
most efcient and cost-effective way. All models are made from high quality components and include
removable individual I/O connectors for quick and precise wiring, separate ground terminals for all
I/Os assuring secured connections, and removable level controls that can be replaced with
tamper-proof security covers. The TSDs are highly efcient and meet Energy Star™ standards as one
24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.
Features
• High Quality Microphone Preamp
• Mic/Line I/O via Removable Phoenix Style
Connector
• 125Hz /12dB Low Cut Filter
• Phantom Power
• Four (4) Preset Frequency Notch Filters For
Tone and Feedback Control
• Variable Output Limiter/Compressor
• Mic Mute/Mic On Via Contact Closure
• Input Signal & Peak Indicator LEDs
• High Gain Output for Long Distance
Applications
• Separate Ground Connections
• Cable Management System
• Multiple Mounting Congurations
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel
Controls
• Meets Energy Star™ Standards
• Compact Chassis Design
Audio Applications
• Mic Preamp
• Line Preamp
• Line Driver
• Choirs
• Remote Mic Control
Installation
• Churches
• Restaurants
• Sports Bars
• Schools
• Industrial Facilities
• House of Worship
Owner’s Manual
TSD-ML11
1x1 Mic/Line Preamp
AtlasIED.com – 3 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435

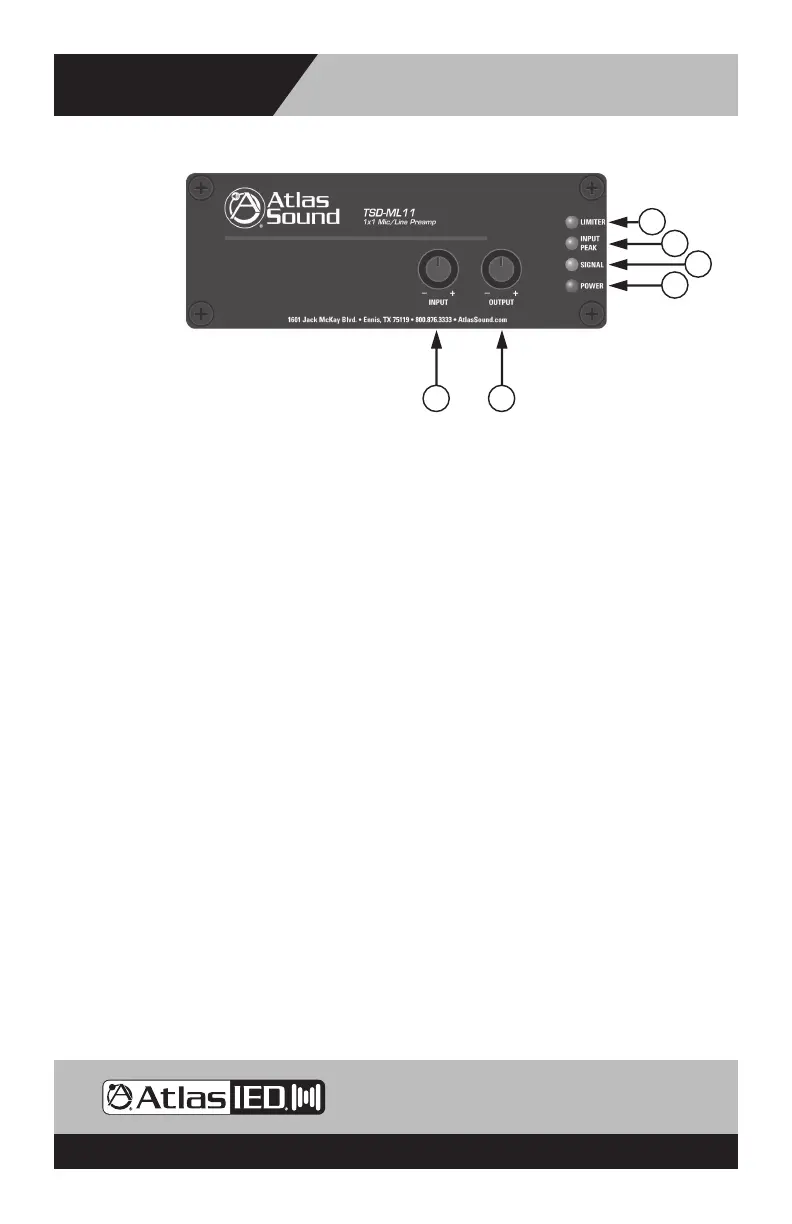

Front Panel Description
1. Input Level Control - Adjusts the gain of the input signal. Turn clockwise to increase the signal
level and counter-clockwise to decrease it. Note: The Input Level Control knob can be removed
and replaced with a supplied security cover to prevent unauthorized adjustment.
2. Output Level Conrol - Adjusts the gain of the output signal. Turn clockwise to increase the signal
level and counter-clockwise to decrease it. Note: The Ouput Level Control knobs can be removed
and replaced with a supplied security cover to prevent unauthorized adjustment.
3. Power LED - Illuminates Blue when 24VDC is present.
4. Input Peak LED - Illuminates Red when the input signal reaches 3dBV below when signal clipping
will occur. Occasional î™ashing is normal but if this indicator is continuously On, then reduce the
input level using the input level controls on the front panel. There is an LED for each input channel.
5. Signal LED - Illuminates Green when the input signal strength reaches 25mV to verify a signal path.
Note: The LED will not illuminate if the output Level is turned Off.
6. Limiter LED - Illuminates Red when input signal is being limited or clipped. Adjustment of the
Limiter feature should be done after the input gain have been properly set. The input should be
adjusted so the Input Peak LED î™ashes on signal peaks and then the Output Limiter control can be
set so this LED î™ashes to indicate that the limiter circuit is active.
5
4
3
6
21
