Page 1/52

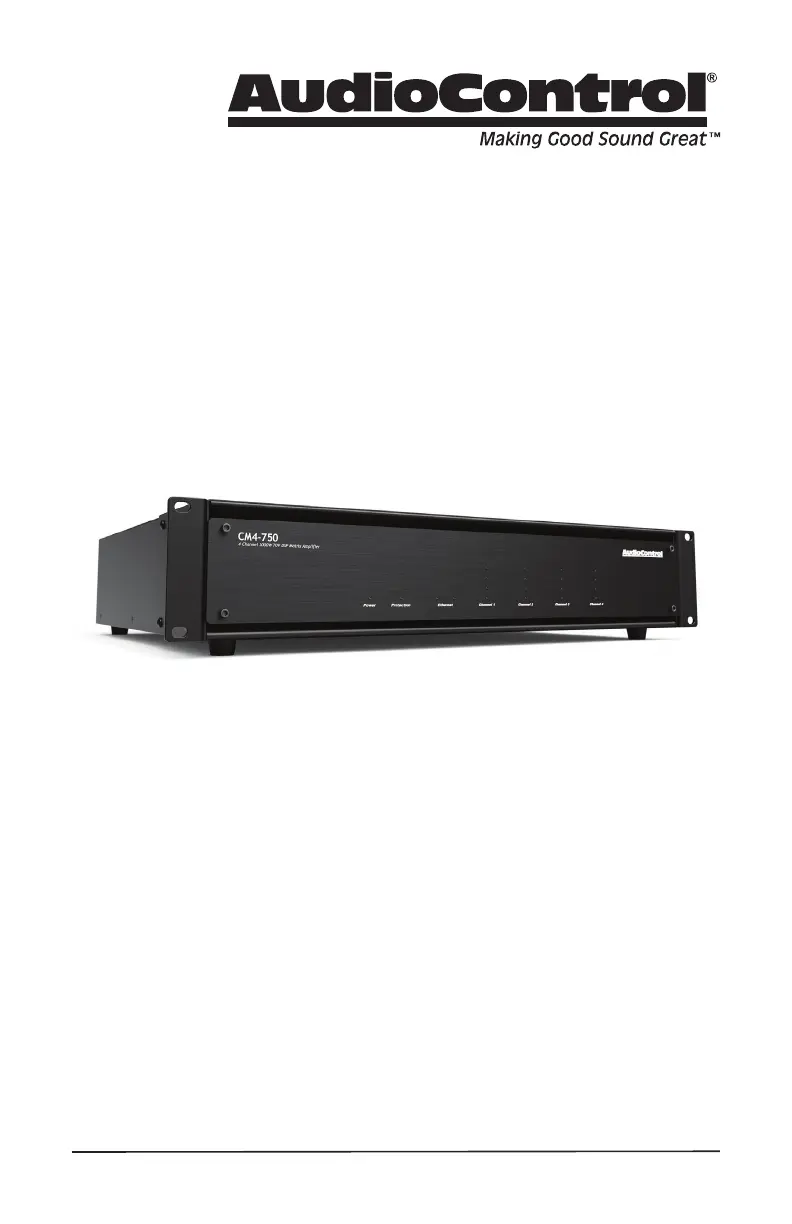

CM Series Ampliers
CM2-750, CM3-750, CM4-750
2, 3, 4 CHANNEL, LOW IMPEDANCE / 70V / 100V
POWER AMPLIFIERS
OPTIONAL DANTE PORT
FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS
Installation Manual
2
Important Safety
Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. In-
stall in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
9. Protect the power cord from being walked
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
10. Only use attachments/accessories speci-
ed by the manufacturer.
11. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
12. Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
13. This apparatus shall not be exposed to
dripping or splashing, and no object lled
with liquids, such as vases or glasses, shall
be placed on the apparatus.
The lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure, that may be
of sucient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user of the presence of import-
ant operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock,
do not remove the top cover. There are no
user-serviceable parts inside. Refer servicing to
qualied personnel.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio com-
munications. However, there is no guarantee
that interference will not occur in a particular
installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment o
and on, the user is encouraged to try to correct
the interference by one or more of the follow-
ing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equip-
ment and the receiver.
• Connect the equipment into an outlet on
a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
CAUTION: Changes or modications to this
device not expressly approved by AudioControl
Inc. could void the user’s authority to operate
the equipment under FCC rules.
Recycling notice: If the time comes
and this apparatus has fullled its
destiny, do not throw it out into the
trash. It has to be carefully recycled
for the good of mankind, by a facility specially
equipped for the safe recycling of electronic
apparatii. Please contact your local or state
recycling leaders for assistance in locating a
suitable nearby recycling facility. Or, contact us
and we might be able to repair it for you.
Important Safety Instructions
3
Installation Manual
CM2-750, CM3-750, CM4-750
CM SERIES
Table of Contents
Table of Contents
Important Safety Instructions ...... 2
Table of Contents ................ 3
Introduction ..................... 4
Features ........................ 4
Complimentary Features .......... 6
Quick View ...................... 7
Front Panel ..................... 7
Rear Panel ...................... 7
Getting Started .................. 8
Installation Examples ............. 8
Front Panel Features .............. 13
Rear Panel Features ............. 15
Speaker and Wiring Impedance ..... 18
12 Volt Trigger Ins and Outs ........ 19
Ventilation ...................... 21
Internet Connectivity and Control ... 22
Acoustics ....................... 36
Equalization ..................... 37
Advanced Discussions ............. 40
Troubleshooting ................. 42
Block Diagram ................... 44
Specications ................... 45
Service ......................... 46
The Warranty .................... 47
The Crossover Two-Step ........... 52
©2021 AudioControl Inc., all rights reserved.
Based on a dream-sequence involving the technical writer, the 1978
FA Cup Final, two pints of lager and a packet of crisps
Network Settings
Default IP Address 192.168.0.249
