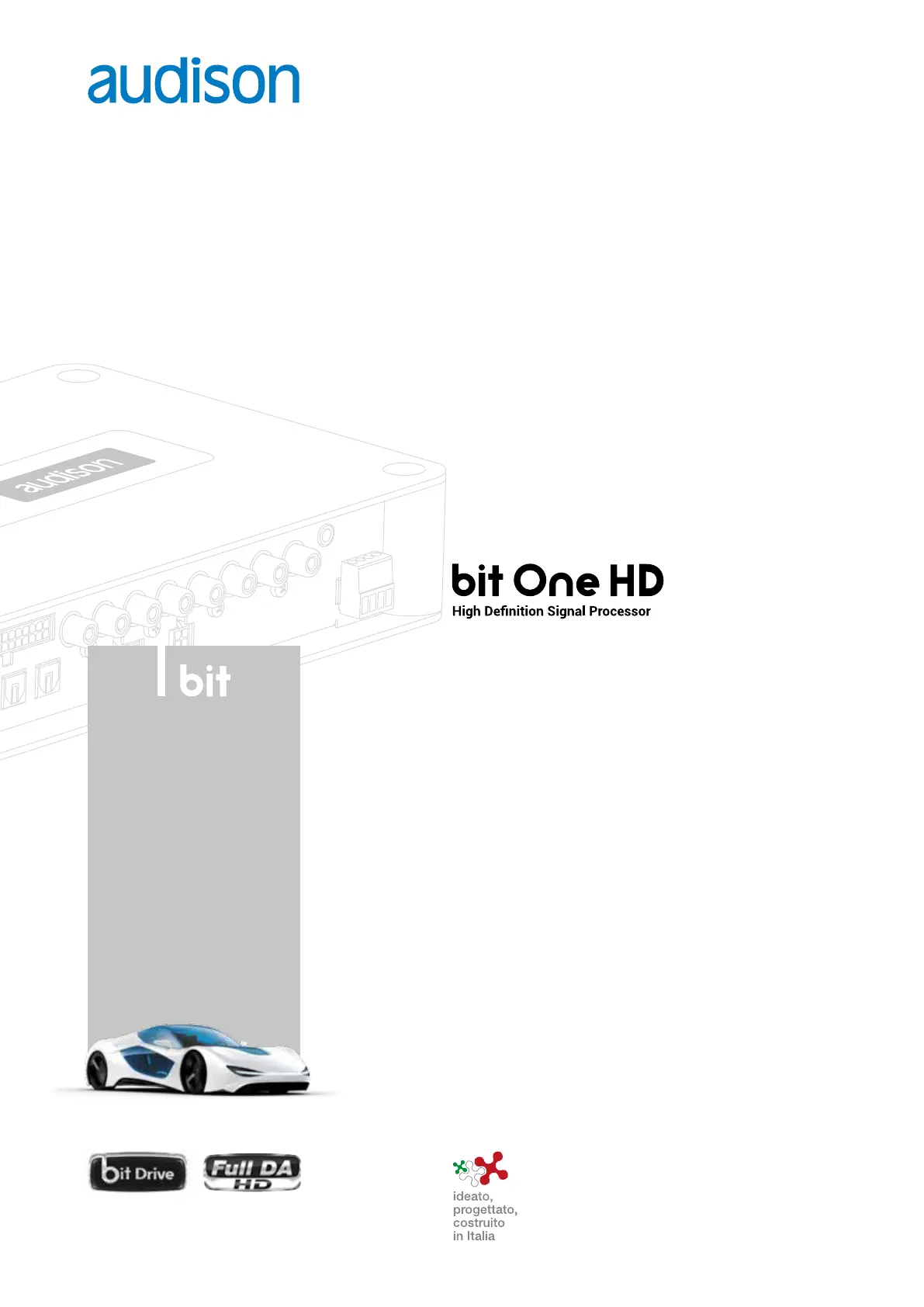

Page 1/60
USER’S
MANUAL
rev. 1.0
USER'S MANUAL
2
bit One HD /
Index
1. PRODUCT DESCRIPTION ..........................................................................................................................................................3
2. PACKAGING CONTENTS ...........................................................................................................................................................3
3. bit One HD AND DRC MP INSTALLATION ............................................................................................................................4
4. CONNECTION PANELS - DESCRIPTION ...............................................................................................................................5
4.1 INPUT SIGNALS ...................................................................................................................................................................5
4.2 OUTPUT SIGNALS ............................................................................................................................................................... 7
4.3 INPUTS - REMOTE CONTROL OUTPUTS AND POWER SUPPLY .............................................................................. 8
5. CONNECTIONS..........................................................................................................................................................................10
5.1 POWER SUPPLY AND REMOTE TURN ON ...................................................................................................................10
5.2 HOW TO TURN THE bit One HD ON/OFF .....................................................................................................................10
5.3 PERSONAL COMPUTER and DIGITAL REMOTE CONTROL (DRC MP) ...................................................................10
5.4 LOW-LEVEL AND DIGITAL INPUT SIGNALS ................................................................................................................11
5.5 HIGH-LEVEL INPUT SIGNALS .........................................................................................................................................12
5.6 OPTICAL 1/OPTICAL 2 DIGITAL INPUT DIGITAL SIGNALS ...................................................................................... 12
5.7 OUTPUT SIGNALS .............................................................................................................................................................14
6. bit One HD SOFTWARE AND DRIVERS - INSTALLATION GUIDE ..................................................................................16
6.1 SOFTWARE INSTALLATION GUIDE ...............................................................................................................................16
6.2 DRIVERS INSTALLATION GUIDE FOR WINDOWS XP, VISTA, 7/8/10 ..................................................................... 18
6.3 bit One HD SOFTWARE UNINSTALL ..............................................................................................................................18
7. bit One HD SETUP WITH PC ..................................................................................................................................................19
7.1 OFFLINE MODE ..................................................................................................................................................................19
7.2 TARGET MODE ...................................................................................................................................................................20
7.3 MASTER LOW-LEVEL INPUTS SELECTION .................................................................................................................22
7.4 MASTER HIGH-LEVEL INPUTS SELECTION ................................................................................................................28
7.5 MASTER OPTICAL 1 INPUT SELECTION ......................................................................................................................34
8. bit One HD INSTALLATION GUIDE USING A PC ................................................................................................................ 37
8.1 FEATURES ...........................................................................................................................................................................37
8.2 MAIN MENU: “FILE” ...........................................................................................................................................................38
8.3 MAIN MENU: “CONFIG” ....................................................................................................................................................40
8.4 MEMORY .............................................................................................................................................................................42
8.5 SELECT A CHANNEL .........................................................................................................................................................43
8.6 CHANNEL MAP ..................................................................................................................................................................43
8.7 FILTER SETTINGS .............................................................................................................................................................44
8.8 SET DISTANCE AND DELAY ............................................................................................................................................46
8.9 EQ SETTINGS .....................................................................................................................................................................48
8.10 OUTPUT LEVEL ................................................................................................................................................................51
8.11 SELECT INPUT .................................................................................................................................................................52
8.12 SETUP ................................................................................................................................................................................52
8.13 DEVICE INFO.....................................................................................................................................................................54
9. TROUBLESHOOTING ...............................................................................................................................................................55
9.1 SYNCHRONIZATION WITH THE PC ...............................................................................................................................55
9.2 BACKGROUND NOISE .......................................................................................................................................................55
9.3 FIRMWARE UPGRADES ....................................................................................................................................................55
9.4 RESCUE MODE ...................................................................................................................................................................57
10. TECHNICAL SPECIFICATIONS ..............................................................................................................................................59
3
USER'S MANUAL
bit One HD /
WARNING: a PC provided with Windows XP, Windows Vista, Windows 7 or Windows 8, operating system, 1.5 GHz
minimum processor speed and 1 GB RAM minimum memory, is required to install the software and setup
the bit One HD.
1. PRODUCT DESCRIPTION
The bit One HD is a digital signal processor developed to obtain outstanding performance from car audio systems.
The main features include 2 optical SP/DIF inputs, 12 analog inputs, 13 digital outputs and Hi-Res 24bit/96kHz
internal signal processing which, along with many other functions make it a powerful and versatile product, ready for
future evolutions.
To this end, several hardware updates have already been planned. These updates will enable the product to adapt
to future technological innovations, providing the ability of interfacing with OEM systems which, at the time of the
product conception, were merely hypothetical.
The all-round software and the endless dedication of the R&D team, aimed at improving and updating the product,
make the bit One HD the reference device on the market, keeping its leadership for many years to come and rewarding
the user with the quality of its sound and with a long-lasting investment.
2. PACKAGING CONTENTS
- Quick Start Guide bit One HD
- bit One HD - Signal Interface Processor
- DRC MP (Digital Remote Control) Control Panel
- Multipolar cable, Speakers Input:
- Multipolar cable, Controls
- RVA cable 4.5 m
- Jack/RCA Stereo Adapter
- N.2 x 5.0 m / 196,85” AC Link (RJ-12) cable
- N.2 x 5.0 m / 196,85” AD Link (LAN class 5S - RJ45) cable
- 1.8 m/ 70,8661” USB cable:
- 4.5 m / 177,16” DRC / AC Link cable
- N. DRC MP holder Kit.
- CD ROM including:
Software bit One HD
This Advanced Manual (.pdf format)
Audio test tracks
- DVD comprising:
Test tracks encoded with Dolby Digital 5.1
- N. 4 4,2 x 32 mm self-tapping, cross-head xing screws
L
R
- Warranty
1/2
- Quick Start Guide DRC MP
