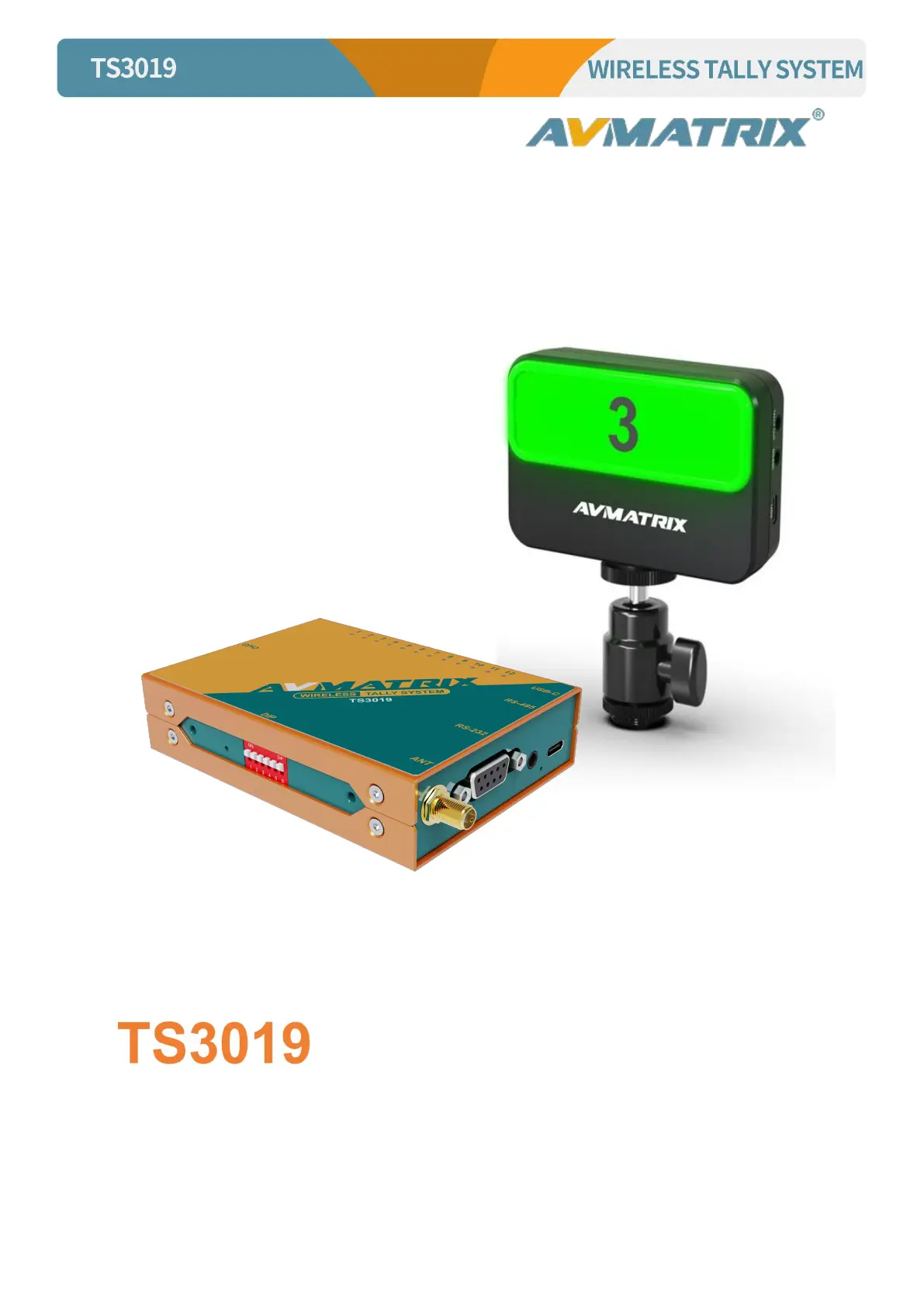

WIRELESS TALLY SYSTEM

USING THE UNIT SAFELY

Before using this unit, please read below warning and precautions which provide important information

concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of

every feature of your new unit, read below manual. This manual should be saved and kept on hand for

further convenient reference.

Warning And Cautions

※ To avoid falling or damage, please do not place this unit on an unstable cart, stand, or table.

※ Operate unit only on the specified supply voltage.

※ Disconnect power cord by connector only. Do not pull on cable portion.

※ Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can cause fire or

electrical shock hazards. Regularly check power cord for excessive wear or damage to avoid possible fire

/ electrical hazards.

※ Do not operate unit in hazardous or potentially explosive atmospheres. Doing so could result in fire,

explosion, or other dangerous results.

※ Do not use this unit in or near water.

※ Do not allow liquids, metal pieces, or other foreign materials to enter the unit.

※ Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you need to

transport the unit, use the original packing materials or alternate adequate packing.

※ Do not remove covers, panels, casing, or access circuitry with power applied to the unit! Turn power

off and disconnect power cord prior to removal. Internal servicing / adjustment of unit should only be

performed by qualified personnel.

※ Turn off the unit if an abnormality or malfunction occurs. Disconnect everything before moving the unit.

Note: due to constant effort to improve products and product features, specifications may change without

notice.

CONTENT

1.Brief Introduction .................................................................................................................................1

1.1 Overview ..................................................................................................................................1

1.2.Main Features..........................................................................................................................1

2.Interfaces............................................................................................................................................ 2

2.1 Interfaces ..................................................................................................................................2

2.2 GPIO Definition ........................................................................................................................4

2.3 RS-485 Definition .................................................................................................................... 5

2.4 Transmitter GPIO input interface diagram(Tally box) ............................................................. 6

2.4 Tally output interface diagram(Tally lamp) ..............................................................................6

3.Specification ....................................................................................................................................... 6

4.DIP Functions ..................................................................................................................................... 8

5.Operation Instruction ........................................................................................................................ 10

5.1 Wireless Tally connection ......................................................................................................10

5.2 Wired Tally Connection......................................................................................................... 13

5.3 Remote serial control (PTZ camera remote control) ............................................................ 13

6. Accessories ..................................................................................................................................... 13
