USER MANUAL

Ultra Slim 70m (100m HD) 4K60 4:4:4, HDR HDBaseT Extender

Audio Extraction, EDID Management, Scaling & Ethernet

AC-EX70-444-KIT

Page 1

• HDMI 2.0(a/b)

• 18Gbps Bandwidth Support (Using ICT)

• Ultra Slim (.47 inch/12mm)

• Up to 4K60 4:4:4 Support

• Full HDR Support (HDR 10 & 12 Bit)

• HDR, HDR10+ and HLG Support

• 4K --> 1080P Down-scaling for mixed systems

• EDID Management and EDID emulate

• 4K & HD Test Patterns built into Tx and Rx for

troubleshooting

• Ethernet Hub Capability

• L/R Audio Extraction on Tx and Rx

• HDCP 2.2 (and all earlier versions supported)

• CEC Pass Through

• 3D Support

• 100M (330ft) on 1080P (Cat6a)

• Up to 70m (230ft) on 4K (up to 4K60 4:4:4, HDR) (Cat6a)

• Bi-directional 48v PoH (Power Over HDBaseT, only one

Power Supply Needed)

• I-Pass Feature for control system "pass-through"

• 3-20v protection circuit built in for safe IR transport

• Bi Directional RS232 Transport

• LED Status, Link, Power indication lights

• Use single UTP/STP LAN cable (CAT-5E/6A) with

substitute HDMI cable to achieve long distance

transmission.

• Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1,

Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master

Audio, Atmos on HDMI

• ESD protection circuitry (Inputs & Outputs) to 7KV

• Can Cascade

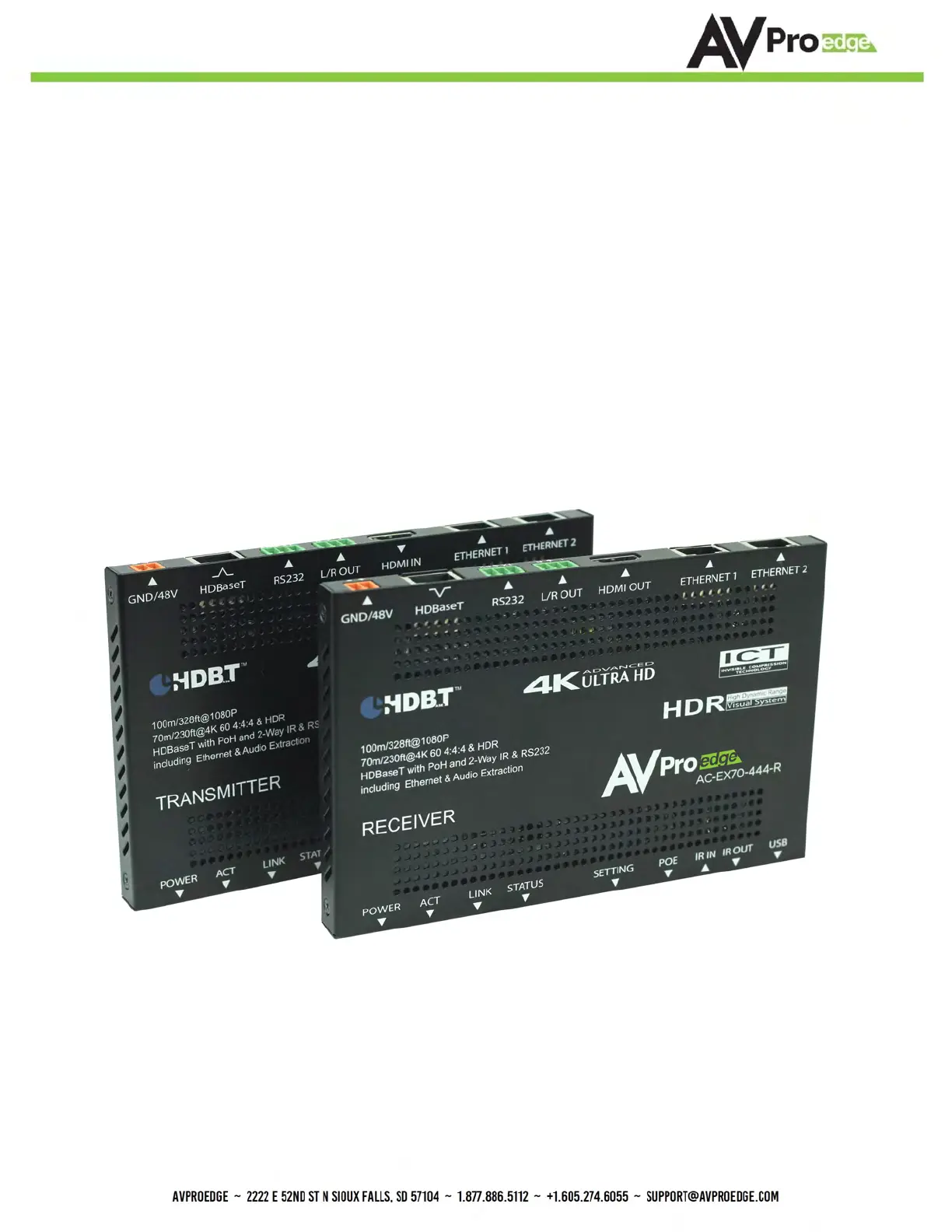

• AC-EX70-444-T (Transmitter)

• AC-EX70-444-R (Receiver)

• 48V Power Supply (One supplied)

• 1 x IR Tx Unit

• 1 x IR Rx Unit

• 4x 3 Pin Terminal blocks for Audio and

RS232 Ports

• Mounting Brackets

Model Numbers:

• AC-EX70-444-T ~ HDBaseT Transmitter w/IR and RS-2

• AC-EX70-444-R ~ HDBaseT Receiver w/ IR and RS-232

Features

Whats in the box

*NOTE: Optional 3PIN to STEREO Audio

Cables available for purchase "AC-

CABLE-3PIN-2CH"

AVPro Edge presents its first 18Gbps over copper extender. Using ICT (Invisible

Compression Technology) we have achieved what was thought to be

impossible. We can deliver a virtually lossless high bandwidth 4K HDR signal

with support for all signals up to 18Gbps. Deep Color and HDR Metadata

remain intact making the transmission free of artifacts like banding. Other

similar devices will deliver a sub-par image that has very visible banding and

color shifting.

AC-EX70-444-KIT

Page 2

AC-EX70-444-KIT

Page 3

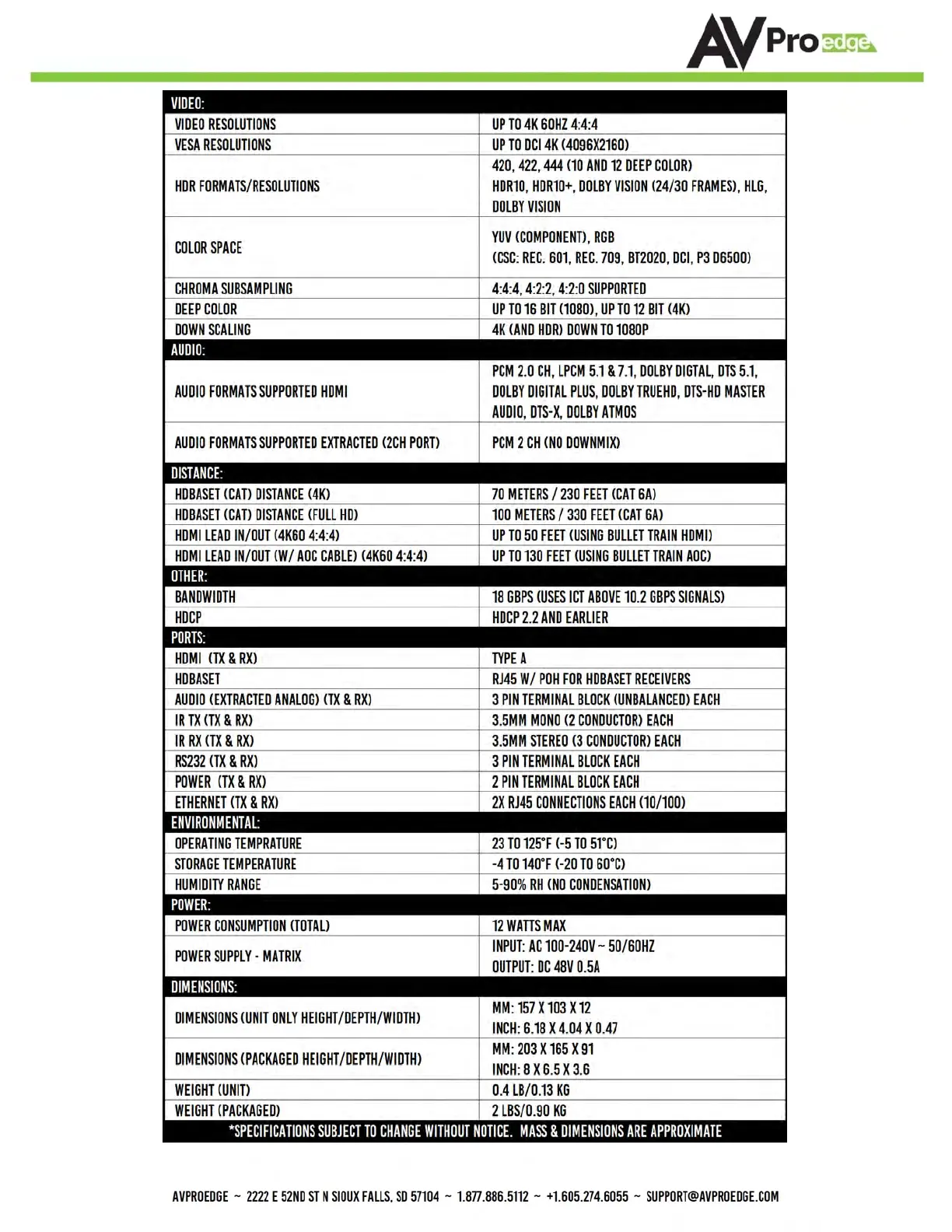

Product Specifications

Brand:	AVPro Edge
Category:	Audio/video-converter
Model:	AC-EX70-444-KIT-TAA
