Page 1/5

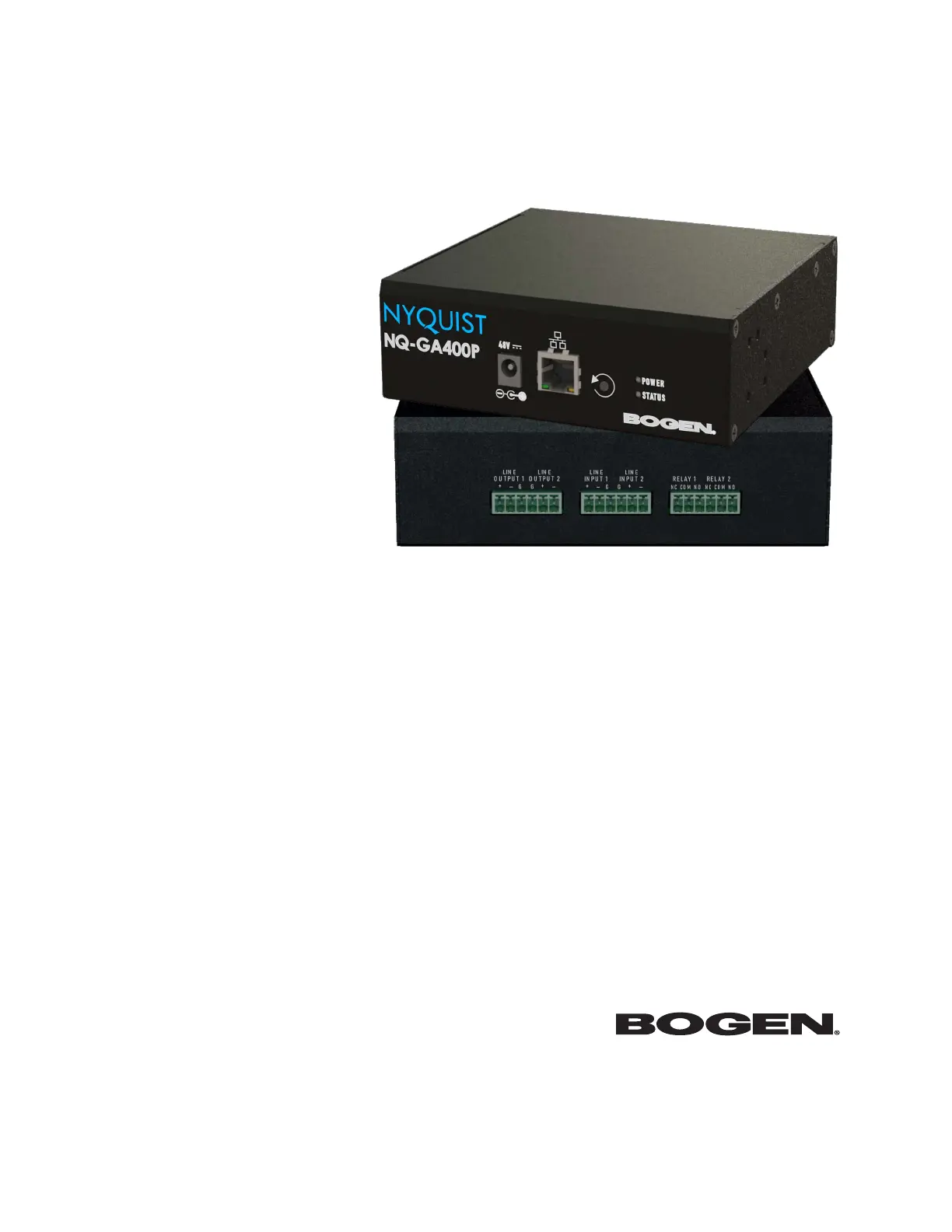

2-Channel AoIP Gateway
Configuration Guide
NQ-GA400P
© 2021 Bogen Communications LLC
All rights reserved
740-00163B
230913
i
Contents
Configuring the Nyquist AoIP Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Using the Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Standalone Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Updating Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Network Settings Tab Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Configuration Settings Tab Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Standalone Operation Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Accessing Log Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Setting DSP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Setting the Channel Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Adjusting Volume Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Knob Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Signal Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Muting a Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Adjusting Input Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting Gain Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
High/Low Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Parametric EQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Signal Present. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Appendix A: Bogen Digital Certification Authority ................................................... 35
Installing the Bogen Digital Certification Authority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Installing Certification Authority on Windows System . . . . . . . . . . . . . . . . . . . . . . . . .35
Installing Certification Authority on Mac System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Installing Certification Authority on an Android Device . . . . . . . . . . . . . . . . . . . . . . . .37
Installing Certification Authority on an iOS Device . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Viewing the Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
1
Configuring the Nyquist AoIP Gateway
The Nyquist GA400P AoIP (Audio over IP) Gateway provides the ability to receive an
analog signal, convert it to a digital signal, and send it to a partner device across a net-
work. Alternatively, it can receive a digital signal over a network, convert it to an analog
signal, and play it back through the line-level output.
Used in conjunction with other AoIP Gateway devices—or other systems offering similar
SIP-related capabilities—this highly flexible device provides the critical function of con-
verting analog signals (e.g., voice or music) to or from digital signals. For example, with
the use of such additional components as preamplifiers and amplifiers, this gateway
device allows you to:
• Transmit audio to a remote device on the network.
• Send and receive announcements over the network.
A two-second press of the appliance’s Reset button reboots the device. If you press the
Reset button for 10 seconds, the appliance returns to the factory default configuration
settings. Returning to the default configuration settings does not change the appliance’s
firmware.
The following sections describe the process for manual configuration. For information
about using Nyquist’s automatic configuration process, refer to the appropriate Nyquist
System Administrator Guide.
Note: Do not use third-party browser extensions with the Nyquist user interface.
To access the appliance’s Web-based user interface (UI):
1 Before accessing the web UI for the first time, the Bogen Certification Authority (CA)
digital certificate must be installed on the client. This certificate can be downloaded
from any Nyquist appliance and enables your browser to recognize the Nyquist web
application as a trusted site.
For details on how to download and install the certificate to your client computers,
see "Installing the Bogen Digital Certification Authority” on page 35.
2 Access the appliance’s web UI by doing one of the following:
a) On your web browser, enter the IP address for the appliance as the URL.
b) From the Nyquist server’s web UI navigation bar, select Stations, select Stations
Status or Appliance Status, navigate to the device that you want to configure,
and then select the Link icon.
