Explorer
TM
TV Accessory – Soundbar Mount
Assembly Instructions
Included:
Model: ETCSM-SB
031-11269
Rev .B –
12.08.22
Mount is compatible with soundbars featuring
mounting holes spaced between 4.5” and 18” apart.
(a) For soundbars with threaded
holes install the set screws.
(b) For soundbars with keyhole slots, insert the
Phillips screw into large opening and slide
up into smaller area.
1. Prepare the soundbar by attaching the hardware that is appropriate for the type of
mounting holes:

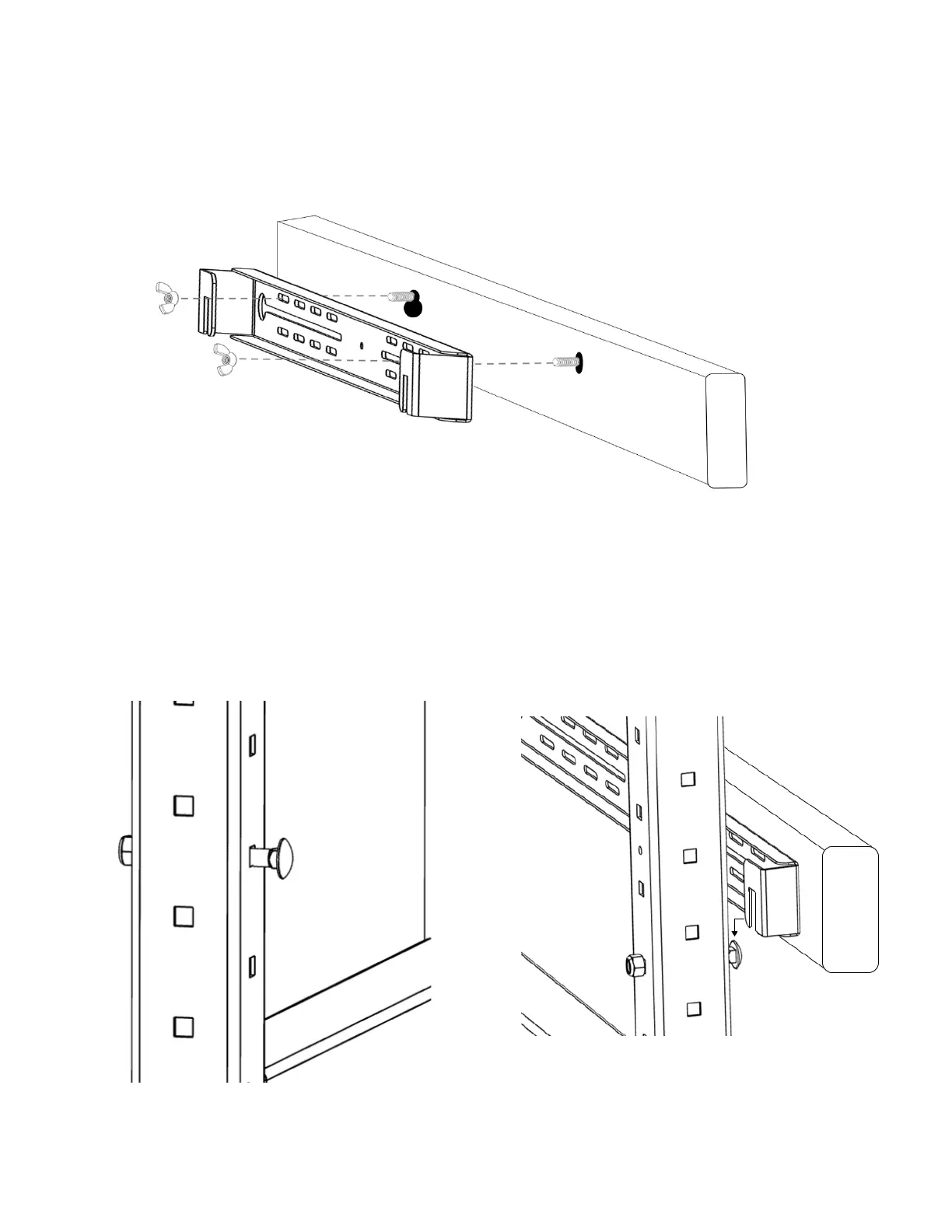

2. While the mounting bracket is still separate from the cart, guide the attached
screws through openings in the bracket, then secure with wingnuts.
3. Insert the carriage bolts at desired
height on the frame, but do NOT
completely tighten the bolts.
4. Slide the bracket with soundbar
attached over the carriage bolts,
then tighten nuts with wrench.
