Page 1/40

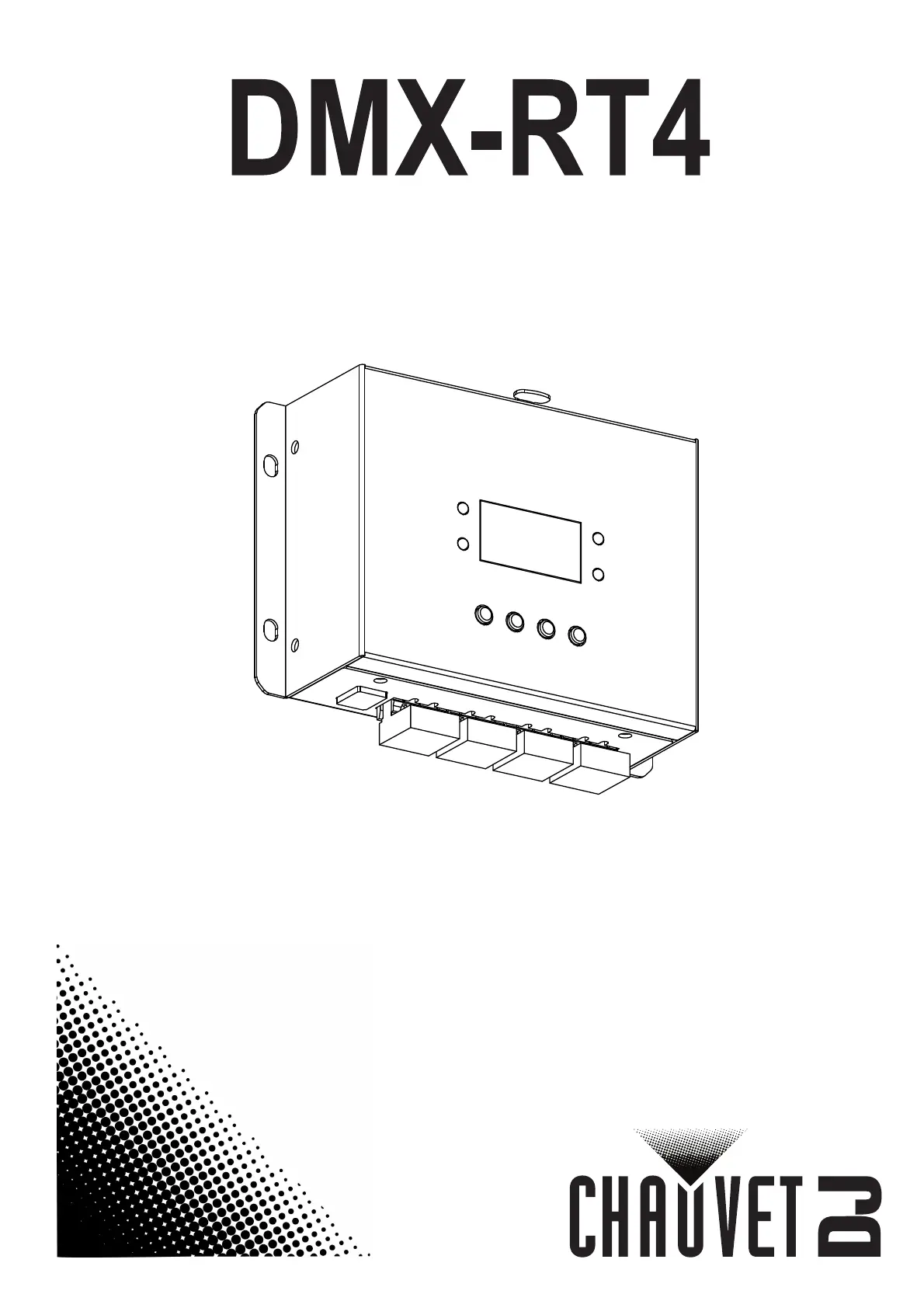

Quick Reference Guide
1
EN
QUICK REFERENCE GUIDE
DMX-RT4 QRG Rev. 1
About This Guide
The DMX-RT4 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX
values. Download the User Manual from www.chauvetdj.com
for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration
.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us
at the end of this QRG for contact information.
What is Included
To Begin
Unpack the DMX-RT4 and make sure all parts have been received in good condition. If the box or contents appear
damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the
decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain
or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Never connect this product to a dimmer or rheostat.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect
the product from power via breaker or by unplugging it.
• DMX-RT4
• External power supply
• Quick Reference Guide
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
EN
2
DMX-RT4 QRG Rev. 1
QUICK REFERENCE GUIDE
Product Description
The DMX-RT4 is a rugged and compact DMX recording device with trigger-able playback. The device connects to
external audio systems and can
copy, backup, and transfer show files. The DMX-RT4 also includes a DC power out for
sensors that require DC power to operate.
Status Indicator Lights
Color Status Function
Green
Steady File is playing
Blinking Show is recording
Blue
Steady Trigger has been activated
Blinking DMX input detected
Red
Steady Power ON
Blinking N/A
Yellow
Steady SD activity in progress
Blinking SD activity in progress
DMX out
Phoenix Connectors/
Triggers
Mounting points
OLED screen
Status
indicator
lights
DMX in
DC power in
Menu
buttons
Audio out
USB port
