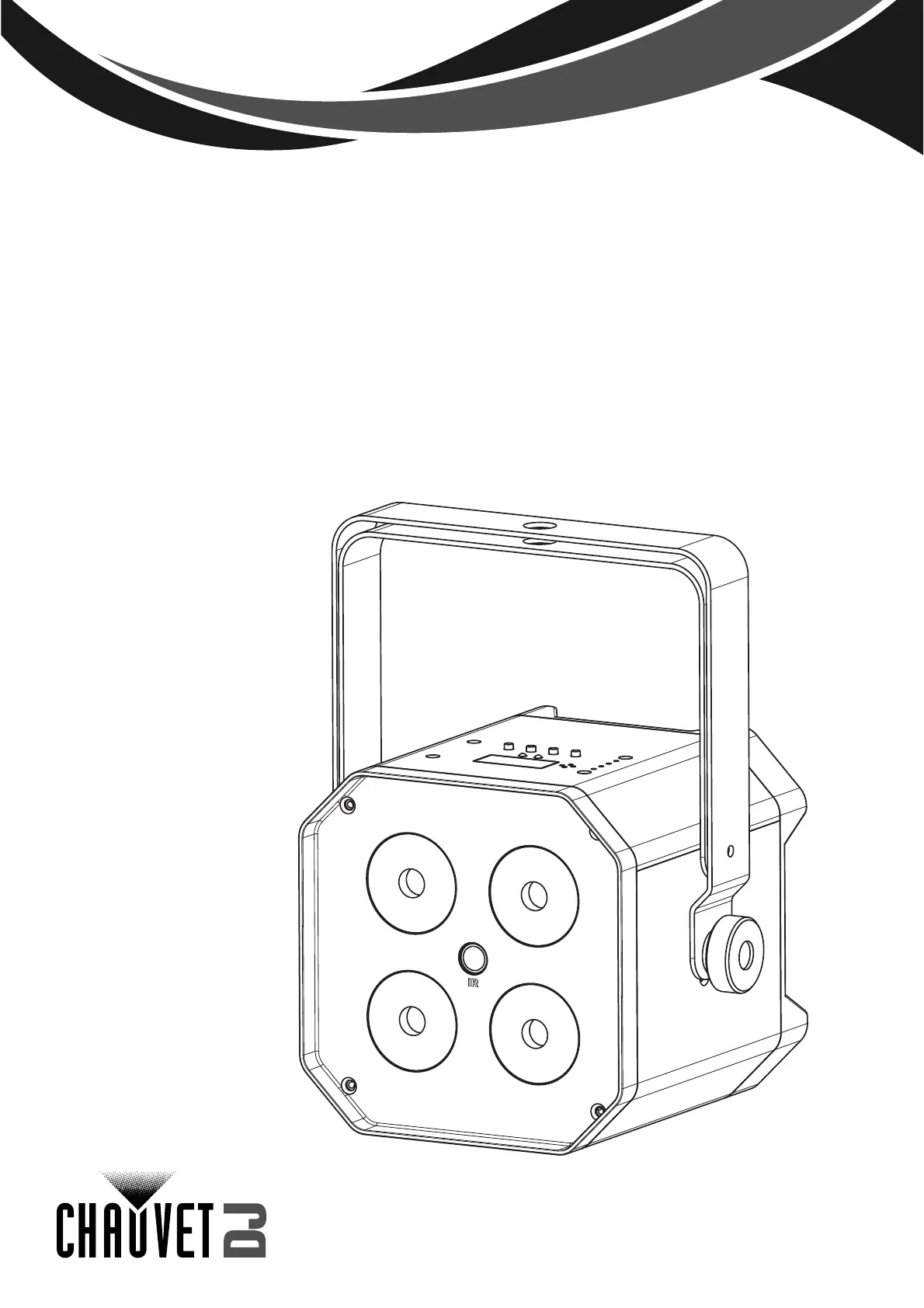

Quick Reference Guide
EZLink Par Q4BT ILS
English EN
Español ES
Français FR
Deutsch DE
Italiano IT
Nederlands NL
1
EN
QUICK REFERENCE GUIDE
EZLink Par Q4BT ILS QRG Rev. 1
About This Guide
The EZLink Par Q4BT ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu
options, and DMX values. Download the User Manual from www.chauvetdj.com
for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration
.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• This product must be charged under supervision only. NEVER leave it unattended or unmonitored while
charging.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the
decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain
or moisture.
• This product is intended for floor mounting only. Do not hang overhead.
• Always place this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surface.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect
the product from power via breaker or by unplugging it.
EN
2
EZLink Par Q4BT ILS QRG Rev. 1
QUICK REFERENCE GUIDE
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
To Begin
Unpack your EZLink Par Q4BT ILS and make sure you have received all parts in good condition. If the box or contents
appear damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
Power Linking
It is possible to link up to 16 EZLink Par Q4BT ILS products at 120 V or 29 products at 230 V. Never exceed this number.
Power-linking cords can be purchased separately.
Fuse Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same
type and rating.
5. Re-insert the fuse holder and reconnect power.
Battery Power
The EZLink Par Q4BT ILS comes with a rechargeable lithium battery for cable-free operation.
Charging the Battery
The battery charges whenever the EZLink Par Q4BT ILS is plugged into a power source using the included power cord. If
the product is plugged in and not in operation, make sure the product is turned off.
Battery Life Indicator
The indicators on the LED Menu Display show how much battery life remains available. The drawing below provides a
key to reading the battery life indicators.
Battery Run Time
• EZLink Par Q4BT ILS
•Power cord
• Quick Reference Guide
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• The LED indicator light will flash if you overpower your units.
• DO NOT use the EZLink Par Q4BT ILS on full power mode (all LEDs at 100%) while it is being
charged/plugged into a power source, as the unit will get extremely hot.
Maximum Run Time (all colors on) Maximum Run Time (single color on) Recharge Time
Up to 8 hours Up to 20 hours 4 hours
100% 75% 50% 25%
