Page 1/3
1-800-526-0242
sales@comprehensivecable.com
www.comprehensivecable.com
Pro AV/IT 26 AWG High Speed HDMI Cable with ProGrip
®
,
SureLength
®
, Color Identification
HDMI CABLES
Features
• Ultra HD resolution, 4k x 2k at 50/60 (2160p), up to 32
audio channels and
• 21:9 aspect ratio
• True Professional grade heavy-duty 24 or 26 gauge
oxygen-free construction
• ProGrip connector utilizes up to 16 lbs of retention force
to help keep connector in place
• High Speed Tested up to 31 Gbps @ 3ft
• 1080p up to 85ft without a booster (actual results may
vary)
• SureLength indicators on the connector heads make it
easy to organize for installations
• Simultaneous delivery of dual video streams to
multiple users on the same screen
• Simultaneous delivery of multi-stream audio to
multiple users (Up to 4)
• Pro Grade Triple Shielding
• Ethernet Capable
• 3D Ready
• Supports Deep Color and x.v. Color
• 5.1/7.1 Lossless Dolby TrueHD and DTS-HD
Surround Sound
• Audio Return Channel & Lip-sync
• ATC Certifi ed
• Molded 24k Gold Plated HDMI male connectors on
each end
• X-tra Flex CL3 rated jacket for easy installation
Comprehensive Pro AV/IT Series HDMI cables are the industries only true professional commercial grade HDMI cables with
professional features not found anywhere else.
HD-HD-18PROBLK 1.5ft.
HD-HD-3PROBLK 3ft.
HD-HD-6PROBLK 6ft.
HD-HD-12PROBLK 12ft.
HD-HD-15PROBLK 15ft.
HD-HD-20PROBLK 20ft.
HD-HD-25PROBLK 25ft.
HD-HD-35PROBLK 35ft.
HD-HD-50PROBLK 50ft.
HD-HD-75PROBLK 75ft.
HD-HD-100PROBLK 100ft.
*Substitute BLK (Black) for BLU (Blue), WHT (White), GRY (Grey), RED (Red), GRN (Green), and ORG (Orange).
Not all lengths are avaiable in all colors.
1-800-526-0242
sales@comprehensivecable.com
www.comprehensivecable.com
HDMI CABLES
• Connector Type 1: HDMI Male w ProGrip
• Connector Type 2: HDMI Male w ProGrip
• Bandwidth or Speed: >15Gbps@3 meters
• HDMI 2.0: Yes
• Resolution: Up to 4k X 2k
• Gauge: 26awg up to 25 ft. 24awg 35ft and up
• Center Conductor: 99.9% High Purity Copper
• Connector Finish: 24K Gold Plated
• Shielding: Triple Shielded, Inner 100% Aluminum Mylar
Wrap, Outer 100% Aluminum Mylar Wrap, 85% Tinned
Copper Braid
• Jacket Type: Xtra-Flex PVC
• Jacket Color: Black, Blue, Gray, White, Green, Red, Orange
• Outer Diameter: 26awg: 8.5mm 24awg: 9.0mm
Specifications
• HDCP and CEC Compliant: Yes
• Category 2 Certified: Yes
• Ethernet Capability: Yes
• Supports Audio Return Channel: Yes
• 3D Ready: Yes
• Longer Distance Capability: Yes
• UL Rated: Yes
• UL Rating: CL3
• RoHS Compliant: Yes
• Temperature Rating: 75 deg C
• Voltage: 30V
• Warranty: Lifetime
Pro AV/IT 26 AWG High Speed HDMI Cable with ProGrip
®
,
SureLength
®
, Color Identification
Pro AV/IT HDMI Cables Tested Speed, Resolution and Distances
*Lengths shown are actual results using Eye Pattern Test or real word Use Tests. Use
tests performed with a Sony PS3 (CECH-3012B) and Hitach TV (UT42-Mx08CB) @ 12 Bit.
Actual speeds/distances may vary depending upon equipment used.
1-800-526-0242
sales@comprehensivecable.com
www.comprehensivecable.com
HDMI CABLES
Pro AV/IT 26 AWG High Speed HDMI Cable with ProGrip
®
,
SureLength
®
, Color Identification

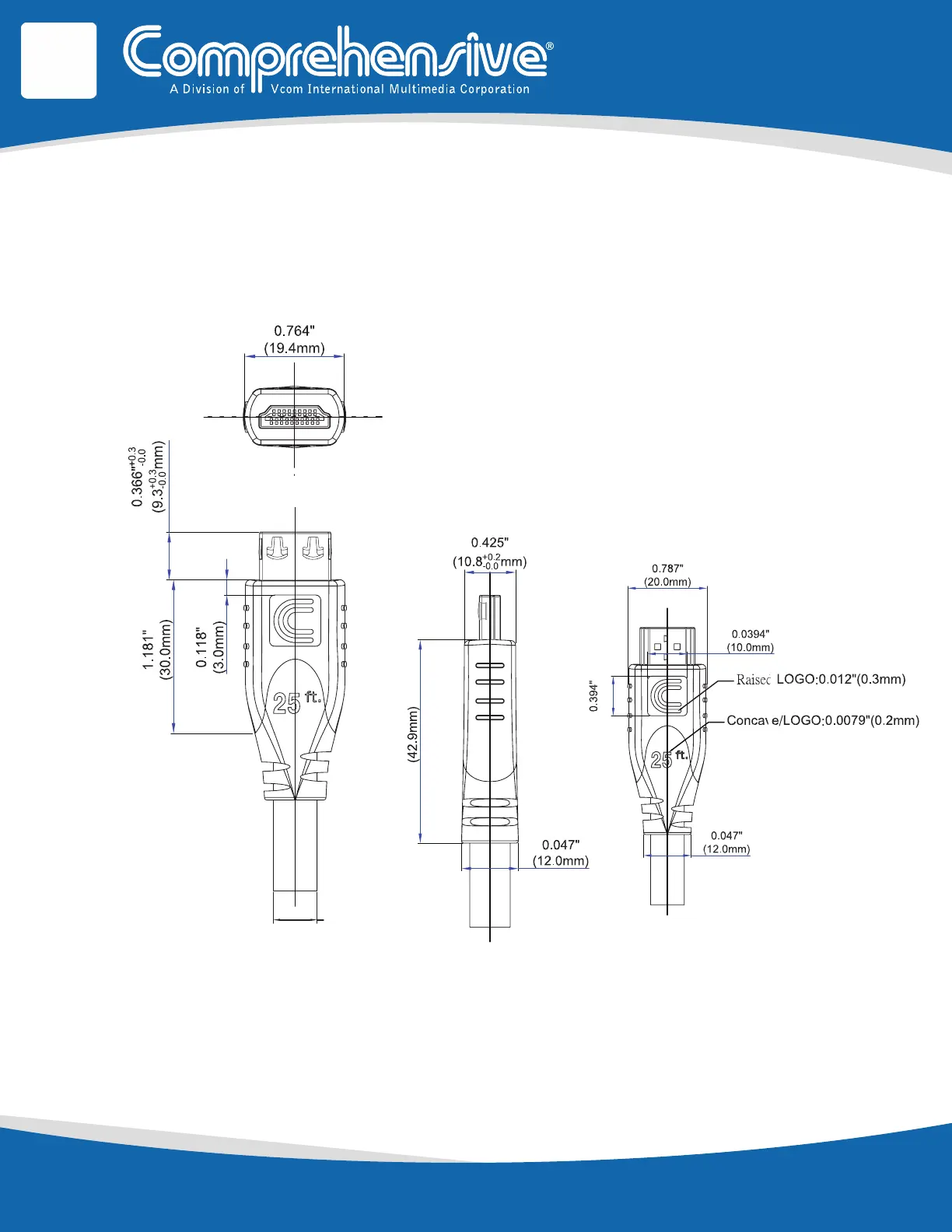

Lengths
26
awg
0.335”
(8.50mm)
24
awg
0.354”
(9.0mm)
1.688”
(10.01mm)
Product Specifications
| Brand: | Comprehensive |
| Category: | Cables for PCs and peripherals |
| Model: | HD-HD-75PROBLK |
