- 1 -

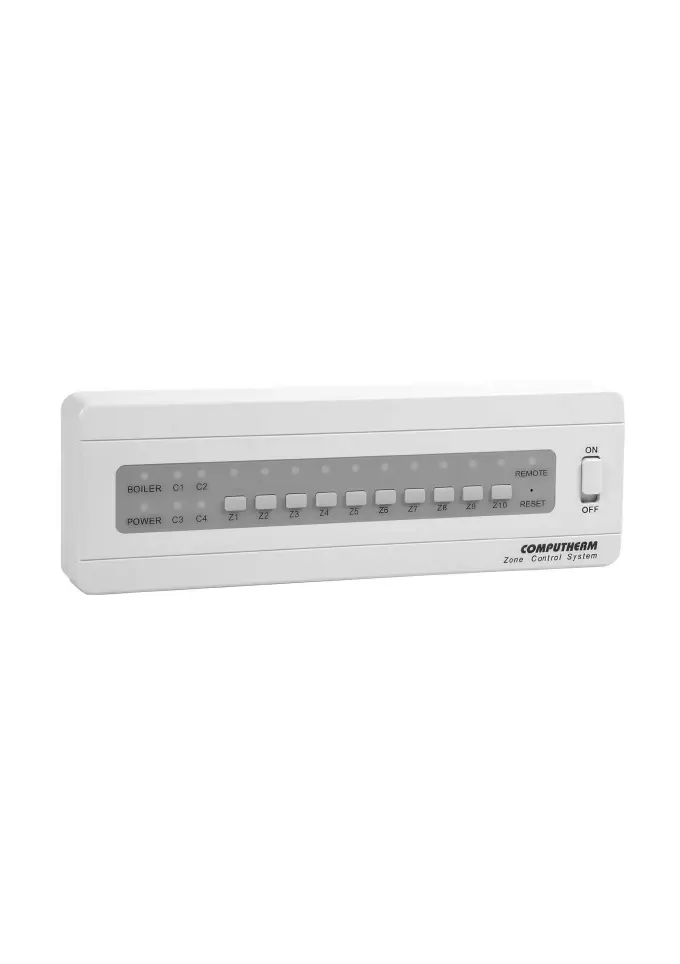

zone controller
(for controlling 1 to 10 heating zones)
COMPUTHERM
Q10Z
Operating Instructions
- 2 -
- 3 -
1.
A GENERAL DESCRIPTION OF THE
COMPUTHERM
Q10Z ZONE CONTROLLER
Since in the boilers a connector has been installed only for one room ther-
mostat, a zone controller is needed to divide the heating network into zones,
to control zone valves and to operate the boiler from several thermostats. The
zone controllers receives switch signals from room thermostats T1 to T10,
opens zone valve(s) connected to valve outputs VALVE ZONE 1 to ZONE
10, starts pump(s) connected to pump outputs PUMP ZONE 1 to ZONE 10
and to common outputs C1 to C4 and starts heating/cooling devices connec-
ted to output NO-COM.
The
COMPUTHERM
Q10Z zone controller is able to control 1 to 10 heating
zones regulated by switch mode room thermostats so that various zones can
operate either simultaneously or independently of each other.
Controlling more than 10 zones can be solved by using additional zone
controller
COMPUTHERM
Q4Z (1 Q4Z zone controller for every 4 zones)
or Q10Z (1 Q10Z zone controller for every ten zones). In this case
potential-free boiler controller outputs (NO-COM) should be connected in
parallel to the heating/cooling devices, while zone outputs operate indepen-
dently of each other.
By means of the
COMPUTHERM
Q10Z zone controller a heating/cooling
system can be easily divided into zones and in this way heating/cooling of va-
rious rooms can be controlled separately to improve comfort to a great extent.
Besides, dividing the heating/cooling system into zones highly contributes to
the reduction of energy costs because in this way only those rooms will be
heated whenever and wherever it is needed.
