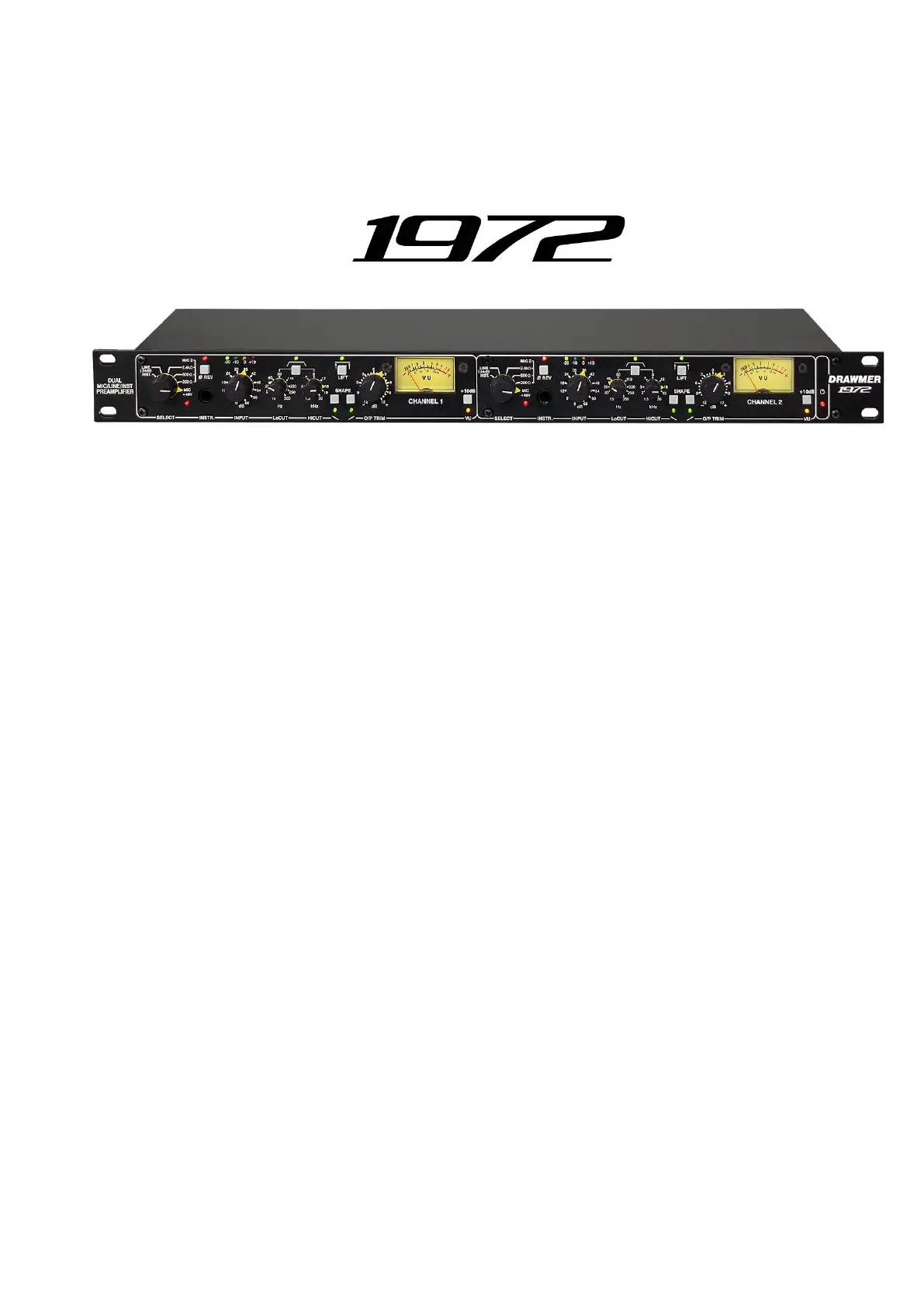

DRAWMER
Dual Mic, Line & Instrument
Pre-Amplier
OPERATOR’S MANUAL
CONTENTS
Warranty
Safety Consideration
Chapter 1 - Introduction
Introduction
Installation
Power Connection
Audio Connections
Chapter 2 - Control Description
Control Description
Chapter 3 - General Information
If a fault develops
Contacting Drawmer
Speciîšżcation Data
Block Diagram
Recall Sheet
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2
DRAWMER 1972 OPERATOR’S MANUAL
Drawmer Electronics Ltd., warrants the Drawmer 1972
Dual Mic/Line/Instrument Pre-Amplifier to conform
substantially to the speciîšżcations of this manual for a period
of one year from the original date of purchase when used in
accordance with the speciîšżcations detailed in this manual.
In the case of a valid warranty claim, your sole and exclusive
remedy and Drawmer’s entire liability under any theory of
liability will be to, at Drawmer’s discretion, repair or replace
the product without charge, or, if not possible, to refund the
purchase price to you. This warranty is not transferable. It
applies only to the original purchaser of the product.
For warranty service please call your local Drawmer dealer.
Alternatively call Drawmer Electronics Ltd. at +44 (0)1709
527574. Then ship the defective product, with transportation
and insurance charges prepaid, to Drawmer Electronics
Ltd., Coleman Street, Parkgate, Rotherham, S62 6EL
UK. Write the RA number in large letters in a prominent
position on the shipping box. Enclose your name, address,
telephone number, copy of the original sales invoice and a
detailed description of the problem. Drawmer will not accept
responsibility for loss or damage during transit.
This warranty is void if the product has been damaged by
misuse, modiîšżcation or unauthorised repair.
THIS WARRANTY IS IN LIEU OF ALL WARRANTIES,
WHETHER ORAL OR WRITTEN, EXPRESSED,
IMPLIED OR STATUTORY. DRAWMER MAKES NO
OTHER WARRANTY EITHER EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.
PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS SPECIFIED HEREIN.
IN NO EVENT WILL DRAWMER ELECTRONICS LTD.
BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM ANY DEFECT IN THE PRODUCT,
INCLUDING LOST PROFITS, DAMAGE TO PROPERTY,
AND, TO THE EXTENT PERMITTED BY LAW, DAMAGE
FOR PERSONAL INJURY, EVEN IF DRAWMER HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Some states and specific countries do not allow the
exclusion of implied warranties or limitations on how long
an implied warranty may last, so the above limitations may
not apply to you. This warranty gives you speciîšżc legal
rights. You may have additional rights that vary from state
to state, and country to country.
In the interests of product development, Drawmer reserve the right to modify or
improve speciîšżcations of this product at any time, without prior notice.
ONE YEAR LIMITED WARRANTY
COPYRIGHT
This manual is copyrighted © 2022 by Drawmer Electronics Ltd. With all rights reserved. Under copyright
laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated
into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, without
the written permission of Drawmer Electronics Ltd.
DRAWMER
1972
Dual Mic, Line &
Instrument Pre-Ampliîšżer
SAFETY CONSIDERATIONS
CAUTION - MAINS FUSE
TO REDUCE THE RISK OF FIRE
REPLACE THE MAINS FUSE ONLY WITH
A FUSE THAT CONFORMS TO IEC127-2.
250 VOLT WORKING, TIME DELAY TYPE
AND BODY SIZE OF 20mm x 5mm.
THE MAINS INPUT FUSE MUST BE
RATED AT 230V=T160mA and 115V=T315mA.
CAUTION - MAINS CABLE
DO NOT ATTEMPT TO CHANGE
OR TAMPER WITH THE
SUPPLIED MAINS CABLE.
CAUTION - SERVICING
DO NOT PERFORM ANY SERVICING.
REFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
3
DRAWMER 1972 OPERATOR’S MANUAL
DRAWMER
The 1972 Dual Mic, Line & Instrument Pre-Ampliîšżer has
been developed to make it ultra easy for you to capture
perfect recordings every time. The 1972 gives you the
ability to record pristine audio from a variety of sources and
especially makes the most of the multitude of microphones
that you îšżnd in the studio, from budget to high-end dynamic
and also ribbon mics. Uniquely it has added features that
help out in di󰀩cult to record situations that are not found on
other preampliîšżers.
The 1972 uses the latest THAT Corporation technology
in the two independent mic preamps to provide ultra
clean, transparent and precise recordings, that can be
processed at a later stage using your favourite methods,
be it compression, E.Q., saturation, valve, transformer or
tape. Each channel is capable of 66dB of stepped gain, with
an additional +/-12dB’s trim at the output, and incorporates
switchable mic impedance for accurate mic matching to bring
out the best from any microphone used, and also provides a
way to “sculpt” the sound of passive dynamic, and especially
low-impedance ribbon microphones.
CHAPTER 1
INTRODUCTION
Two THAT Corporation ultra clean
mic pre’s with 66dB of gain in 6dB
steps, plus +/-12dB’s trim at output.
Separate Line & Mic input XLR’s on
the rear plus a pro quality instrument
DI input on the front panel.
Can be used on a multitude of
sources including instruments and
all type of microphones in the studio
from low to high end, plus ribbon
mics.
Switchable Mic Impedance for
accurate mic matching and also mic
tone sculpting.
•
•
•
•
As well as standard features that you will îšżnd on most
preampliîšżers, such as phase reverse, the 1972 also has
a wealth of tools that help when recording di󰀩cult sources,
making it possible to get the best quality recording with
ease:
Fully variable LoCut and HiCut controls have been included
to allow you to tune into recordings and remove superuous
signals in the low and high frequencies, removing rumble
and hiss with ease. In addition the Shape feature allows
you to bring out the bass or treble using a subtle tilt EQ.
A unique feature that has been developed by Ivor Drawmer
and currently only available on the 1972 is the Lift control.
Lift is essentially a low level dynamic gain module which
has no e󰀨ect on signals above 0dB. This makes it possible
to record very quiet signals in a transparent and natural way
without distortion and clipping taking place on the louder
passages, and is especially e󰀨ective for very dynamic
signals, îšżnding great use in recording piano, and on all
vocals including speech, and for capturing ambiance.
Two backlit Analogue V.U. Meters
with Switchable +10dB Rescale
Mode.
Time delay relays on outputs for
clean power up/down.
Internal Low Hum Toroidal Linear
Power Supply with Voltage Selector
Switch.
Classic Drawmer build quality
with rugged steel chassis and
aluminium front panel.
Designed and Handmade by
Drawmer in the UK.
•
•
•
•
•
A wealth of features not found on
other preamps make it ease to
capture di󰀩cult to record sources.
Unique Lift feature for boosting very
low signals without the loud signals
clipping.
Fully variable LoCut and HiCut îšżlters
to tune into signals and remove
unwanted sounds.
Shape switches are included to
control bass and treble using a subtle
tilt EQ.
Phantom Power and Phase
Reverse
•
•
•
•
•

Product Specifications

Brand: Drawmer
Category: Not categorized
Model: 1972
