Page 1/2
TABLE OF CONTENTS
WHAT’S IN THE BOX & THE BASICS
ATTACHING THE 3/8”-16 MOUNTING WHEEL
MOUNTING YOUR FLEXTILT HEAD PRO
MOUNTING THE CAMERA TO YOUR FLEXTILT HEAD PRO
THE ADJUSTMENT/LOCKING KNOBS
ADJUSTING THE TENSION OF YOUR FLEXTILT HEAD PRO
CAUTIONS AND TIPS
USE WITHOUT A TRIPOD
1.
2.
3.
4.
5.
6.
7.
8.
Before operating your edelkrone,
please watch the user’s manual video from the link below
http://edel.kr/fthp
USER’S MANUAL
1. WHAT’S IN THE BOX & THE BASICS
1.
2.
3.
4.
5.
1/4” - 20 mounting screw
Level adjustment knobs (x2)
3/8” - 16 mounting screw
Reducer bushing/adapter*
Mounting wheel changing piece
6.
7.
8.
9.
10.
3mm adjustment joints (x2)
Spirit level
Pan marking
3mm allen wrench
3/8” - 16 mounting port
3. MOUNTING YOUR FLEXTILT HEAD PRO
1.
2.
3.
Place your FlexTILT Head PRO on the screw.
Rotate clockwise to tighten.
Continue rotating until it is tightened.
A detailed video explaining the mounting process can be found at:
http://edel.kr/fthp
1
1
2
5
6
7
8
9
10
2
A detailed video explaining the mounting process can be found at:
http://edel.kr/fthp
1. 2.
4. MOUNTING THE CAMERA TO YOUR FLEXTILT HEAD PRO
When adjusting the height, adjust one point at a time. (a,b)
Unfold the FlexTILT Head PRO to
access the mounting wheel.
Attach your camera using
the mounting wheel.
a
b
1
2
FLEXTILT HEAD PRO
A detailed video explaining how to chage the mounting screws can be found at:
http://edel.kr/fthp
2. ATTACHING THE 3/8”-16 MOUNTING WHEEL
*1/4”-20 to 3/8”-16 mounting screw adapter and 1/4”-20 reducer bushing for mounting
port are provided. The adapter is mounted on the 3/8"-16 port at the bottom, which
can be removed it with the help of a coin.
4
3
FlexTILT Head PRO has two mounting screw options: 1/4”-20 & 3/8”-16.
Remove the indicated part with a screw driver.
Remove the 1/4”-20 mounting screw.
Attach the 3/8”-16 mounting screw.
Attach the part back in its place.
1.
2.
3.
4.
DISCLAIMER
edelkrone cannot be held responsible for damage caused by improper use or
modification of the product.
Keep hands clear of moving parts when positioning your camera.
For more infromation and tips about your FlexTILT Head PRO, please watch
the user’s manual video at: http://edel.kr/fthp
www.edelkrone.com

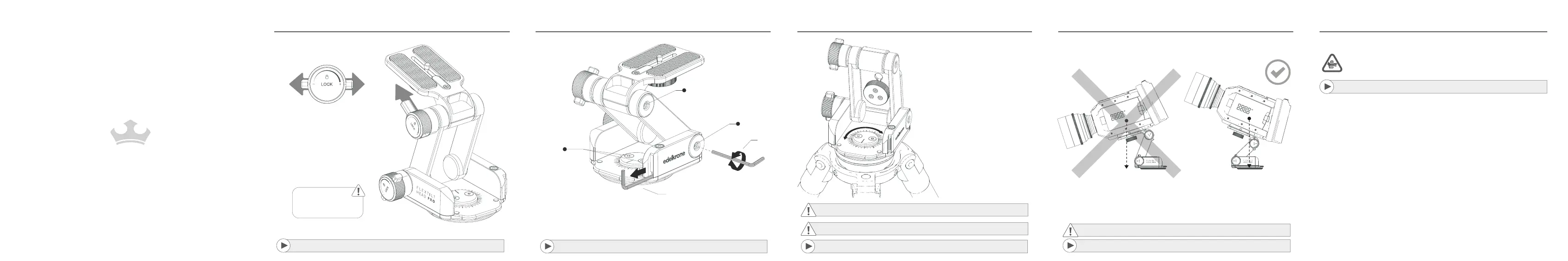

6. ADJUSTING THE TENSION OF YOUR FLEXTILT HEAD PRO
You can adjust the tension of the system with the help of a 3mm Allen wrench.
1. Remove the 3mm Allen wrench from the magnetic Allen holder.
2. Simply tighten or loosen the screws on each side.
A detailed video explaining adjusting tension can be found at: http://edel.kr/fthp
A detailed video explaining other tips can be found at: http://edel.kr/fthp
If the hash marks are turning, the
FlexTILT Head PRO is panning.
The FlexTILT Head PRO can pan
for up to 340° degrees.
The Magnetized Knob Lever extends
in either direction (as shown above)
and can be used as a thumb rest
to tighten the knob harder.
If the lever hits an obstacle during
use, extend it in the other direction to
continue tightening or loosening the
knob.
When positioning the FlexTILT Head PRO, hold your camera for safety.
7. CAUTIONS AND TIPS
Keep hands clear of moving parts when positioning your camera.
A detailed video explaining how to balance and turn the camera can be found at:
http://edel.kr/fthp
A detailed video explaining how to use adjustment knobs can be found at:
http://edel.kr/fthp
To keep your set up balanced, ensure that the center of gravity is over the middle
of the self standing area.
8. USE WITHOUT A TRIPOD
5. THE ADJUSTMENT/LOCKING KNOBS
2
1
Magnetised Knob Lever
Caution!
Carrying capacity is
15 lb (6.8 kg) or less.
Do not load more than the
maximum capacity.
