Elac HDX21 Manual

Read below 📖 the manual in Italian for Elac HDX21 (6 pages) in the Not categorized category. This guide has been helpful for 25 people and has been rated 4.5 stars on average by 2 users

Page 1/6
SOLUTIONS
HD
HD
HD
HDX21
X21
X21
X21HDX21
Contents
DC Adaptor
ELAC SOLUTIONS HDX21 | www.elac.com | Page 2
Controls and Inputs/Output
1
1. 12 VDC INPUT
2. 12 V Trigger Output
2 3 4
5
6 7 8
4. Analog Input
5. Analog Output
6. Threshold Adjustment
7. Status LED
8. Time Delay Adjustment
Rubber Feet (4)Euro/NA Plugs
HDMI-ARC

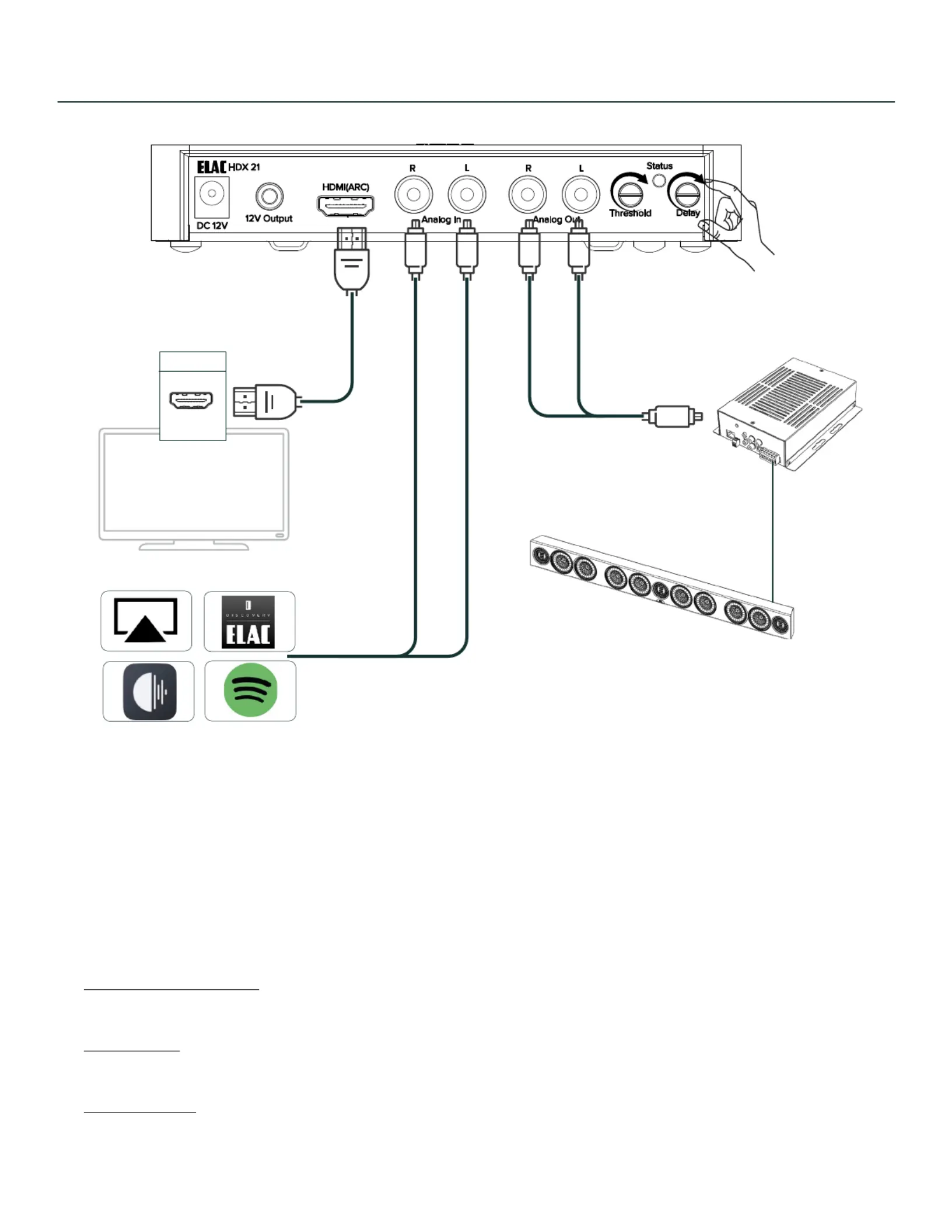

CONNECTIONS - TELEVISION
ELAC SOLUTIONS HDX21 | www.elac.com | Page 3
HDX21 is an HDMI converter with signal sense and auto switch.
With HDMI (eARC) connected to the TV (eARC) output, HDX21 will play audio on the analog outputs. Your TV
remote control’s volume, power and mute controls analog ouput of HDX21 without any additional setup.
Applying a source to analog input, HDX21 will switch from playing HDMI audio to source audio. Stopping or
pausing the source - HDX21 will auto switch back to HDMI audio.
The voltage at which it switches can be adjusted by the Threshold Adjustment.
The time is takes to switch can be adjusted by the Time Delay Adjustment.
Threshold Adjustment :
Adjust voltage threshold from 2 to 200 millivolts. Increasing this setting eliminate switching due to noise.
Time Delay :
Adjust time delay from 0.5 to 130 seconds. This is the time it waits before it will switch inputs
12Volt Trigger :
12Volts will be on with either HDMI or analog input are present.

Product Specifications

Brand: Elac
Category: Not categorized
Model: HDX21
