BTH-808 USER’S MANUAL ver 1.2
1 INTRODUCTION
The headset BTH-808 is the ultimate hands-free and wire-free solution that
connects your mobile phones to your headset via Bluetooth radio technology
instead of a wire. All calls and voices can be transmitted wirelessly to your
earpiece by this small and cute dolphin. It gives you an easy access to volume
controls and features LED indicators.
1.1 FEATURES
Operation range up to 10m
Talking time up to4.5 hours
Stand-by time up to 200hours
Mini weight about 11 grams
On/Off Switch, On/Off indicator
Rechargeable Li-ion, Low battery indicator
Complete accessories-for comfortable use
1.2 SPECIFICATIONS
Standard Bluetooth V1.1
Operation Range 10 meters (33 feet)
Audio Codec 15 bits resolution, S/N > 60 dB
Frequency 2.4 GHZ-2.4835 GHZ ISM Band
Dimension: (L) 75 mm*( W) 22.5 mm * (H) 9mm
Connection Point-to-point
Weight 11g (including battery)
Talk time 4.5 hrs
Standby time 200 hrs
Output Power 0 dBm (class II)
Security 128 bits encryption
Power Consumption 17mA working, 500uA standby
Battery Rechargeable Li-ion polymer 110mAh
Charging 5V DC, 100~240V AC adapter
Charging time 2~3 hrs
Operating Temperature -10 ~ 55 C
Storage Temperature -20 ~ 60 C
Certification CE, FCC, BQB
Headset passkey 1234.
2. HEADSET FUNCTIONS

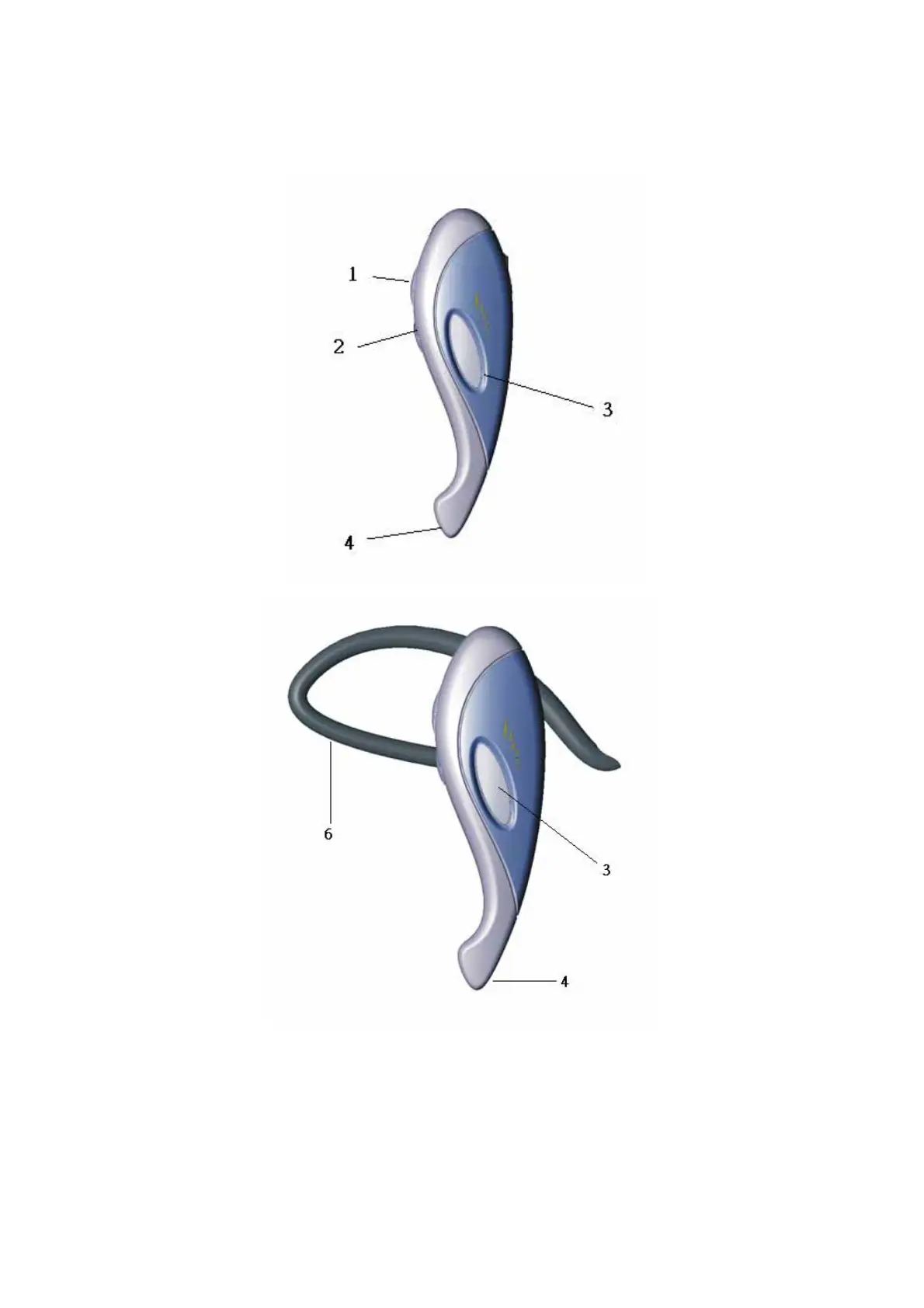

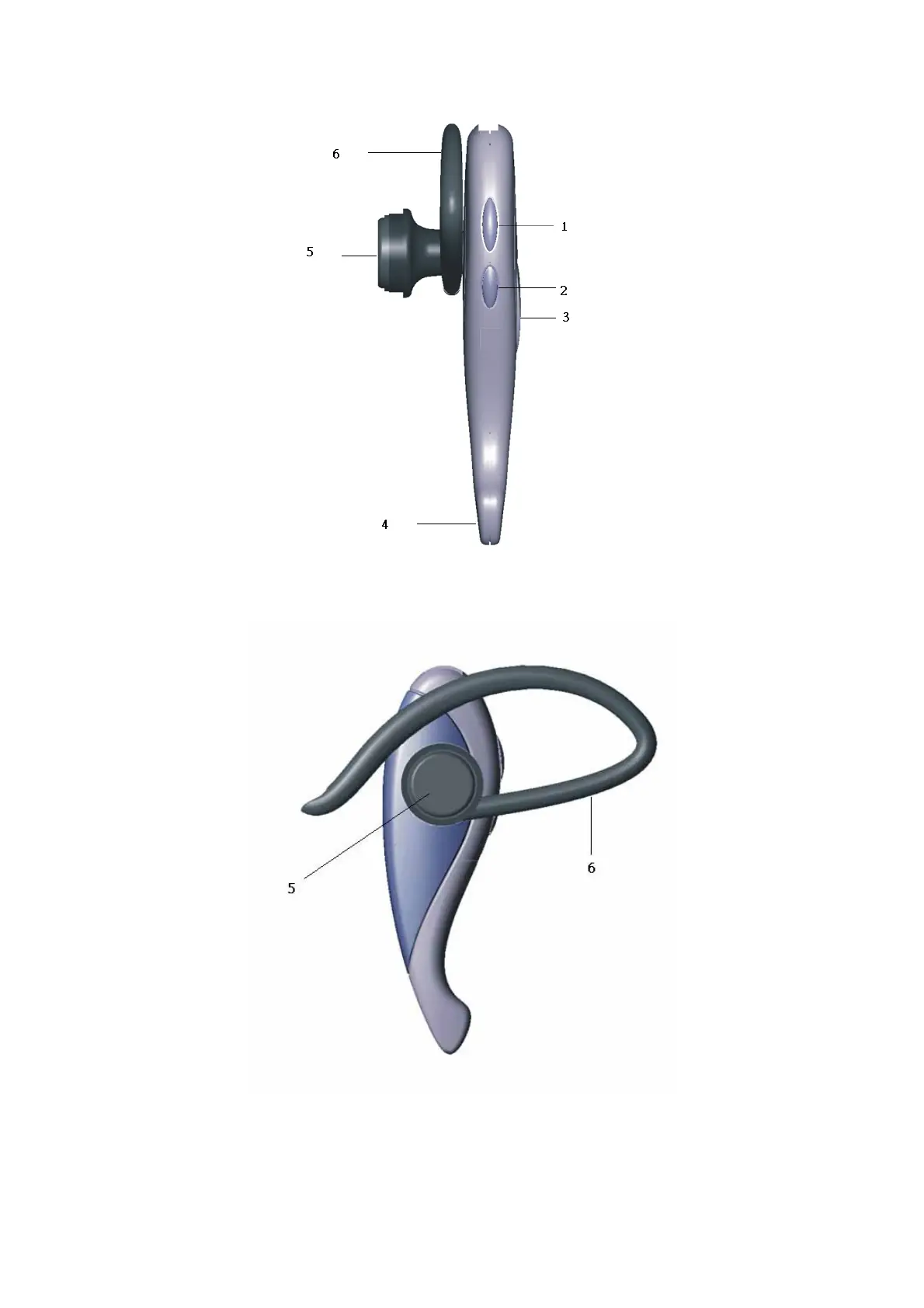

2.1 HEADSET APPEARANCE
Figure 2
Figure 1
Figure 3
Figure 4
