HP LF Printing Knowledge Center
Printing a “match to screen”
Application: Adobe Illustrator CS
Printer: HP Designjet 30/90/130 series
Software: EFI Designer Edition for HP
Operating System: Mac OS X
1. First recommendations:
• See the
Media type functionality & features and choose the most appropriate media.
• It is essential to have the media type correctly calibrated with the printer and print mode,
consult the
Calibrate my printer section.
• In order to get a correct display, it’s also essential to have the monitor profiled, consult the
Profile my monitor section.
2. Open the EFI Designer Edition RIP.

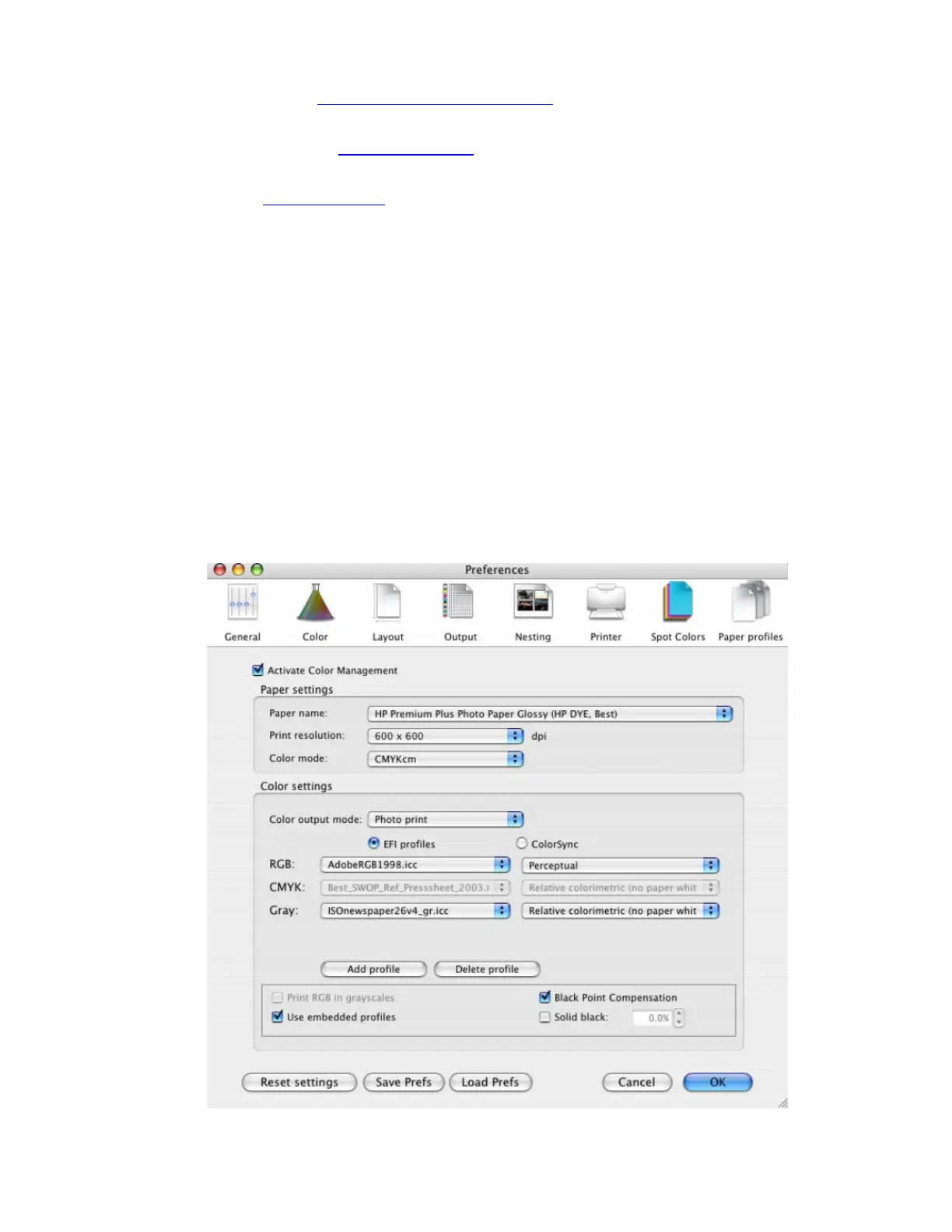

3. EFI Designer Edition RIP settings, Preferences:
• Color:
o Check the Active Color Management checkbox.
o Paper name: Select the paper type that is loaded on the printer (always
calibrated) and “Best” print quality.
o Print resolution: 600 x 600.
o Color output mode: Photo print.
o You don’t need to worry about the profiles and rendering intent because you will
select PostScript Color Management option in the application, then, the
application tells the RIP which source profile and rendering intent should be used
for the conversion to the print space, these are the Document profile and the Print
Space Intent of the application. The RIP color settings will be overridden.
• Click OK
2
4. Open Adobe Illustrator CS.
5. Configure the Color Settings, Edit menu > Color Settings…:
• Make sure the Advanced Mode check box is ticked.
• Working Space > RGB: sRGB IEC61966-2.1.
• Working Space > CMYK: Euroscale Coated v2 (for Europe), U.S. Web Coated (SWOP)
v2 (for US) and Japan Standard v2 (for Japan).
• Color Management Policies: Convert to working space.
• Profile Mismatches: check Ask When Opening and Ask When Pasting.
• Missing Profiles: check Ask When Opening.
• Conversion Options > Intent: Perceptual (for RGB images) or Relative Colorimetric (for
CMYK images).
• Click OK.
6. Open the image, File menu > Open…:
• If the document has an embedded color profile that does not match the current working
space, select Convert document’s colors to the current working space. Otherwise,
select Assign current working space.
3
