The Impact ControlSync 16 system allows
you to control all compatible monolights
and strobes from one convenient location
with a reliable, easy-to-use controller.
The ControlSync 16 is a great solution to
speed up and simplify your workîow.
Whether you work with a few îashes in a
single setup, or in a large studio with a
number of sets with many lights, you will
immediately see the advantage of being
able to make adjustments to your lighting
without the need to maneuver into
crowded, hard to reach places.
You can adjust the power level of each
îash or group of îashes in 1/10 stop
increments as well as controlling model
lamps or AF assist lamps, turning alert
sounds on or off and test îring and
triggering your entire lighting setup, all
from a central location. The ControlSync
16 also features 16 channels to avoid
interference and false triggers, along with
the ability to address 16 separate groups
for precision control of your lighting.
You may even înd that this convenience
frees you to experiment with new ideas
and styles. Youâll discover creative ways
to use your lighting to bring out your very
best work.
Before using this product, please read
the following safety instructions
carefully in order to ensure your safety
and the proper operation of the Control
Sync 16 system. Failure to observe these
precautions could result in product
malfunction, îre or explosion, electric
shock or other physical injury.
⢠Do not disassemble or modify. Should
the product break open due to
accidental damage, remove the
batteries and send it to an authorized
repair center.
⢠Keep dry. Do not handle with wet
hands, immerse in water, or expose to
rain or snow.
⢠Do not use in the presence of
îammable gasses.
⢠Keep out of reach of children. This
product contains small parts that may
pose a choking hazard. Should a child
swallow any part of this product,
consult a physician immediately.
⢠Turn off the transmitter or receiver
immediately should a malfunction
occur. Should smoke or any unusual
smell come from this product, shut it
off and remove the batteries
immediately. Send it to an authorized
repair facility for service. Continued
use may result in physical injury.
⢠Do not expose to high temperature. Do
not leave product in a closed vehicle in
the sun or other areas subject to
extremely high temperature.
⢠16 channels
⢠Up to 16 groups
⢠433 MHz
⢠Effective range 150â (50 m)
⢠Raise or lower îash power
⢠Model or AF Assist light On/Off
⢠Audio alert On/Off
⢠Test îash (triggers all groups)
NOTE: All îashes that you wish to control
from the ControlSync 16 must be equipped
with a ControlSync 16 Receiver. Additional
îashes may be triggered using their optical
slave function if available.
Installing Batteries in Transmitter
1. Remove battery cover from unit.
2. Insert two AA batteries, being sure to
follow illustrations inside unit to
properly position the positive (+) and
negative (â) terminals.
3. Replace battery cover.

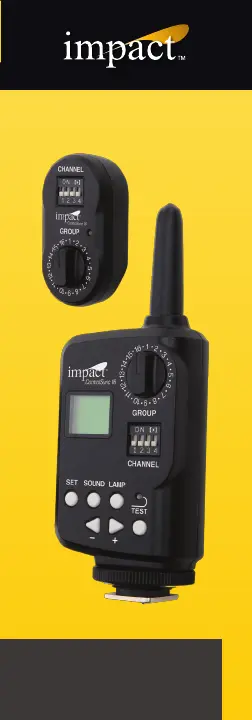

Attaching the ControlSync 16 Transmitter
to Your Camera: Rotate the locking wheel
counterclockwise on the ControlSync 16
until it is in the fully open (uppermost)
position. Slide the unit's hot shoe foot into
your camera's hot shoe, and tighten until
secure. You can also connect a PC cord
from your camera to the unit's 3.5mm mini
sync socket.
Attaching the ControlSync 16 Receiver to
Your Compatible Flash or Monolight: Flip
up the USB connector on the ControlSync
16 Receiver. Plug it into the USB port on
your compatible îash or monolight.
The Receiver is powered from the USB
port, so no battery or external power is
required. The Receiver has no On/Off
switch. As soon as it is set and plugged in
to an active, compatible îash or
monolight, it will automatically begin to
function.
Turning on the ControlSync 16
Transmitter: To turn on the transmitter,
slide the Power switch to the On position.
Setting the Channel: The ControlSync 16
has 16 channels available for use. This
allows you to avoid interference with
other devices or photographers in a busy
work environment, with each
photographer operating on a different
channel. Use the DIP switches on the
front panel of the transmitter and receiver
to select the desired channel as shown
on the DIP switch conîguration chart.
In order for the transmitter and receiver
to communicate with each other, both
have to be set to the same channel.
Selecting the Group on the ControlSync
16: Use the Group Select dial to choose
the group you want to adjust. A group can
consist of just one îash up to any number
of îashes you wish. The Group function
allows you to adjust settings on speciîc
îashes or groups of îashes from one
location, without having to go to each
îash and make those adjustments
individually. Group-speciîc controls are
raising and lowering the power, turning
the sound on or off, and turning the
modeling/AF assist light on or off.
Selecting the Group on the Receiver: Use
the Group Select dial to choose the
desired group.
Note: The transmitterâs display can be
switched from showing power output in
decimals (generally used for monolights) to
fractions (typically used for îashes). To
change this setting, press and hold the Set
button until the display switches.
When the display is set to decimals, the
power adjustments will be in 1/10th-stop
increments. When set to fractions, the
adjustments will be in 1/3rd-stop increments.
Sound: Use the Sound button to turn the
sound on or off for all the îashes in the
selected group. will be displayed on
the LDC.
Lamp: Use the Lamp button to turn the
Modeling or AF-Assist Light (depending
on your device) on or off for all the
îashes in the selected group. will be
displayed on the LDC.
Test: Press the Test button to test îre all
îashes in all groups.
Turning Off a Group: To turn off a group,
use the - button to turn its power down
all the way. The display will indicate OF.
NOTE: After making any changes to settings,
whether on the ControlSync 16 or on any
connected îashes, press the SET button to
conîrm and sync all settings. will be
displayed on the LDC.
Changes made to îash settings will be
reîected on the ControlSync 16 display,
and on each îashâs display as well.
The ColorSync 16 can also be used as a
handheld central remote controller to
adjust the settings on all your compatible
lights, even if you use a different method
to actually trigger them (e.g. a sync cord,
Pocket Wizard, etc.).
ControlSync 16 System
INSTRUCTIONS
CS-16
Limited Warranty
This IMPACT product is warranted to the
original purchaser to be free from defects
in materials and workmanship under
normal consumer use for a period of one
(1) year from the original purchase date
or thirty (30) days after replacement,
whichever occurs later. The warranty
providerâs responsibility with respect to
this limited warranty shall be limited
solely to repair or replacement, at the
providerâs discretion, of any product that
fails during normal use of this product in
its intended manner and in its intended
environment. Inoperability of the product
or part(s) shall be determined by the
warranty provider. If the product has been
discontinued, the warranty provider
reserves the right to replace it with a
model of equivalent quality and function.
This warranty does not cover damage or
defect caused by misuse, neglect,
accident, alteration, abuse, improper
installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY
EXPRESS WARRANTIES NOR ANY
IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED
WARRANY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
This warranty provides you with speciîc
legal rights, and you may also have
additional rights that vary from state
to state.
To obtain warranty coverage, contact the
Impact Customer Service Department to
obtain a return merchandise authorization
(âRMAâ) number, and return the defective
product to Impact along with the RMA
number and proof of purchase. Shipment
of the defective product is at the
purchaserâs own risk and expense.
For more information, or to arrange
service, visit
www.impactstudiolighting.com or call
Customer Service at 212-594-2353.
Product warranty provided by the Gradus
Group.
www.gradusgroup.com
IMPACT is a registered trademark of the
Gradus Group. Š 2015 Gradus Group LLC.
All Rights Reserved
All other trademarks are the property of
their respective owners. Š Copyright 2015
Gradus Group
⢠Keep away from strong magnetic îelds.
Strong static or magnetic îelds
produced by devices such as cell
phones and radios may lead to
malfunction.
⢠Observe precautions when handling
batteries. Batteries may leak or explode
if improperly handled.
Please observe the following precautions
when using batteries with this product.
- Use only batteries listed in this manual.
Do not mix new and old batteries or
different brand batteries.
- Read and follow all warnings and
instructions provided by the battery
manufacturer.
- Do not attempt to short-circuit or
disassemble batteries.
- Do not put batteries in a îre or apply
direct heat to them.
- Do not attempt to install batteries in the
reverse direction.
- Batteries may leak when fully
discharged. To avoid damage to the
product, be sure to remove the batteries
if the product will not be used for an
extended period of time, or if the battery
power is low.
- Should îuid from damaged batteries
come into contact with skin or clothing,
rinse immediately with fresh water.
1. Unable to trigger a îash by pressing
the Test button or the cameraâs shutter
release:
⢠Make sure the batteries are installed
properly and the transmitter is
powered on.
⢠Check the DIP switches to see that
the transmitter and receiver are set
to the same channel.
⢠Check if the transmitter is îrmly
seated in the cameraâs hot shoe.
2. Signal disturbance or shooting
interference (lights not îring or îring
irregularly):
⢠Try using a different channel.
3. Reduced operating range, or
monolights not îring.
⢠Check if batteries in transmitter are
drained. Try replacing with fresh
ones.
4. Flashes not responding to adjustments
made on transmitter.
⢠Check that transmitter and receiver
are set to the same channel
⢠Check that the transmitter and
receiver are set to the same group
⢠Check if the îash power is out of
adjustment range (e. g. îash has
1.0-6.0 power adjustment range but
remote is set to 7.0).
Adjusting Power Output: Use the + and -
buttons to adjust the power of the
selected group up or down.
The Impact ControlSync 16 system allows
you to control all compatible monolights
and strobes from one convenient location
with a reliable, easy-to-use controller.
The ControlSync 16 is a great solution to
speed up and simplify your workîow.
Whether you work with a few îashes in a
single setup, or in a large studio with a
number of sets with many lights, you will
immediately see the advantage of being
able to make adjustments to your lighting
without the need to maneuver into
crowded, hard to reach places.
You can adjust the power level of each
îash or group of îashes in 1/10 stop
increments as well as controlling model
lamps or AF assist lamps, turning alert
sounds on or off and test îring and
triggering your entire lighting setup, all
from a central location. The ControlSync
16 also features 16 channels to avoid
interference and false triggers, along with
the ability to address 16 separate groups
for precision control of your lighting.
You may even înd that this convenience
frees you to experiment with new ideas
and styles. Youâll discover creative ways
to use your lighting to bring out your very
best work.
Before using this product, please read
the following safety instructions
carefully in order to ensure your safety
and the proper operation of the Control
Sync 16 system. Failure to observe these
precautions could result in product
malfunction, îre or explosion, electric
shock or other physical injury.
⢠Do not disassemble or modify. Should
the product break open due to
accidental damage, remove the
batteries and send it to an authorized
repair center.
⢠Keep dry. Do not handle with wet
hands, immerse in water, or expose to
rain or snow.
⢠Do not use in the presence of
îammable gasses.
⢠Keep out of reach of children. This
product contains small parts that may
pose a choking hazard. Should a child
swallow any part of this product,
consult a physician immediately.
⢠Turn off the transmitter or receiver
immediately should a malfunction
occur. Should smoke or any unusual
smell come from this product, shut it
off and remove the batteries
immediately. Send it to an authorized
repair facility for service. Continued
use may result in physical injury.
⢠Do not expose to high temperature. Do
not leave product in a closed vehicle in
the sun or other areas subject to
extremely high temperature.
⢠16 channels
⢠Up to 16 groups
⢠433 MHz
⢠Effective range 150â (50 m)
⢠Raise or lower îash power
⢠Model or AF Assist light On/Off
⢠Audio alert On/Off
⢠Test îash (triggers all groups)
NOTE: All îashes that you wish to control
from the ControlSync 16 must be equipped
with a ControlSync 16 Receiver. Additional
îashes may be triggered using their optical
slave function if available.
Installing Batteries in Transmitter
1. Remove battery cover from unit.
2. Insert two AA batteries, being sure to
follow illustrations inside unit to
properly position the positive (+) and
negative (â) terminals.
3. Replace battery cover.
Attaching the ControlSync 16 Transmitter
to Your Camera: Rotate the locking wheel
counterclockwise on the ControlSync 16
until it is in the fully open (uppermost)
position. Slide the unit's hot shoe foot into
your camera's hot shoe, and tighten until
secure. You can also connect a PC cord
from your camera to the unit's 3.5mm mini
sync socket.
Attaching the ControlSync 16 Receiver to
Your Compatible Flash or Monolight: Flip
up the USB connector on the ControlSync
16 Receiver. Plug it into the USB port on
your compatible îash or monolight.
The Receiver is powered from the USB
port, so no battery or external power is
required. The Receiver has no On/Off
switch. As soon as it is set and plugged in
to an active, compatible îash or
monolight, it will automatically begin to
function.
Turning on the ControlSync 16
Transmitter: To turn on the transmitter,
slide the Power switch to the On position.
Setting the Channel: The ControlSync 16
has 16 channels available for use. This
allows you to avoid interference with
other devices or photographers in a busy
work environment, with each
photographer operating on a different
channel. Use the DIP switches on the
front panel of the transmitter and receiver
to select the desired channel as shown
on the DIP switch conîguration chart.
In order for the transmitter and receiver
to communicate with each other, both
have to be set to the same channel.
Selecting the Group on the ControlSync
16: Use the Group Select dial to choose
the group you want to adjust. A group can
consist of just one îash up to any number
of îashes you wish. The Group function
allows you to adjust settings on speciîc
îashes or groups of îashes from one
location, without having to go to each
îash and make those adjustments
individually. Group-speciîc controls are
raising and lowering the power, turning
the sound on or off, and turning the
modeling/AF assist light on or off.
Selecting the Group on the Receiver: Use
the Group Select dial to choose the
desired group.
Note: The transmitterâs display can be
switched from showing power output in
decimals (generally used for monolights) to
fractions (typically used for îashes). To
change this setting, press and hold the Set
button until the display switches.
When the display is set to decimals, the
power adjustments will be in 1/10th-stop
increments. When set to fractions, the
adjustments will be in 1/3rd-stop increments.
Sound: Use the Sound button to turn the
sound on or off for all the îashes in the
selected group. will be displayed on
the LDC.
Lamp: Use the Lamp button to turn the
Modeling or AF-Assist Light (depending
on your device) on or off for all the
îashes in the selected group. will be
displayed on the LDC.
Test: Press the Test button to test îre all
îashes in all groups.
Turning Off a Group: To turn off a group,
use the - button to turn its power down
all the way. The display will indicate OF.
NOTE: After making any changes to settings,
whether on the ControlSync 16 or on any
connected îashes, press the SET button to
conîrm and sync all settings. will be
displayed on the LDC.
Changes made to îash settings will be
reîected on the ControlSync 16 display,
and on each îashâs display as well.
The ColorSync 16 can also be used as a
handheld central remote controller to
adjust the settings on all your compatible
lights, even if you use a different method
to actually trigger them (e.g. a sync cord,
Pocket Wizard, etc.).
Introduction
Limited Warranty
This IMPACT product is warranted to the
original purchaser to be free from defects
in materials and workmanship under
normal consumer use for a period of one
(1) year from the original purchase date
or thirty (30) days after replacement,
whichever occurs later. The warranty
providerâs responsibility with respect to
this limited warranty shall be limited
solely to repair or replacement, at the
providerâs discretion, of any product that
fails during normal use of this product in
its intended manner and in its intended
environment. Inoperability of the product
or part(s) shall be determined by the
warranty provider. If the product has been
discontinued, the warranty provider
reserves the right to replace it with a
model of equivalent quality and function.
This warranty does not cover damage or
defect caused by misuse, neglect,
accident, alteration, abuse, improper
installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY
EXPRESS WARRANTIES NOR ANY
IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED
WARRANY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
This warranty provides you with speciîc
legal rights, and you may also have
additional rights that vary from state
to state.
To obtain warranty coverage, contact the
Impact Customer Service Department to
obtain a return merchandise authorization
(âRMAâ) number, and return the defective
product to Impact along with the RMA
number and proof of purchase. Shipment
of the defective product is at the
purchaserâs own risk and expense.
For more information, or to arrange
service, visit
www.impactstudiolighting.com or call
Customer Service at 212-594-2353.
Product warranty provided by the Gradus
Group.
www.gradusgroup.com
IMPACT is a registered trademark of the
Gradus Group. Š 2015 Gradus Group LLC.
All Rights Reserved
All other trademarks are the property of
their respective owners. Š Copyright 2015
Gradus Group
⢠Keep away from strong magnetic îelds.
Strong static or magnetic îelds
produced by devices such as cell
phones and radios may lead to
malfunction.
⢠Observe precautions when handling
batteries. Batteries may leak or explode
if improperly handled.
Please observe the following precautions
when using batteries with this product.
- Use only batteries listed in this manual.
Do not mix new and old batteries or
different brand batteries.
- Read and follow all warnings and
instructions provided by the battery
manufacturer.
- Do not attempt to short-circuit or
disassemble batteries.
- Do not put batteries in a îre or apply
direct heat to them.
- Do not attempt to install batteries in the
reverse direction.
- Batteries may leak when fully
discharged. To avoid damage to the
product, be sure to remove the batteries
if the product will not be used for an
extended period of time, or if the battery
power is low.
- Should îuid from damaged batteries
come into contact with skin or clothing,
rinse immediately with fresh water.
1. Unable to trigger a îash by pressing
the Test button or the cameraâs shutter
release:
⢠Make sure the batteries are installed
properly and the transmitter is
powered on.
⢠Check the DIP switches to see that
the transmitter and receiver are set
to the same channel.
⢠Check if the transmitter is îrmly
seated in the cameraâs hot shoe.
2. Signal disturbance or shooting
interference (lights not îring or îring
irregularly):
⢠Try using a different channel.
3. Reduced operating range, or
monolights not îring.
⢠Check if batteries in transmitter are
drained. Try replacing with fresh
ones.
4. Flashes not responding to adjustments
made on transmitter.
⢠Check that transmitter and receiver
are set to the same channel
⢠Check that the transmitter and
receiver are set to the same group
⢠Check if the îash power is out of
adjustment range (e. g. îash has
1.0-6.0 power adjustment range but
remote is set to 7.0).
Adjusting Power Output: Use the + and -
buttons to adjust the power of the
selected group up or down.
The Impact ControlSync 16 system allows
you to control all compatible monolights
and strobes from one convenient location
with a reliable, easy-to-use controller.
The ControlSync 16 is a great solution to
speed up and simplify your workîow.
Whether you work with a few îashes in a
single setup, or in a large studio with a
number of sets with many lights, you will
immediately see the advantage of being
able to make adjustments to your lighting
without the need to maneuver into
crowded, hard to reach places.
You can adjust the power level of each
îash or group of îashes in 1/10 stop
increments as well as controlling model
lamps or AF assist lamps, turning alert
sounds on or off and test îring and
triggering your entire lighting setup, all
from a central location. The ControlSync
16 also features 16 channels to avoid
interference and false triggers, along with
the ability to address 16 separate groups
for precision control of your lighting.
You may even înd that this convenience
frees you to experiment with new ideas
and styles. Youâll discover creative ways
to use your lighting to bring out your very
best work.
Before using this product, please read
the following safety instructions
carefully in order to ensure your safety
and the proper operation of the Control
Sync 16 system. Failure to observe these
precautions could result in product
malfunction, îre or explosion, electric
shock or other physical injury.
⢠Do not disassemble or modify. Should
the product break open due to
accidental damage, remove the
batteries and send it to an authorized
repair center.
⢠Keep dry. Do not handle with wet
hands, immerse in water, or expose to
rain or snow.
⢠Do not use in the presence of
îammable gasses.
⢠Keep out of reach of children. This
product contains small parts that may
pose a choking hazard. Should a child
swallow any part of this product,
consult a physician immediately.
⢠Turn off the transmitter or receiver
immediately should a malfunction
occur. Should smoke or any unusual
smell come from this product, shut it
off and remove the batteries
immediately. Send it to an authorized
repair facility for service. Continued
use may result in physical injury.
⢠Do not expose to high temperature. Do
not leave product in a closed vehicle in
the sun or other areas subject to
extremely high temperature.
⢠16 channels
⢠Up to 16 groups
⢠433 MHz
⢠Effective range 150â (50 m)
⢠Raise or lower îash power
⢠Model or AF Assist light On/Off
⢠Audio alert On/Off
⢠Test îash (triggers all groups)
NOTE: All îashes that you wish to control
from the ControlSync 16 must be equipped
with a ControlSync 16 Receiver. Additional
îashes may be triggered using their optical
slave function if available.
Installing Batteries in Transmitter
1. Remove battery cover from unit.
2. Insert two AA batteries, being sure to
follow illustrations inside unit to
properly position the positive (+) and
negative (â) terminals.
3. Replace battery cover.
Attaching the ControlSync 16 Transmitter
to Your Camera: Rotate the locking wheel
counterclockwise on the ControlSync 16
until it is in the fully open (uppermost)
position. Slide the unit's hot shoe foot into
your camera's hot shoe, and tighten until
secure. You can also connect a PC cord
from your camera to the unit's 3.5mm mini
sync socket.
Attaching the ControlSync 16 Receiver to
Your Compatible Flash or Monolight: Flip
up the USB connector on the ControlSync
16 Receiver. Plug it into the USB port on
your compatible îash or monolight.
The Receiver is powered from the USB
port, so no battery or external power is
required. The Receiver has no On/Off
switch. As soon as it is set and plugged in
to an active, compatible îash or
monolight, it will automatically begin to
function.
Turning on the ControlSync 16
Transmitter: To turn on the transmitter,
slide the Power switch to the On position.
Setting the Channel: The ControlSync 16
has 16 channels available for use. This
allows you to avoid interference with
other devices or photographers in a busy
work environment, with each
photographer operating on a different
channel. Use the DIP switches on the
front panel of the transmitter and receiver
to select the desired channel as shown
on the DIP switch conîguration chart.
In order for the transmitter and receiver
to communicate with each other, both
have to be set to the same channel.
Selecting the Group on the ControlSync
16: Use the Group Select dial to choose
the group you want to adjust. A group can
consist of just one îash up to any number
of îashes you wish. The Group function
allows you to adjust settings on speciîc
îashes or groups of îashes from one
location, without having to go to each
îash and make those adjustments
individually. Group-speciîc controls are
raising and lowering the power, turning
the sound on or off, and turning the
modeling/AF assist light on or off.
Selecting the Group on the Receiver: Use
the Group Select dial to choose the
desired group.
Note: The transmitterâs display can be
switched from showing power output in
decimals (generally used for monolights) to
fractions (typically used for îashes). To
change this setting, press and hold the Set
button until the display switches.
When the display is set to decimals, the
power adjustments will be in 1/10th-stop
increments. When set to fractions, the
adjustments will be in 1/3rd-stop increments.
Sound: Use the Sound button to turn the
sound on or off for all the îashes in the
selected group. will be displayed on
the LDC.
Lamp: Use the Lamp button to turn the
Modeling or AF-Assist Light (depending
on your device) on or off for all the
îashes in the selected group. will be
displayed on the LDC.
Test: Press the Test button to test îre all
îashes in all groups.
Turning Off a Group: To turn off a group,
use the - button to turn its power down
all the way. The display will indicate OF.
NOTE: After making any changes to settings,
whether on the ControlSync 16 or on any
connected îashes, press the SET button to
conîrm and sync all settings. will be
displayed on the LDC.
Changes made to îash settings will be
reîected on the ControlSync 16 display,
and on each îashâs display as well.
The ColorSync 16 can also be used as a
handheld central remote controller to
adjust the settings on all your compatible
lights, even if you use a different method
to actually trigger them (e.g. a sync cord,
Pocket Wizard, etc.).
Warnings
Limited Warranty
This IMPACT product is warranted to the
original purchaser to be free from defects
in materials and workmanship under
normal consumer use for a period of one
(1) year from the original purchase date
or thirty (30) days after replacement,
whichever occurs later. The warranty
providerâs responsibility with respect to
this limited warranty shall be limited
solely to repair or replacement, at the
providerâs discretion, of any product that
fails during normal use of this product in
its intended manner and in its intended
environment. Inoperability of the product
or part(s) shall be determined by the
warranty provider. If the product has been
discontinued, the warranty provider
reserves the right to replace it with a
model of equivalent quality and function.
This warranty does not cover damage or
defect caused by misuse, neglect,
accident, alteration, abuse, improper
installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY
EXPRESS WARRANTIES NOR ANY
IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED
WARRANY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
This warranty provides you with speciîc
legal rights, and you may also have
additional rights that vary from state
to state.
To obtain warranty coverage, contact the
Impact Customer Service Department to
obtain a return merchandise authorization
(âRMAâ) number, and return the defective
product to Impact along with the RMA
number and proof of purchase. Shipment
of the defective product is at the
purchaserâs own risk and expense.
For more information, or to arrange
service, visit
www.impactstudiolighting.com or call
Customer Service at 212-594-2353.
Product warranty provided by the Gradus
Group.
www.gradusgroup.com
IMPACT is a registered trademark of the
Gradus Group. Š 2015 Gradus Group LLC.
All Rights Reserved
All other trademarks are the property of
their respective owners. Š Copyright 2015
Gradus Group
⢠Keep away from strong magnetic îelds.
Strong static or magnetic îelds
produced by devices such as cell
phones and radios may lead to
malfunction.
⢠Observe precautions when handling
batteries. Batteries may leak or explode
if improperly handled.
Please observe the following precautions
when using batteries with this product.
- Use only batteries listed in this manual.
Do not mix new and old batteries or
different brand batteries.
- Read and follow all warnings and
instructions provided by the battery
manufacturer.
- Do not attempt to short-circuit or
disassemble batteries.
- Do not put batteries in a îre or apply
direct heat to them.
- Do not attempt to install batteries in the
reverse direction.
- Batteries may leak when fully
discharged. To avoid damage to the
product, be sure to remove the batteries
if the product will not be used for an
extended period of time, or if the battery
power is low.
- Should îuid from damaged batteries
come into contact with skin or clothing,
rinse immediately with fresh water.
1. Unable to trigger a îash by pressing
the Test button or the cameraâs shutter
release:
⢠Make sure the batteries are installed
properly and the transmitter is
powered on.
⢠Check the DIP switches to see that
the transmitter and receiver are set
to the same channel.
⢠Check if the transmitter is îrmly
seated in the cameraâs hot shoe.
2. Signal disturbance or shooting
interference (lights not îring or îring
irregularly):
⢠Try using a different channel.
3. Reduced operating range, or
monolights not îring.
⢠Check if batteries in transmitter are
drained. Try replacing with fresh
ones.
4. Flashes not responding to adjustments
made on transmitter.
⢠Check that transmitter and receiver
are set to the same channel
⢠Check that the transmitter and
receiver are set to the same group
⢠Check if the îash power is out of
adjustment range (e. g. îash has
1.0-6.0 power adjustment range but
remote is set to 7.0).
Adjusting Power Output: Use the + and -
buttons to adjust the power of the
selected group up or down.
Product Specifications
| Brand: | Impact |
| Category: | Remote trigger |
| Model: | ControlSync 16 |
Do you need help?
If you need help with Impact ControlSync 16, ask a question below and other users will answer you
Remote trigger Impact User Manuals
17 October 2024
17 October 2024
17 October 2024
17 October 2024
17 October 2024
17 October 2024
17 October 2024
Remote trigger User Manuals
Latest Remote trigger User Manuals
20 October 2024
15 October 2024
15 October 2024
15 October 2024
13 October 2024
13 October 2024
13 October 2024
13 October 2024
