Mini LT Power Pack
INSTRUCTIONS
TM
Congratulations on your purchase of the Impact Mini LT Portable Power Pack.
Enjoy the many benets of portable battery power, such as longer shooting
time, shooting on location, and the ability to use both the dedicated Impact
LiteTrek 4.0 Monolight and portable ashes. With a fully charged Power Pack,
you can achieve 650* ashes at full power, and 3500* ashes at the lowest
power setting.
Features
• Powers the Impact LiteTrek 4.0 Monolight and/or portable ash units
• Automatic power on/off prevents battery drainage
• 400W/s using the LiteTrek 4.0 Monolight
• Lightweight and compact size
• Digitally controlled
• Long lasting and reliably built
• Fast battery swap system for extended shoots
• Two power outlets
Contents
• Power Module
• Battery Pack
• Charger
• Leather Shoulder Case with Shoulder Strap
Warning
• Do not attempt to disassemble the Portable Power Pack.
• Unplug from power source when not in use
• Do not allow moisture or liquids to come in contact with the battery pack, charger or cables
• Keep away from heat, re, dust, and ammable oil and gases
• Do not place metal objects near the power outlets
• Do not use damaged cables – replacements are available from your Impact retailer
• Use the appropriate power cables for the intended ash unit
• Never exchange the battery pack in wet or damp conditions
• Charge only with the supplied Impact charger
• Keep out of reach of children
Impact provides optional Flash Cables that connect between the Impact Mini
LT Portable Power Pack and a portable ash unit. See your Impact dealer for
a cable that is compatible with your model of ash.
Impact CZ Canon Flash Cable for LiteTrek system
For Canon
®
ash heads: 580EXII, 580EX, 550EX, MR-14EX, MT-24EX
Impact CKE Nikon Flash Cable for LiteTrek system
For Nikon
®
ash heads: SB-800, SB80-DX, SB-900, SB-28
Page 2 Page 7
10M 25M 50M 75M 100M 10Y 25Y 50Y 75Y 100Y
Optional Flash Cables
*Number of ashes varies according to charge state, temperature, and maintenance
DO NOT EDIT
OR REVISE ARTWORK
We will not approve any artwork
which has been altered by the vendor
FORWARD YOUR PROOFS
to mabel.li@asia.bhphotovideo.com
FOR APPROVAL
BEFORE FINAL PRODUCTION
DO NOT BEGIN PRODUCTION
WITHOUT PRIOR APPROVAL OF PROOFS
Page 6 Page 3
10M 25M 50M 75M 100M 10Y 25Y 50Y 75Y 100Y

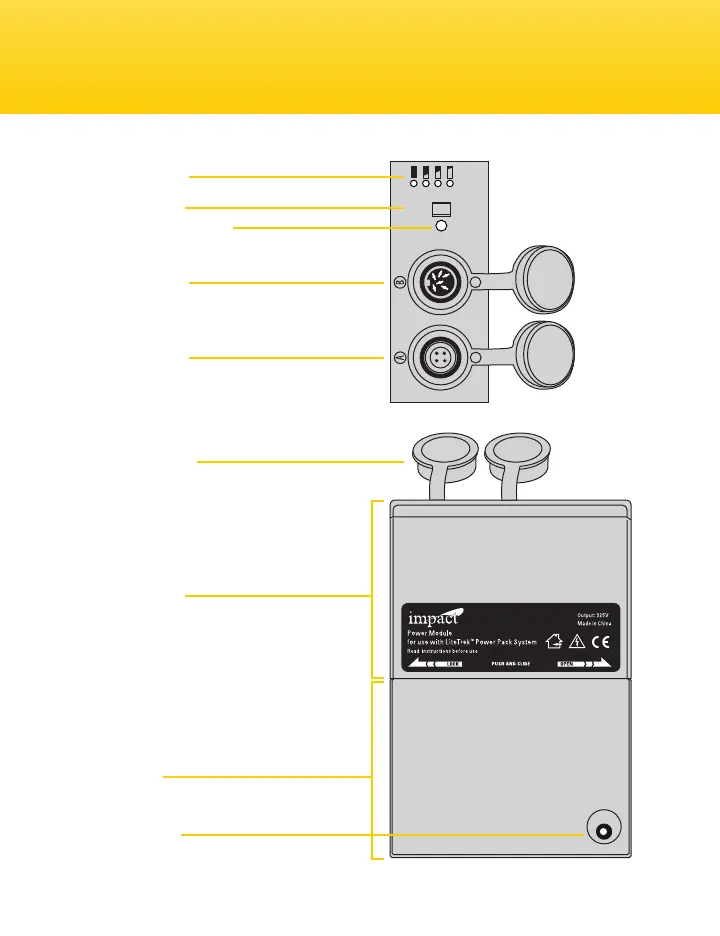

OverviewSpecications and Troubleshooting
Battery Gauge Top View
Side View
*Number of ashes varies according to charge state, temperature, and maintenance
ON•OFF
POWER
PROFESSIONAL
Power Switch
Protective Caps
Charger Input
Power Module
Swappable
Battery Pack
Power/Indicator LED
Power Outlet B
CZ, CKE tap for most portable ashes
Power Outlet A
For Impact LiteTrek 4.0 Monolight
Specications
Battery Type Rechargeable Lithium Ion
Power Output 325V
Power Input 12V (only use Impact LiteTrek chargers)
Current 7.2A
Charging Time Approximately 4 hours
Flashes per Full Charge* 650 (full power); 3500 (1/64 power)
Recycle Time 1-3.5 seconds
Fuse 40A
Troubleshooting
The battery pack includes overheat protection, which will automatically shut off function if
the device reaches a temperature of 158°F (70°C). In the event that this happens, switch off
the power module (if connected) and wait until the unit has had time to cool.
Symptom Solution
The power cable is plugged in,
but the power indicator on the
power module does not illuminate.
The power module shuts down after
being turned on, even though the
battery is fully charged.
Verify that the cables are not damaged,
are securely connected, and are the
correct cables for the ash in use.
Make certain that the battery pack
is securely seated into the power
module.
