Page 1/6

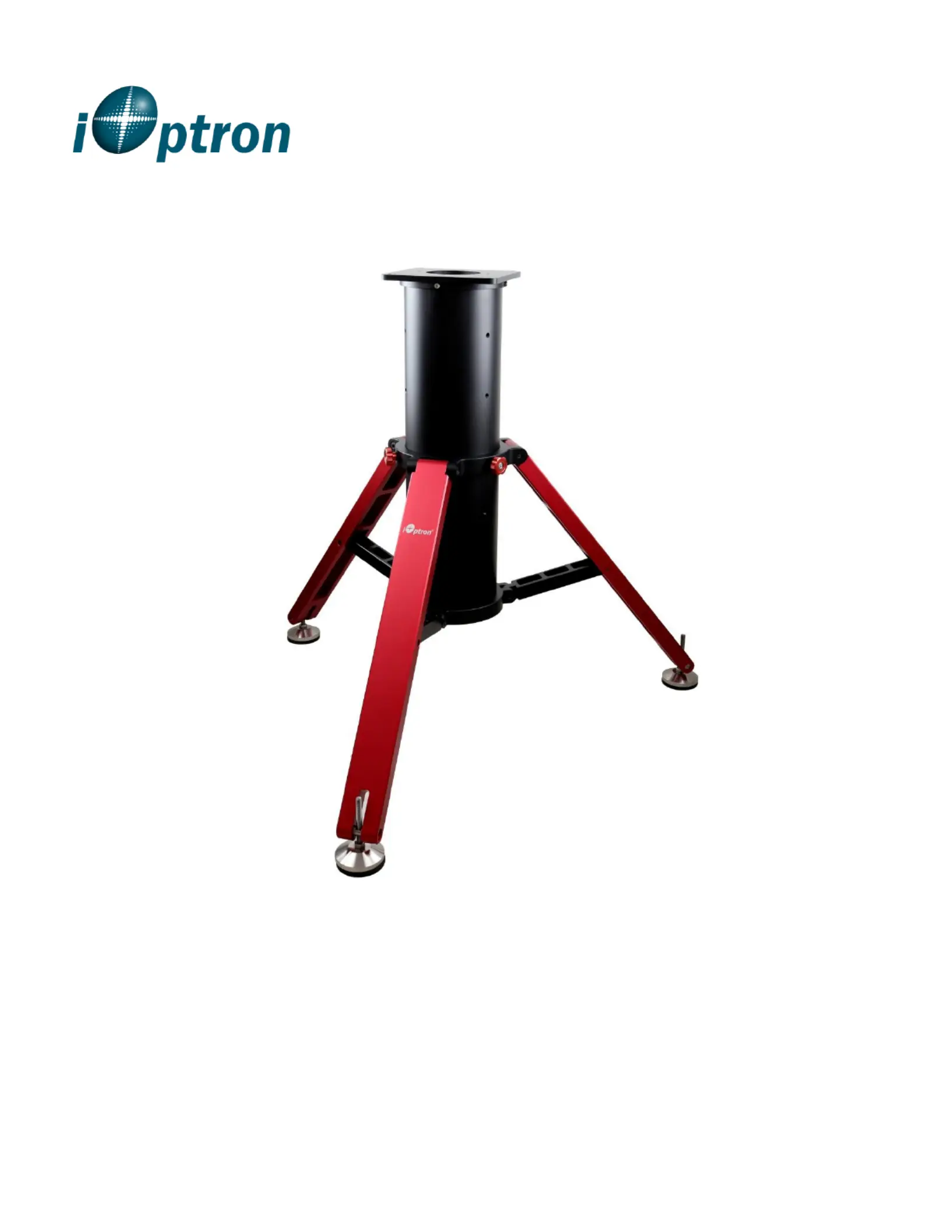

iOptron
®
Tri-Pier 360
Instruction Manual
Product #8037
®
Tri-Pier 7 360 #803
The iOptron
®
heavy duty Tri-Pier 360 combines the strength and stableness of a pier with the flexibility
of a tripod. It is designed for iOptron CEM120 GOTO mounts. Other iOptron mounts can be mounted
onto the Tri-Pier 360, with possible low latitude limitation. It also can be used for other brand mount with
a proper customized mounting adapter.
CEM70
CEM60
iEQ45 Pro/iEQ45
AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
CEM40/GE 5 (need MiniPier or MiniPier top plate 8032PT) M4 8032
Paramount MyT (no adapter needed)
Takahashi (EM-200), SkyWatcher (HEQ5/EQ6/NEQ6/AZEQ6), Celestron (CGEM/CGEM-DX),
Orion Atlas (EQ-G/AZEQ-G) ( need Tri-Pier adapter 8036-TK)
Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036- AP)
ZEQ25/CEM25 (need Tri-Pier adapter 8036-25)
Celestron CGX/CGX-L (need top plate -CGX) 8039
Specications:
Max Payload
360 lbs (165 kg)
Self weight
~42 lbs ( kg) 19
Material and Finish
Aluminum Alloy (CNC), anodized
Pier diameter
7 1/8" (181 mm)
Pier Wall Thickness
1/4" (6.35 mm)
Adjustable height
-40" (813-1015 mm) 32"
Uneven ground range
2" (51 mm)
Leg maximum spread
Ø42" (Ø1065 mm)
Pier dimension folded
Ø11"x 31” (Ø280 x 785 mm)
Warranty
One year limited
Assembly:
1. Take the Tri-pier out from the package. Remove the protecon foams.
2. Unlock the locking knobs on the mounng collar.
3. Move the Center Column up or down to desired height where there is a hole on the Center Column. Lock the
Locking Knob to secure the pier.
Locking Knob
Mounng Collar
