Khind FZ295 Manual
Read below đ the manual in Italian for Khind FZ295 (24 pages) in the Freezer category. This guide has been helpful for 17 people and has been rated 4.5 stars on average by 2 users

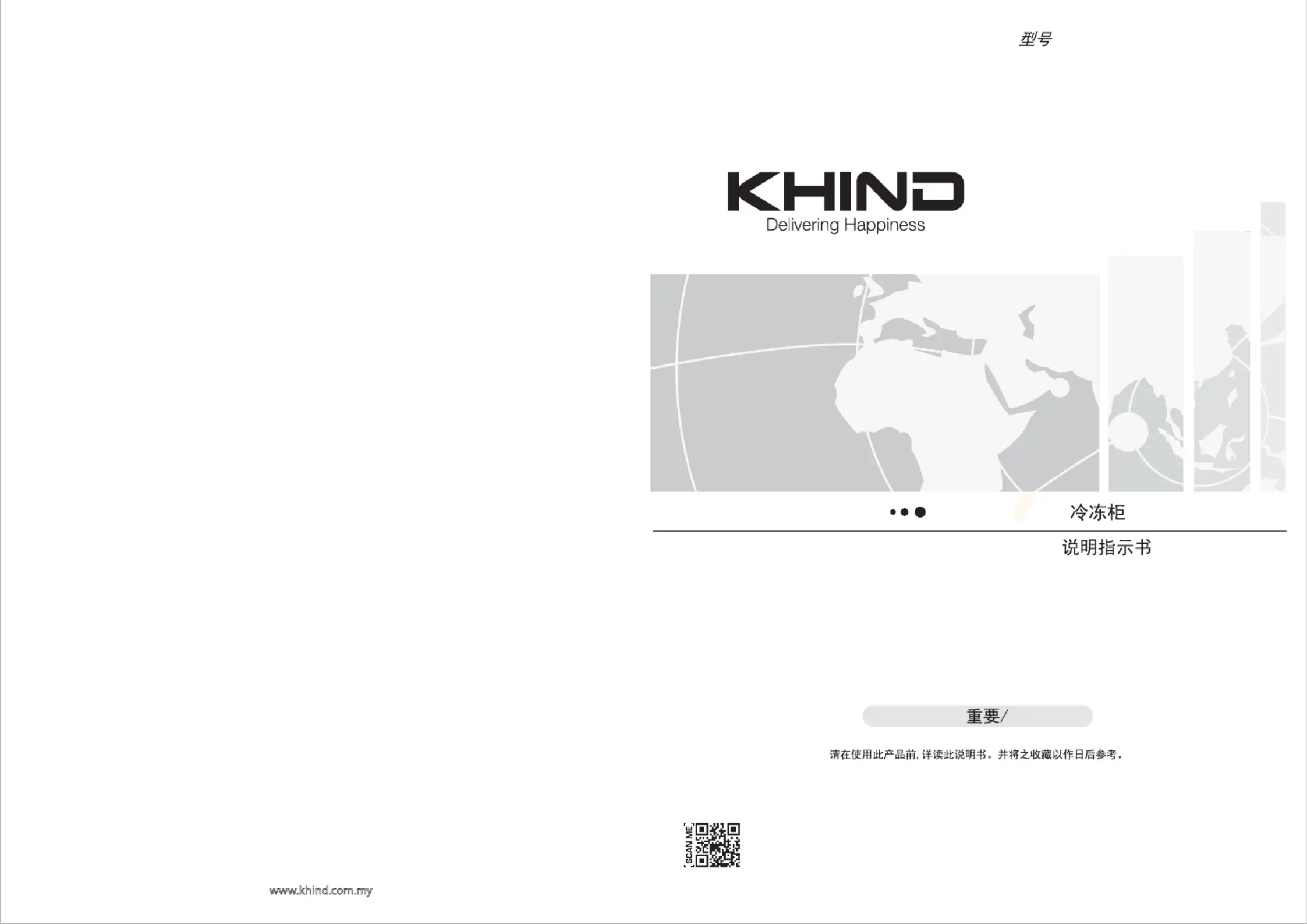

Page 1/24
model /
FZ99/ FZ295/
FZ142/ FZ208
P/N: 40-50907-02
Chest Freezer
/
/
Peti Dingin Sejuk
Instruction Manual
/
/
Buku Panduan
Please read this manual carefully before operating this product. Keep this manual handy for further reference.
Sila baca buku panduan ini dengan teliti sebelum menggunakan produk ini. Simpanlah untuk rujukan masa depan.
Important / Mustahak
This manual is also ailable online.av
www.khind.com.my
2 23
1.1 Safety and warning information
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualiîed persons in order to avoid a hazard.
3. Must use separate, well-earthed and 3 core cable & plug top.
4. Do not squeeze, fold, knot or damage the cord.
5. Keep children away from package and its parts. Danger of suîocation from folding cartons and plastic îlm.
6. Do not climb, sit, stand or lean on the unit.
7. When repairing or cleaning the appliance, pull out the plug.
8. When pulling out the plug, do not pull cord to avoid cord damage.
9. The appliance should be recycled by appointed institutions. Personal handling may cause danger.
Please follow according to local regulations regarding the disposal of the appliance for its îammable
blowing gas.
10. This appliance is intended for household used only, do not use outdoors.
DANGER
1. Do not put îammable & explosive material inside (e.g. alcohol, gasoline etc).
Risk of explosion and îre!
2. Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment.
Risk of explosion!
3. Do not touch food or metal container in the freezer compartment with wet hands. Do not put frozen food
straight from the freezer compartment into your mouth.
Risk of low-temperature burns!
4. Do not store explosive substances such as aerosol cans with a îammable propellant in this aerosol.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility wgich is nevertheless îammable.
Safety Precaution Information
!
WARNING
1. Do not damage the refrigerant circuit. Refrigerant leakage may ignite or cause eye injuries. Wash the eyes
at once and see a doctor.
2. Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer. (e.g. heaters, electric ice maker, etc.)
Do not use microwave oven, rice cooker and voltage regulator on the top of the appliance.
3. Keep ventilation holes, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. To avoid hazard due to instability of the appliance, it must be îxed in accordance with the instructions.
5. Do not use electrical appliances inside the food storage compartment of the chest freezer.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
22
3
1. Keep as upright as possible during handling, tilt <45Ë, never upside down or horizontally and do not roll
unit on an uneven surface at high speed.
2. The freezer should be placed in ventilation area avoiding direct sunlight, heat source and rain. There
should be no corrosive gases in surrounding air.
3. Keep stable placing and adjusting the four castors when necessary.
4. All packaging material should be removed. Do not use bottom foam as vibrator proof material.
Hea rct sou es
<45
1.2 Reminder Before Use
1.3 Installation
1.4 Electrical Connection
The freezer should be placed on the even floor, preferably in a well ventilated room and as far away as possible
from any source heat. Any side of the freezer should be at least 4â(10cm) from the wall so that the warm air
from the compressor motor and the mild heat from the cabinetâs exterior are all circulate freely.
4â(10cm)
4â(10cm)
4â(10cm)
4â(10cm)
Connect this appliance to the electricity supply using a 13A three pin plug (single receptacle power source)
WARNING - this appliance must be earthed. The wires in this mains lead are colored in accordance with the
following code:
Yellow-Green - Earth
Blue - Neutral
Brown - Live
Ensure that all connections are tight and that there are no loose strands or wire left free or insulations on the
leads trapped under the termina
l in the plug, also that the cord clamp on the plug grips the outer sheath of the
cord.
1.5 Daily Usage
Safety Precaution Information
!
taking frozen food out later from the freezer.
Product Specifications
| Brand: | Khind |
| Category: | Freezer |
| Model: | FZ295 |
