Page 1/36
Dwg Name: 1390320ART
Dwg No: 1390320 Rev: A
ECO No: 31136 Pkg Dwg Ref: 1290502
Color Reference: N/A
INSTRUCTION MANUAL
Battery-Powered Geared Cable Cutters
BAT20-G SERIES
Geared Cable Cutters
ENGLISH
FRANÇAIS pg. 25
ESPAÑOL pg. 13
• 20V Lithium Ion
• Cuts up to:
1590 MCM ACSR*
1500 MCM Aluminum*
1000 MCM Copper*
1/2" EHS*
*See specic models for capacities
1390320ART - BAT20-GD-Series Geared Cable Cutters Instruction Manual - GEN 2.indd 1 1/25/2019 4:50:32 PM
Dwg Name: 1390320ART
Dwg No: 1390320 Rev: A
ECO No: 31136 Pkg Dwg Ref: 1290502
Color Reference: N/A
2
GENERAL SPECIFICATIONS
Klein Tools BAT20-G Series Geared Cable Cutters are designed for professional cable cutting applications.
• Power Source: 20V Li-Ion battery
• Cutting Capacity: For the exact cutting capacity of your model, please refer to markings on tool blade or visit
www.kleintools.com.
Specifications subject to change.
ENGLISH
NOTE: There are no user-
serviceable parts inside.
Please contact Klein Tools for
an authorized service center.

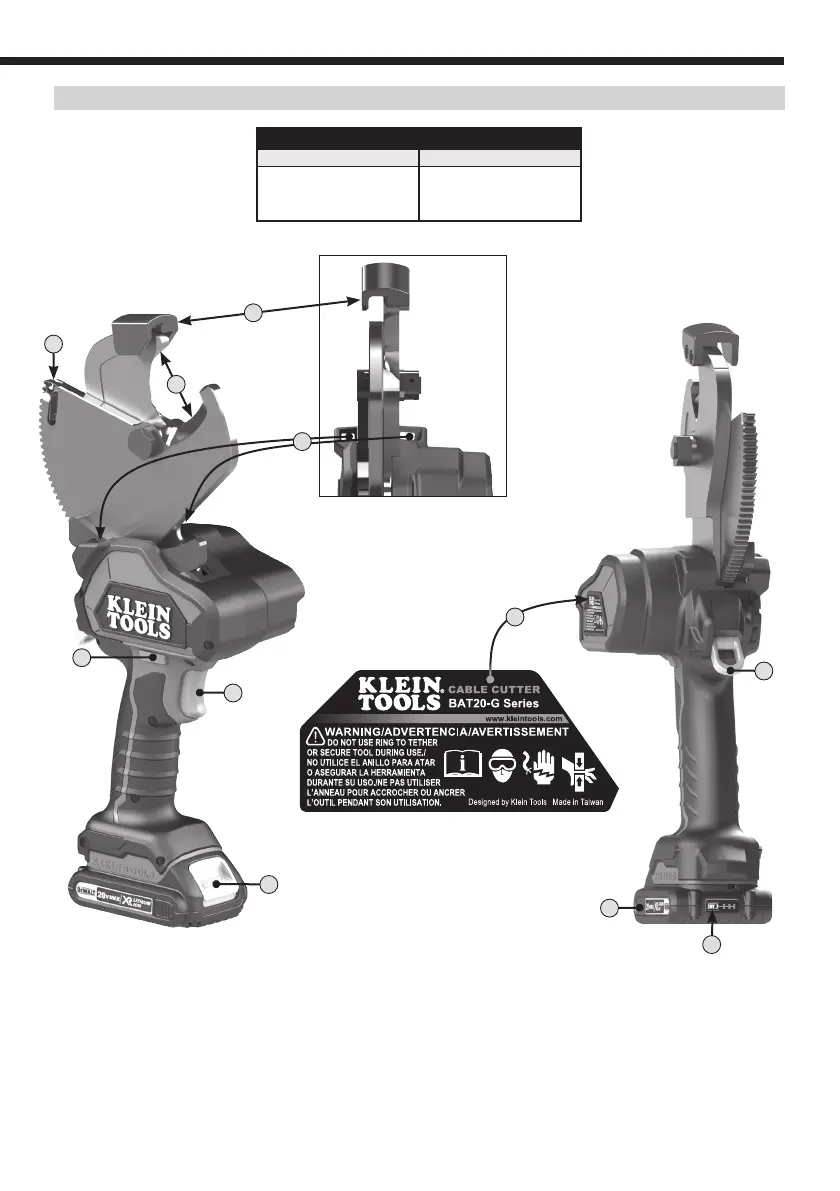

FEATURE DETAILS - CLOSED-JAW MODELS
4
9
10
11
12
7
6
1
Trigger
6
Fuel gauge button
11
Moving blade carrier
2
Forward/Reverse/Lock Trigger Button
7
Lift ring
12
Moving blade replaceable insert
3
Work Lights (x2)
8
Side Warning Label
13
Replaceable forward gear guide
4
Battery pack
9
Fixed blade carrier
14
Replaceable reverse gear guide
5
Battery release button
10
Fixed blade replaceable insert
11
10
9
12
13
14
1
5
3
2
8
RATED CAPACITIES - DO NOT EXCEED
MODEL BAT20-GD1 MODEL BAT20-GD10
750 MCM Copper 1000 MCM Copper-Soft
1500 MCM Aluminum 1500 MCM Aluminum
1590 MCM ACSR
NOT FOR STEEL OR ACSR
1/2" EHS
1390320ART - BAT20-GD-Series Geared Cable Cutters Instruction Manual - GEN 2.indd 2 1/25/2019 4:50:34 PM
Dwg Name: 1390320ART
Dwg No: 1390320 Rev: A
ECO No: 31136 Pkg Dwg Ref: 1290502
Color Reference: N/A
3
1
Trigger
6
Fuel gauge button
11
Moving blade carrier
2
Forward/Reverse/Lock Trigger Button
7
Lift ring
12
Moving blade replaceable insert
3
Work Lights (x2)
8
Side Warning Label
13
Replaceable forward gear guide
4
Battery pack
9
Fixed blade carrier
14
Replaceable reverse gear guide
5
Battery release button
10
Fixed blade replaceable insert
FEATURE DETAILS - OPEN-JAW MODELS
NOTE: There are no user-
serviceable parts inside.
Please contact Klein Tools for
an authorized service center.
2
12
4
1
7
5
6
3
1
Trigger
5
Battery release button
9
Blades
2
Forward/Reverse/Lock Trigger Button
6
Fuel gauge button
10
Blade Guide
3
Work Lights (x2)
7
Lift ring
11
Replaceable forward gear guide (not shown)
4
Battery pack
8
Side Warning Label
12
Replaceable reverse gear guide
10
9
8
RATED CAPACITIES - DO NOT EXCEED
MODEL BAT20-G2 MODEL BAT20-G7
400 MCM Copper 600 MCM Copper
900 MCM Aluminum 1000 MCM Aluminum
795 MCM ACSR
NOT FOR STEEL OR ACSR
1390320ART - BAT20-GD-Series Geared Cable Cutters Instruction Manual - GEN 2.indd 3 1/25/2019 4:50:35 PM
