Max RhapsodyDP88 Manual
Max
musical instrument
RhapsodyDP88
Read below đ the manual in Italian for Max RhapsodyDP88 (25 pages) in the musical instrument category. This guide has been helpful for 26 people and has been rated 4.5 stars on average by 2 users
Page 1/25

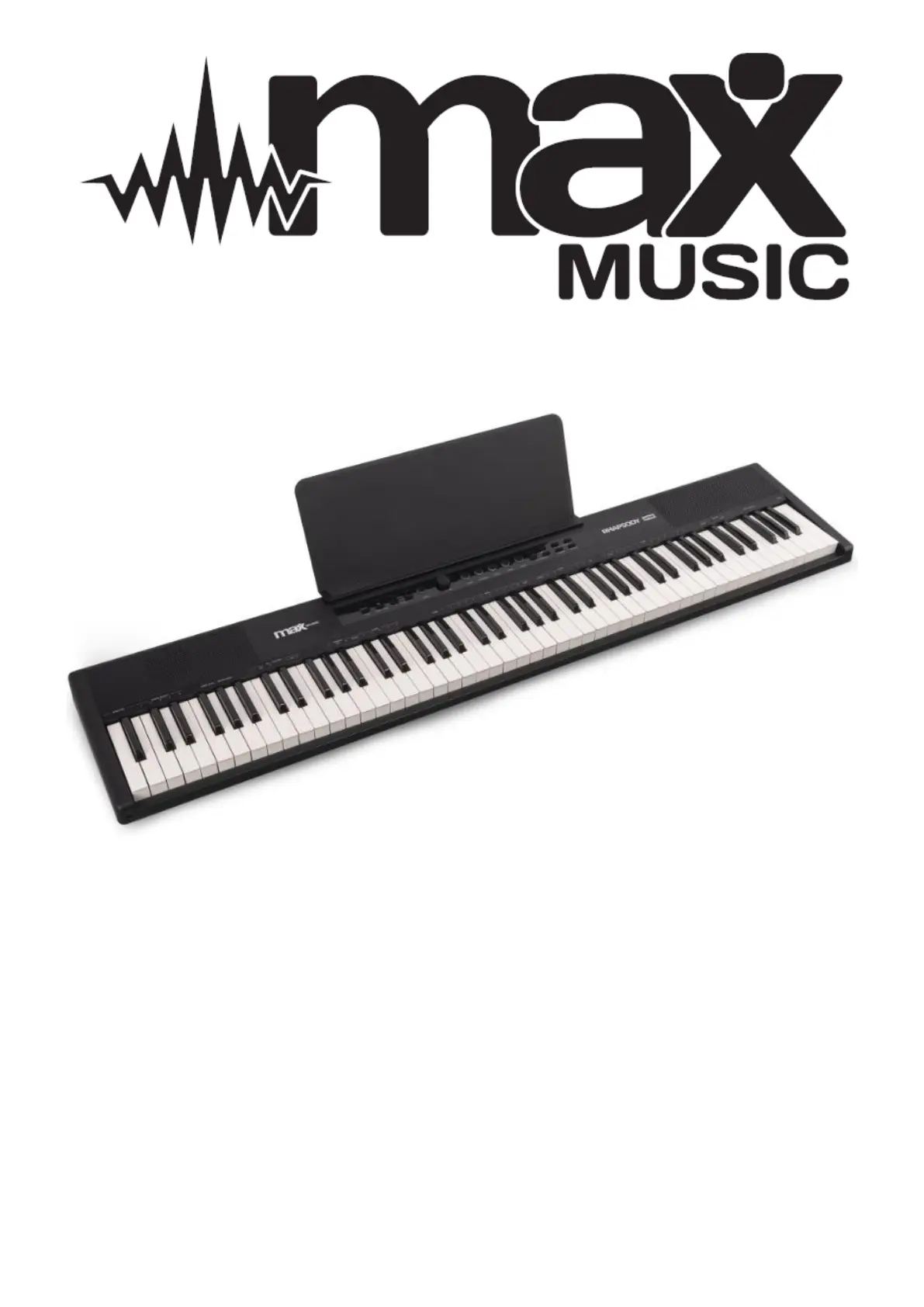

RhapsodyDP88 Digital Piano 88key
Ref. nr.: 130.065
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL DâINSTRUCTIONS
INSTRUKCJA OBSĹUGI
NĂVOD K POUĹ˝ITĂ
V1.0
ENGLISH
Congratulations to the purchase of this Max Music product. Please read this manual thoroughly prior to using the product in
order to benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions
to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock.
Keep the manual for future reference.
- Prior to using the product, please ask advice from a
specialist. When the unit is switched on for the first time,
some smell may occur. This is normal and will disappear
after a while.
- The unit contains voltage carrying parts. Therefore do
NOT open the housing.
- Do not place metal objects or pour liquids into the
product. This may cause electrical shock and
malfunction.
- Do not place the product near heat sources such as
radiators, etc. Do not place the unit on a vibrating
surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A
faulty or damaged mains lead can cause electrical shock
and malfunction.
- When unplugging the product from a mains outlet,
always pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they
need to be replaced by a qualified technician.
- If the product is damaged to such an extent that internal
parts are visible, do NOT plug the unit into a mains outlet
and DO NOT switch the product on. Contact your dealer.
Do NOT connect the product to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the
product to rain and moisture.
- All repairs should be carried out by a qualified technician
only.
- Connect the product to an earthed mains outlet (220-
240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used
for a longer period of time, unplug it from the mains. The
rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of
time, condensation may occur. Let the unit reach room
temperature before you switch it on. Never use the
product in humid rooms or outdoors.
- During operation, the housing may become hot.
- To prevent accidents in companies, you must follow the
applicable guide lines and follow the instructions.
- Do not repeatedly switch the product on and off. This
shortens the life time.
- Keep the unit out of the reach of children. Do not leave
the unit unattended.
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits of dust and
grease. In case of malfunction, always seek advice from
a specialist.
- Only operate the product with clean hands.
- Do not force the controls.
- If the product has fallen, always have it checked by a
qualified technician before you switch the product on
again.
- Do not use chemicals to clean the unit. They damage the
varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise serious
damage and/or dangerous radiation may occur.
- Switch the product off prior to unplugging it from the
mains and/or other equipment. Unplug all leads and
cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when
people walk on it. Check the mains lead before every use
for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power
outlet match. If you travel, make sure that the mains
voltage of the country is suitable for this product.
- Keep the original packing material so that you can
transport the product in safe conditions
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should
read and adhere to.
The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate
and their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and
35°C/95°F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other.
Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also
invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the
warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety
recommendations and warnings. This is also applicable to all damages in whatever form.
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to
drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might
damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains
voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must
also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate
electrical ground to avoid the risk of electrocution or fire.
CONTROLS
1. Speakers
Loudspeakers to reproduce the sound of the music played
CONTROL KEYS
2. Metro
Press to turn metronome on/off
3. Tap
Press twice at an even speed to set the tempo
4. Tempo
Press to increase or decrease the tempo value by one. Press and hold to change the tempo quickly
5. Demo
Press to start playing the demo song
6. Start/stop
Press to start/stop playing the demo song
7. Song
Press to select previous or next song
8. Power
Press to turn power on/off
9. Volume
Rotate to increase or decrease the volume
10. Piano
Press to select sound of piano
11. Keyboard
Press to select sound of keyboard
12. Organ
Press to select sound of organ
13. Synth
Press to select sound of synthesizer
14. Other
Press to select sound of other choice
15. R2/L octave
Press to increase or decrease the pitch of Sound 2 by one octave
16. R2/L volume
Press to increase or decrease the volume of sound 2 by one step. Press and hold to change the volume quickly
17. Transpose
Press to increase or decrease the pitch of the entire keyboard in semitone steps
18. Reverb
Press to set reverb on/off
19. Twinova
Press to turn the Twinova function on/off
FUNCTION KEYS
20. Function acces
Product Specifications
| Brand: | Max |
| Category: | musical instrument |
| Model: | RhapsodyDP88 |
