Maxim Willow 26288ICSG Manual
Read below 📖 the manual in Italian for Maxim Willow 26288ICSG (3 pages) in the Lamp category. This guide has been helpful for 10 people and has been rated 4.5 stars on average by 2 users
Page 1/3

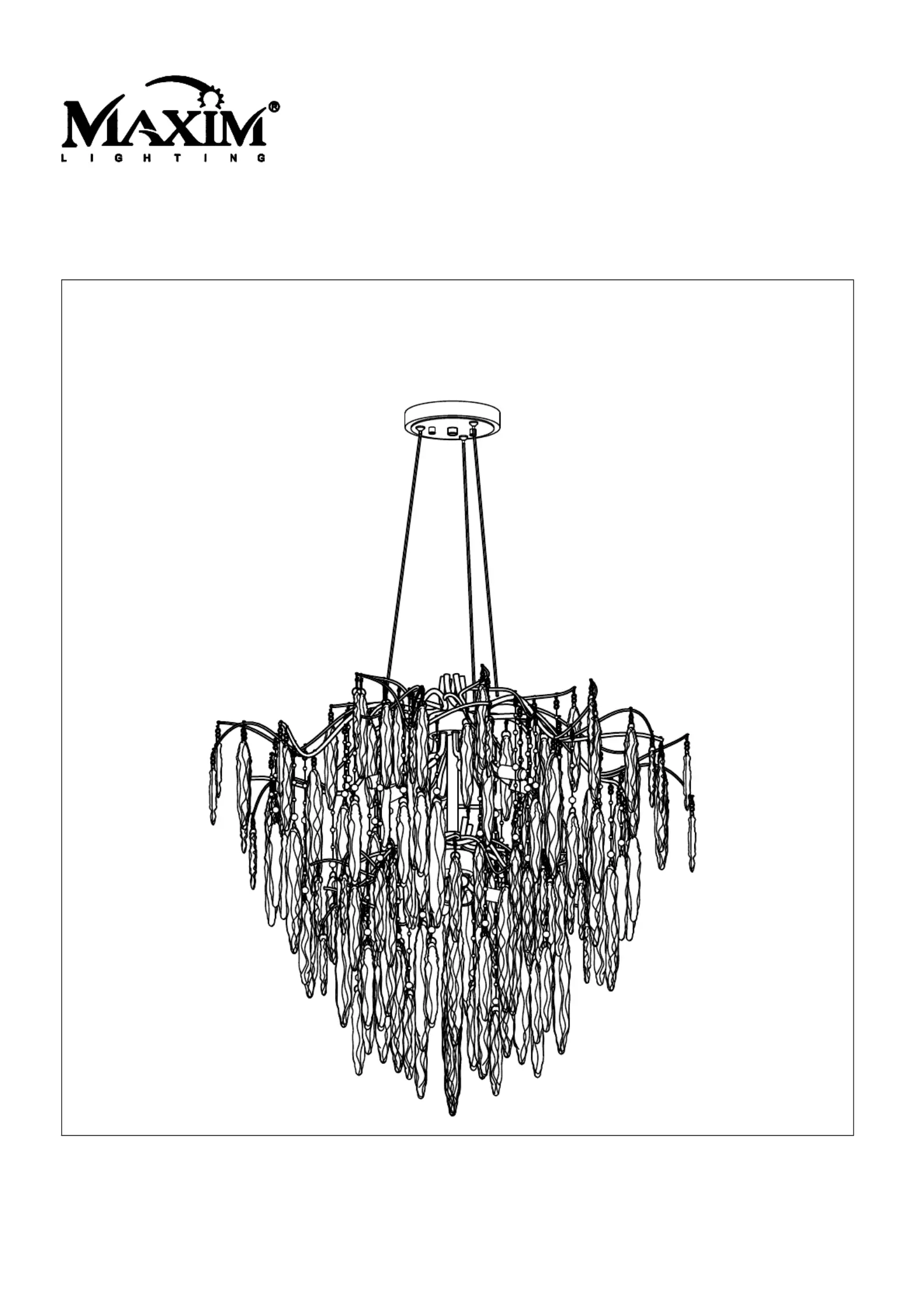

Page 1 of (3)
PRODUCT NAME: WILLOW
ITEM NUMBER: 26288ICSG
Please consult your electrician for hanging fixture and wiring.
G9 12X40W (Bulb included)
MADE IN CHINA
IMPORTANT: Turn off the power at the main fuse or circuit breaker box before starting installation.
Locate all hardware & components before discarding packaging
Mounting Strap (A) Body (B) Canopy (C)
Cleaning & Care:
Clean with soft cloth and a mild detergent.
Do not use abrasive cleaner. Page 2 of (3)
1).
Step.1:
Remove mounting bracket (A) from
fixture and install to electrical box.
3).
Step.3:
Wire fixture to wires in outlet box.
Green wire is fo Ground.
4).
Step.4:
2).
Step.2:
Press the wire restraint to adjust the
desired length of cable. Secure the
cables.
3
C
A
D
B
F
G
Bulb (F)Nut (D)
(A)
(E)
E
(A)
(C)
(L)positire
ground wire (green wire)
(N)neutral
Install body (B) to Mounting Strap (A)
and tighten Screw (D) through the hole
of canopy (C) on the Mounting Strap
(A).
C
D
IMPORTANT: Glass mounting
Page 3 of (3)
3
THE UPPER
GLASS
THE LOWER
GLASS
1
1
1
2
2
2
3
4
4
4
5
5
5
6
6
7
6
6
6
2
2
4
5
34
4
4
2
1
1
2
2
1
THE UPPER
GLASS
THE LOWER
GLASS
G
1 2 3
4
5
6
7
30pcs
G
42pcs
14pcs
36pcs
18pcs
26pcs
1pcs
CRI2628XIC-4.75 CRI2628XIC-6.5 CRI2628XIC-9.5 CRI2628XIC-11 CRI2628XIC-14 CRI2628XIC-16 CRI2628XIC-18.75
Product Specifications
| Brand: | Maxim |
| Category: | Lamp |
| Model: | Willow 26288ICSG |
