Page 1/5
www.memphiscaraudio.com
#MEMPHISAUDIO
AUDIO SINCE 1965

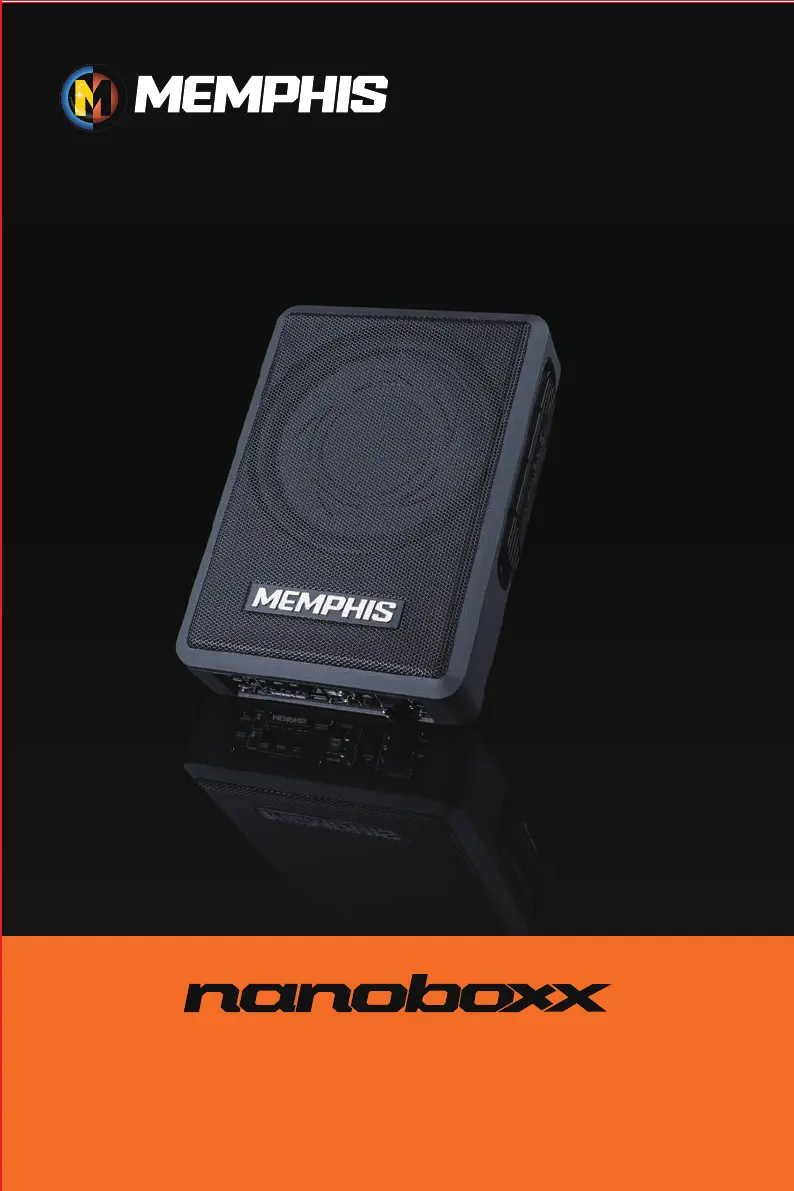

NANO110P
10” Under Seat Powered Bass System
NANO110P
B
A
C D E F G H I J K
A. POWER STATUS LED
The LED indicator light glows GREEN when power is ON and
no problems are present. If one of the protection circuits
comes on, the light will change to RED
B. PHASE SHIFT
Use this switch to compensate for time alignment
issues. These issues are usually the result from having
the subwoofer at a different distance from the listener
than the other speakers in the system.
C. AUTO POWER ON
NOTE: If you experience a POP noise from the subwoofer
when powering ON/OFF, confirm you have it wired to the
remote output of the head unit as shown in FIGURED 4.
NOTE: The low pass filter frequency can be higher or lower
than the standard. There is a +/- 20% tolerance.
The AUTO POWER ON (ON/OFF) is for high level
(speaker-level) connections. When the switch is in the ON
position, the subwoofer will AUTO POWER ON when there is
signal input present. If the amplifier does not detect a
signal, the amplifier will auto turn OFF. If you prefer to
use the remote turn on/off connection, switch can be
changed to OFF.
D. LOW PASS FILTER
This control allows for the adjustment of the frequency
range you want the subwoofer amplifier to receive. The
subwoofer will reproduce all sounds BELOW the frequency
you set on the LPF.
E. BASS BOOST
The BASS BOOST feature will increase the sound level in
the bass frequencies.
F. INPUT GAIN CONTROL
After you’ve installed your system, turn this control to a
minimum.
Turn the head unit ON (the subwoofer will turn on via the
remote connection). Turn the head unit volume to 2/3 full
level.
Slowly turn up the subwoofer input gain control until you
hear a small amount of distortion. Begin reducing the
level until the distortion is completely gone. Level the
control at this setting.
G. REMOTE LEVEL CONTROL
Attach the included remote level control to control the
volume level of the subwoofer independently.
H. HIGH LEVEL (SPEAKER LOW) INPUTS
If your head unit does not have RCA outputs, you can use
the speaker outputs for the audio source for the
subwoofer. Use the supplied cable and wire harness to
connect the outputs properly as shown in the connection
diagram in this manual.
I. LOW LEVEL RCA INPUTS
Low level inputs are the recommended way to introduce
the audio signal to the subwoofer. If RCA outputs are
present on your head unit or other signal source
(processor etc) this is the preferred way to connect your
NANOBOXX
J. FUSE
DO NOT USE A FUSE WITH A DIFFERENT VALUE. and NEVER
replace the fuse with a wire, coin or anything other than
the recommended fuse rated for this device.
Be certain all power connections are mounted securely
and use the correct gauge wire for the NANOBOXX.
K. POWER INPUT TERMINAL
Product Specifications
| Brand: | Memphis Audio |
| Category: | Subwoofer |
| Model: | NANO110P |
