Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/11/20 INST99-7397B
INSTALLATION INSTRUCTIONS
99-7397B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
ISO DIN radio provision with pocket
ISO DDIN radio provision
Painted scratch resistant matte black
Retains factory steering wheel controls (pre-wired in included harnessing)
Radio harness included with connections to retain factory camera
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Panel clip legs • D) Pocket • E) Panel clips (2) • F) #6 x 3/8” Phillips screws (4)
• G) #8 x 3/8” Phillips screws (8) • H) Steering wheel control interface (not shown) • I) 6 volt factory camera adapter (not shown)
• J) Radio wire harness (not shown) • K) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench • T-25 Torx driver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly..................................................2
Kit Preparation....................................................2-3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision.....................................4
AXXESS Interface installation............................5-11
Final Assembly...................................................... 11
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Included in kit
Antenna Adapter: Included in kit
SWC Interface: Included in kit
6v Camera Adapter: Included in kit
A B C
G
D E
F
Kia Soul (Non-NAV) 2020
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
1.800.221.0932
|
MetraOnline.com
2

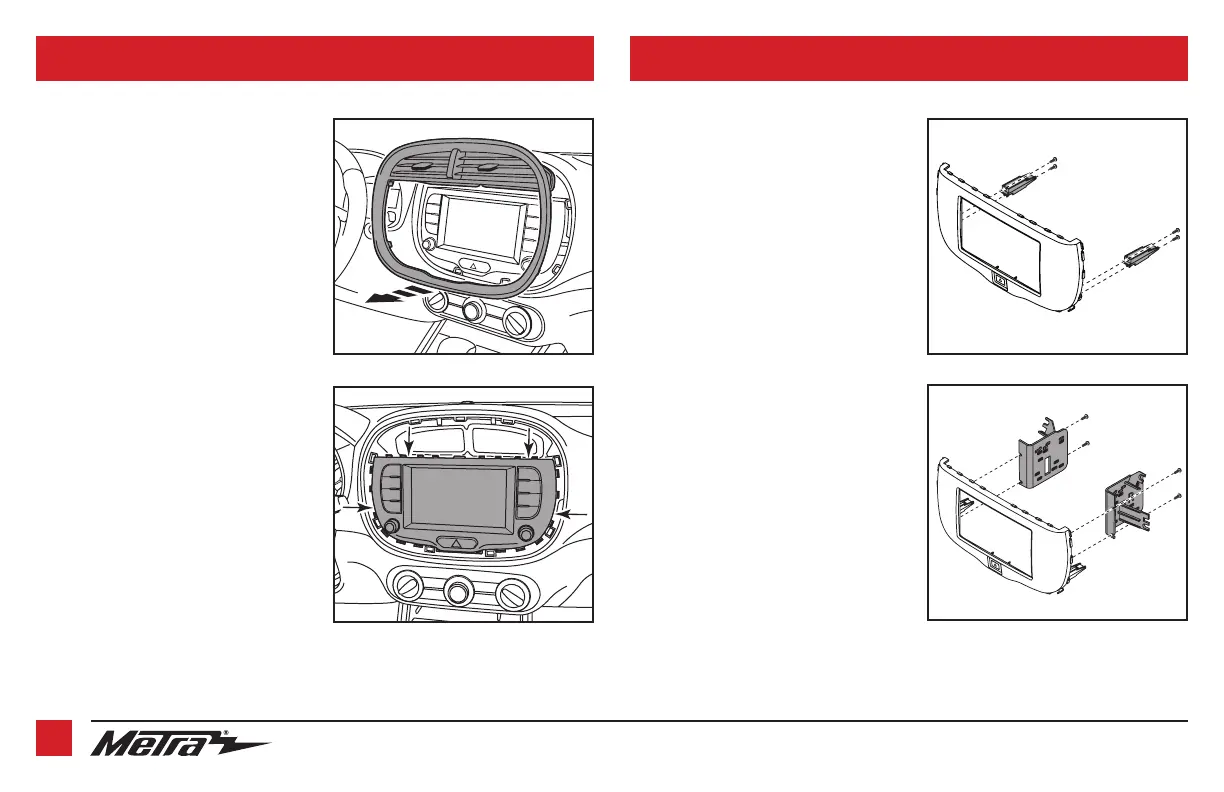

1. Unclip and remove the trim panel
around the factory radio including the
a/c vents. (Figure A)
2. Remove (4) Philips screws securing the
factory radio then unclip and remove
the radio. (Figure B)
Continue to Kit Preparation
(Figure B)
(Figure A)
1. Attach the (2) included clip legs onto
the radio trim panel using (4) #6 x 3/8”
Phillips screws supplied.
Note: The clip legs will only go on one
way. (Figure A)
2. Attach the radio brackets to the radio
trim panel using (4) #(8) x 3/8” Phillips
screws supplied. (Figure B)
2. Attach the panel clips to the clip legs.
Continue to Kit Preparation
DASH DISASSEMBLY KIT PREPARATION
(Figure B)
(Figure A)
REV. 11/11/2020 INST99-7397B
3
KIT PREPARATION
1. Cut the shaded area in the sub-dash to
allow room for the aftermarket radio.
The metal rear support can be bent
out of the way but some plastic at the
bottom must be removed for most
radios. (Figure A)
Continue to Kit Assembly
(Figure A)
Remove shaded areas
