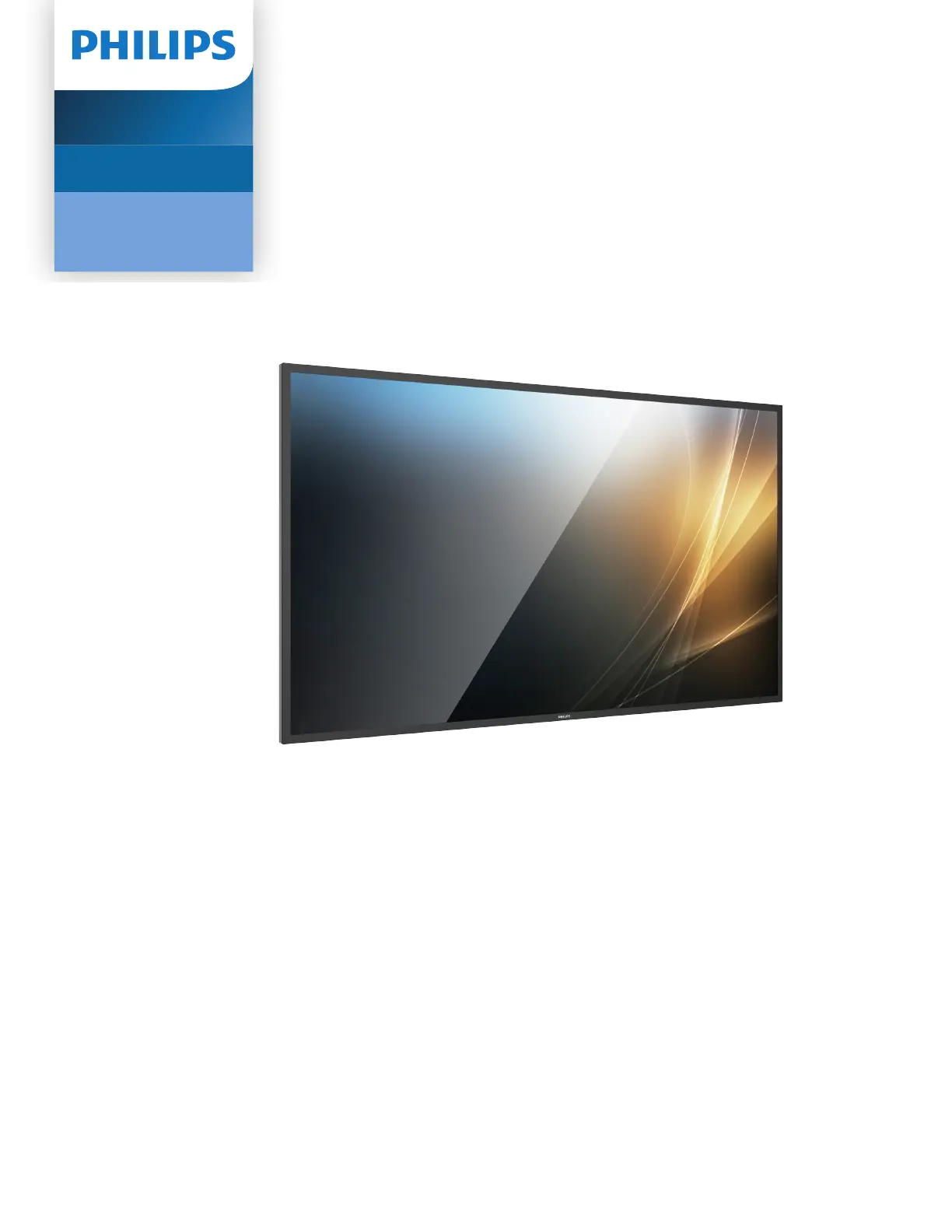

Page 1/12
User Manual (English)
www.philips.com/ppds
Signage Display
4000 Series
43BDL4650D
50BDL4650D
55BDL4650D
43BDL4650D/50BDL4650D/55BDL4650D
ii
Table Of Contents
1. Safety Instructions ......................................................... 1
2. Unpacking and Installation .......................................10
2.1. Unpacking ..........................................................10
2.2. Package Contents .............................................13
2.3. Installation Notes .............................................13
2.4. Mounting on a Wall ........................................14
2.5. Mounting in Portrait Orientation ...............15
3. Parts and Functions .....................................................16
3.1. Control Panel ..................................................... 16
3.2. Input/Output Terminals ................................. 17
3.3. Remote Control.................................................18
3.4. Inserting the batteries in the remote
control .................................................................22
3.5. Handling the remote control ........................22
3.6. Operating range of the remote control ....22
3.7. USB Cover ...........................................................23
3.8. AC Switch Cover ................................................24
3.9. Installing the 4G module ...............................25
4. Connecting External Equipment .............................26
4.1. Connecting External Equipment
(Multimedia Player) .........................................26
4.2. Connecting a PC ................................................26
4.3. Connecting Audio Equipment......................27
4.4. Connecting Multiple Displays in a Daisy-
chain Conîťľguration ........................................28
4.5. IR connection .....................................................28
4.6. IR Pass-through Connection ..........................28
4.7. Wire-connecting to Network ........................29
5. Operation .......................................................................30
5.1. Watch the Connected Video Source ...........30
5.2. Change Picture Format ................................... 30
5.3. Overview ............................................................. 30
5.4. Media Player ......................................................32
5.5. Browser................................................................35
5.6. PDF Player ........................................................... 39
5.7. Custom App .......................................................42
6. Setting .............................................................................43
6.1. Settings ................................................................43
6.2. Supplementary ..................................................57
7. OSD Menu ......................................................................59
7.1. Navigating the OSD Menu ...........................59
7.2. OSD Menu Overview .......................................59
8. Supported Media Formats .........................................69
9. Input Mode ....................................................................71
10. Pixel Defect Policy ........................................................73
10.1. Pixels and Sub-Pixels ........................................73
10.2. Types of Pixel Defects + Dot Deîťľnition ......73
10.3. Bright Dot Defects ............................................73
10.4. Dark Dot Defects ..............................................74
10.5. Proximity of Pixel Defects ..............................74
10.6. Pixel Defect Tolerances ...................................74
10.7. MURA ...................................................................74
11. Cleaning and Troubleshooting ................................75
11.1. Cleaning ..............................................................75
11.2. Troubleshooting ...............................................76
12. Technical Speciîťľcations ..............................................77
Warranty policy for Philips Professional Display
Solutions .........................................................................79
Index ..........................................................................................81
43BDL4650D/50BDL4650D/55BDL4650D
1
1. Safety Instructions
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than those speciîťľed in this documentation may result
in exposure to shock, electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your display:
This product is intended for use in professional installations in business settings only and is not suitable for domestic purposes.
Any use other than that for which this device is intended can void the warranty.
This product contains an operating system. If it is shut down directly using the AC switch, it may damage the program and prevent
it from powering on again. If the system is unable to power on due to frequent shutdowns, please try a factory reset. Please note
that all data stored in the system will be lost when the display is rebooted after a factory reset.
Operation:
• Keep the display out of direct sunlight and away from stoves or any other heat sources.
• Keep the display away from oil, otherwise the plastic cover may be damaged.
• It is recommended to set the display up in the well-ventilated place.
• Ultra-violet ray lter is necessary of outdoor operation.
• If the product will be used in extreme conditions such as high temperature, humidity, display patterns or operation time etc...
It is strongly recommended to contact Philips for Application engineering advice. Otherwise, its reliability and function may
not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations, Banks, Stock market, and Controlling
systems.
• Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics.
• Do not block the ventilation holes on the cabinet.
• When positioning the display, make sure the power plug and outlet are easily accessible.
• When turning o the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal
operation.
• Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your
local service center.
• Do not subject the display to severe vibration or high impact conditions during operation.
• Do not knock or drop the display during operation or transportation.
• The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour.
Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt.
• If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not
disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety
feature.
Maintenance:
• To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display,
grasp the frame to lift; do not lift the display by placing your hand or îťľngers on the LCD panel.
• Unplug the display if you are not going to use it for an extensive period of time.
• Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power
is oîť». However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your display.
• To avoid the risk of shock or permanent damage to the set, do not expose the display to dust, rain, water or an excessively
moist environment.
• If your display becomes wet, wipe it with dry cloth as soon as possible.
• If a foreign substance or water gets in your display, turn the power o immediately and disconnect the power cord. Then
remove the foreign substance or water, and send the unit to the maintenance center.
• Do not store or use the display in locations exposed to heat, direct sunlight or extreme cold.
• In order to maintain the best performance of your display and ensure a longer lifetime, we strongly recommend using the
display in a location that falls within the following temperature and humidity ranges.
• Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
