Chapter 4 System Disassembly
Page 3 of 10
4.1. System Disassembly Procedures
Please refer to the
disassembly procedures of
the G BG0M M7
Chapter 4 System Disassembly
Page 4 of 10

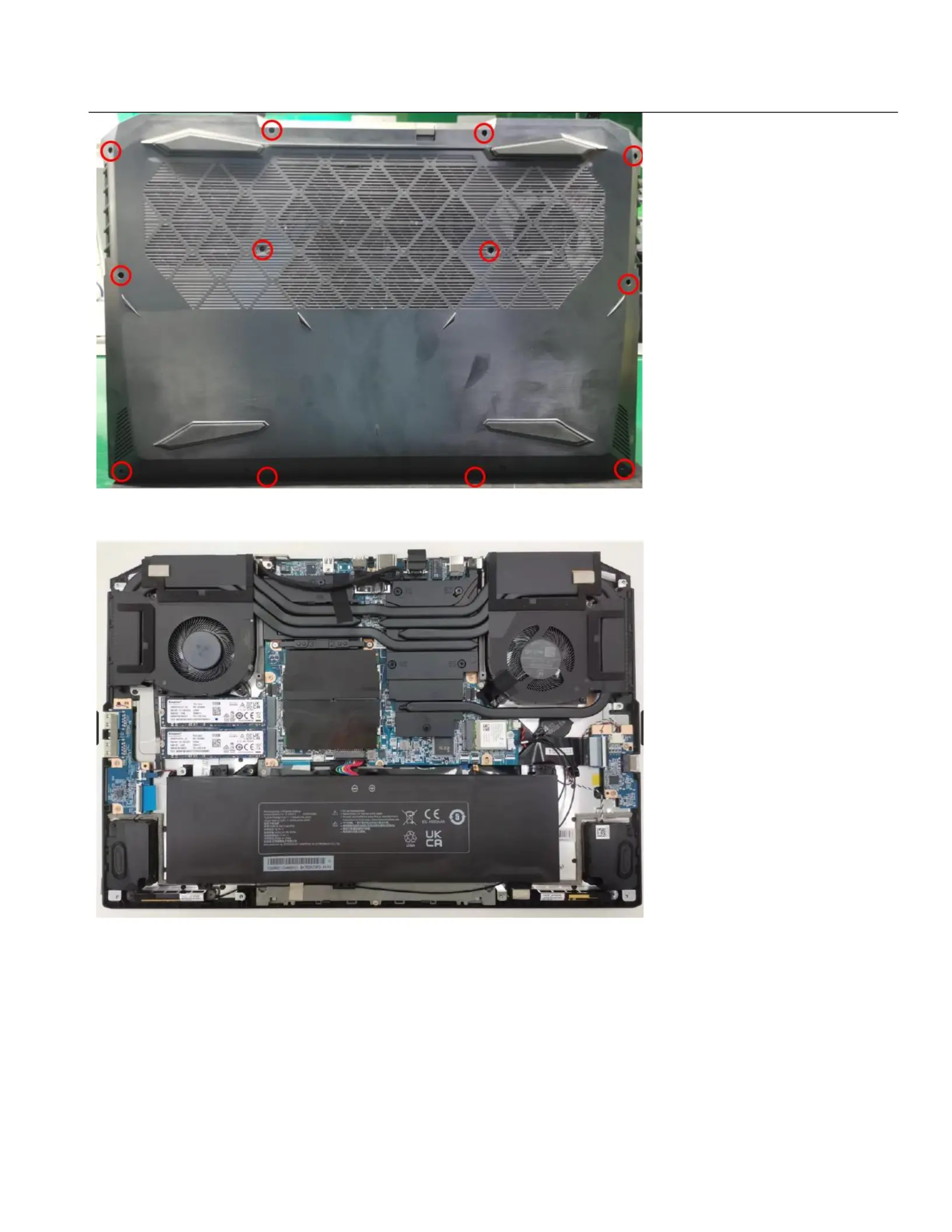

1. en Unfast twelve screws
and take out the bottom
cabinet.
electric screw driver torq
values:
2.0±0.2 kgf.cm
1 screwdriver bit #
Chapter 4 System Disassembly
Page 5 of 10
2. Unfasten Battery cable and
Unfasten four battery screws
then pull out the battery.
electric screw driver torq
values:
2.0±0.2 kgf.cm
1 screwdriver bit #
3. Unfasten three screws
disconnect the wlan antenna.
take out the SSD,WLAN
electric screw driver torq
values:
1.6±0.2 kgf.cm
1 screwdriver bit #
