Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: April 23, 2024
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Product Diagram
FD121-KVM-EXTENDER
Transmitter
Receiver
DisplayPort KVM Console Extender Over Fiber - 4K 60Hz
Component Function
1 Power / Connection LEDs • See LED Indicator Table
2 Power Supply Port • Connect the included Universal Power Adapter
3 Fiber Connection Port
• Use an LC-Terminated Fiber Cable to connect the
Transmitter and Receiver
4 Video Input Port • Connect a DisplayPort Video Source
5 USB Host Connector
• Connect to an available USB Port on the Host
Computer or HID Port on a KVM Switch
6 USB Status LEDs
• Orange when USB Devices are connected
• (Flashes 1~4 times to indicate connected USB
Device number)
7 Video Output Port • Connect a DisplayPort Display Device
8 USB-A HID Ports
• Connect USB Devices (e.g. Keyboard, Mouse,
Trackpad, Number Keypad, or Drawing Tablet)
Requirements
For the latest manuals, product information, technical specications, and declarations of
conformance, please visit: www.StarTech.com/FD121-KVM-EXTENDER
• Computer
• USB Enabled
• DisplayPort Output
• USB Keyboard and Mouse
• DisplayPort Display Device
• Duplex LC Fiber Cable (OM3)
• Multimode extends up to 300M
Package Contents
• Transmitter (Local Unit) x 1
• Receiver (Remote Unit) x 1
• 10G Multimode SFP+ Modules (Pre-Installed) x 2
• Universal Power Adapter (NA/EU/UK/ANZ) x 2
• USB-A to Mini USB-B Cables x 3
• Quick-Start Guide x 1
2
3
4
5
1
6
2
3
7
1
6
8
* Product may vary from image
Regulatory Compliance
FCC - Part 15
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could
void the user’s authority to operate the equipment.
Industry Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (A)/NMB-3(A)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Warranty Information
This product is backed by a two-year warranty.
For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss
of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the
product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the
limitations or exclusions contained in this statement may not apply to you.
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com Ltd.
45 Artisans Crescent
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Road
Brackmills,
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp
The Netherlands
Operation

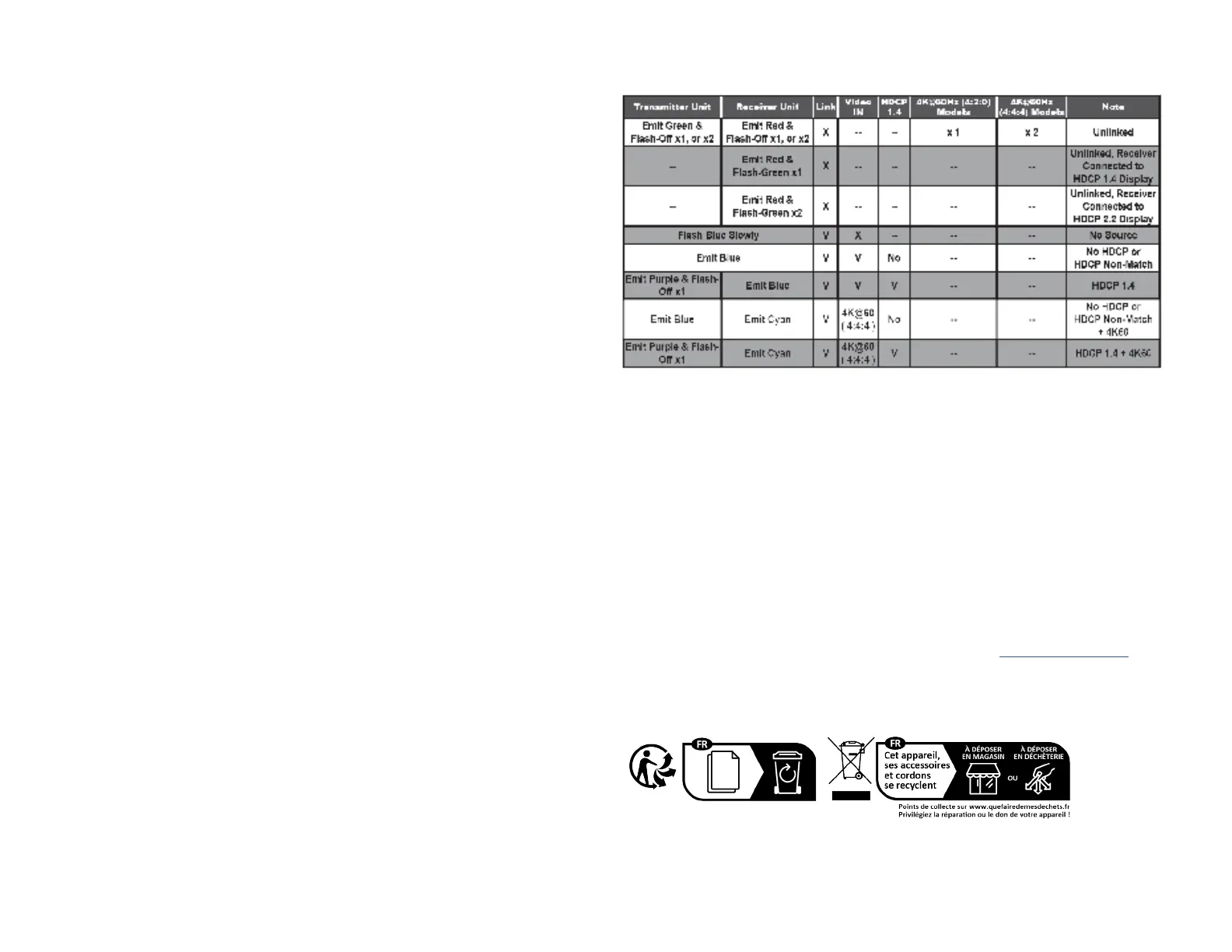

LED Indicators
Installation
1. Power o all Devices (e.g. DisplayPort Video Source, Computer, etc.) that will be
connected to the Transmitter and Receiver.
2. Connect the Host Device and all of the USB Peripherals to the Transmitter and
Receiver.
3. Connect a DisplayPort Monitor to the Video Output Port on the Receiver, using a
DisplayPort Cable (not included).
4. Connect a Computer or KVM Switch to the Video Input Port on the Transmitter,
using a DisplayPort Cable (not included).
5. Connect the Transmitter to the Receiver, using a Duplex Multi-Mode LC Fiber Cable
(OM3).
Note: The cabling cannot go through any networking equipment (e.g., router, switch,
etc.). Ensure the transmit and receive ber leads are reversed between the Local and
Remote Unit.
6. Connect the Transmitter and Receiver to Power Sources, using the included
Universal Power Adapters.
7. Power on all the Devices (e.g. DisplayPort Video Source, Computer, etc.) connected
to the Transmitter and Receiver.
