Page 1/14

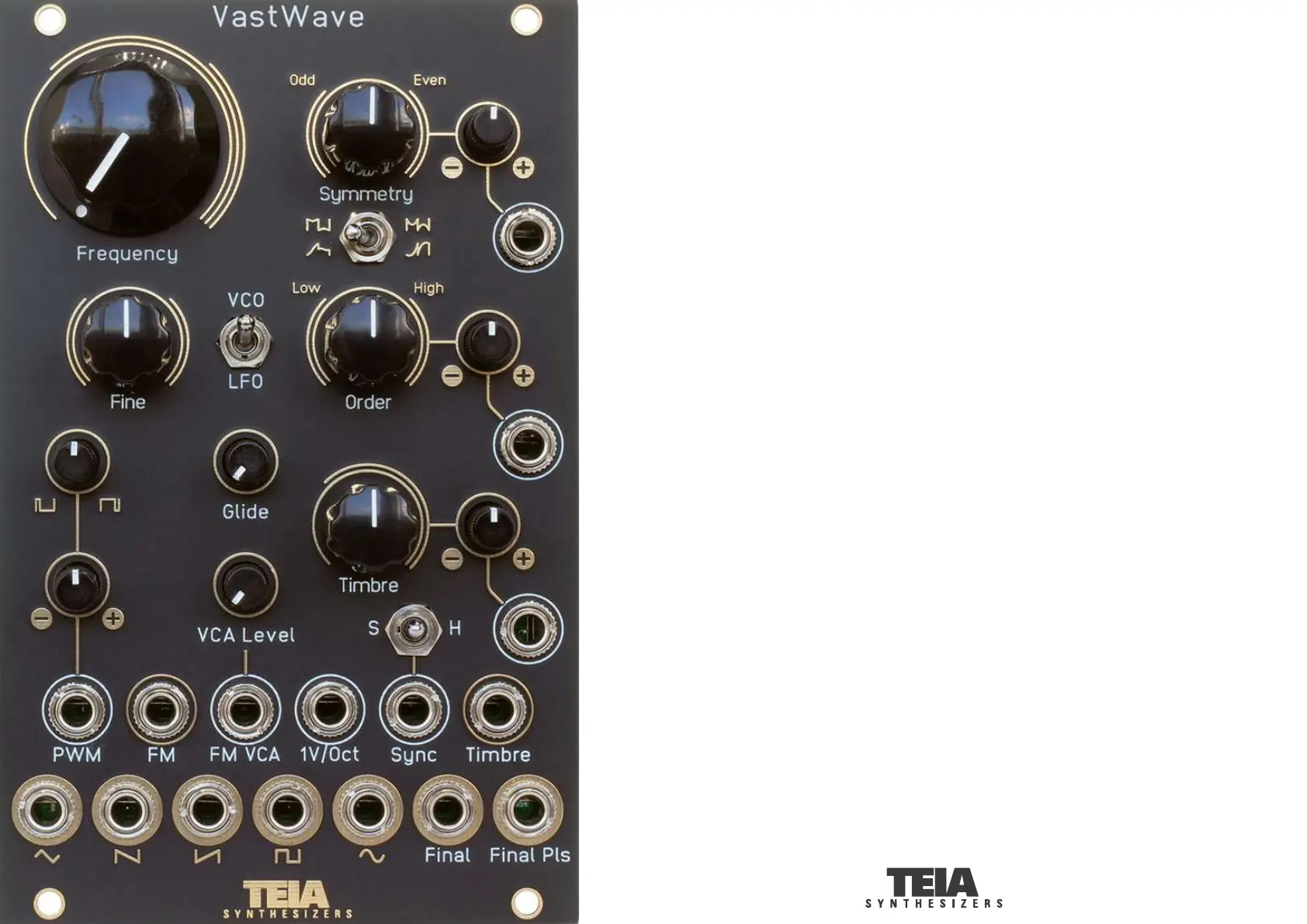

VastWave
Final
Final Pls
Sync
H
Timbre
FM
S
Timbre
1V/Oct
Frequency
Glide
VCO
LFO
Fine
HighLow
Order
FM VCA
PWM
EvenOdd
Symmetry
VCA Level
Analog Complex Oscillator
VastWave
1
VastWave is a complex analog Oscillator with advanced waveshaping
capabilities that invites new textural and harmonic exploration
beyond subtractive synthesis principles.
Crossfading between harmonically rich folded waveforms and
waveforms with Odd/Even harmonics, the VastWave waveshaper
expands on the Principal Oscillator heritage, bringing an additional
set of waveforms with Odd and Even harmonics and a pulse wave-
form derived from the Waveshaper’s Final output stage.
Furthermore the linear FM input has a dedicated VCA for external FM
amplitude modulation and an on board linear Glide delivers a more
musical approach to this classic feature.
Overview
2
Overview
Voltage controlled complex waveshaping.
Triangle core.
FM input with voltage controlled amplitude
for FM amplitude modulation.
On board linear Glide.
Voltage controlled Pulse-width modulation
for Pulse and Final Pls waveforms.
Modern temperature and tuning stability.
High Frequency (VCO) or Low Frequency
(LFO) operation.
External Timbre input with sine wave
normalization if no external source is
patched.
Attenuator/inverter knobs on all voltage
controlled inputs.
Inverted or double Sawthooth waveform
(selectable by jumper).
Features:
Width: 16HP
Depth: 33mm
Power consumption: ##mA +12 ##mA -12
Eurorack Format
Doepfer power connection
Specs:
