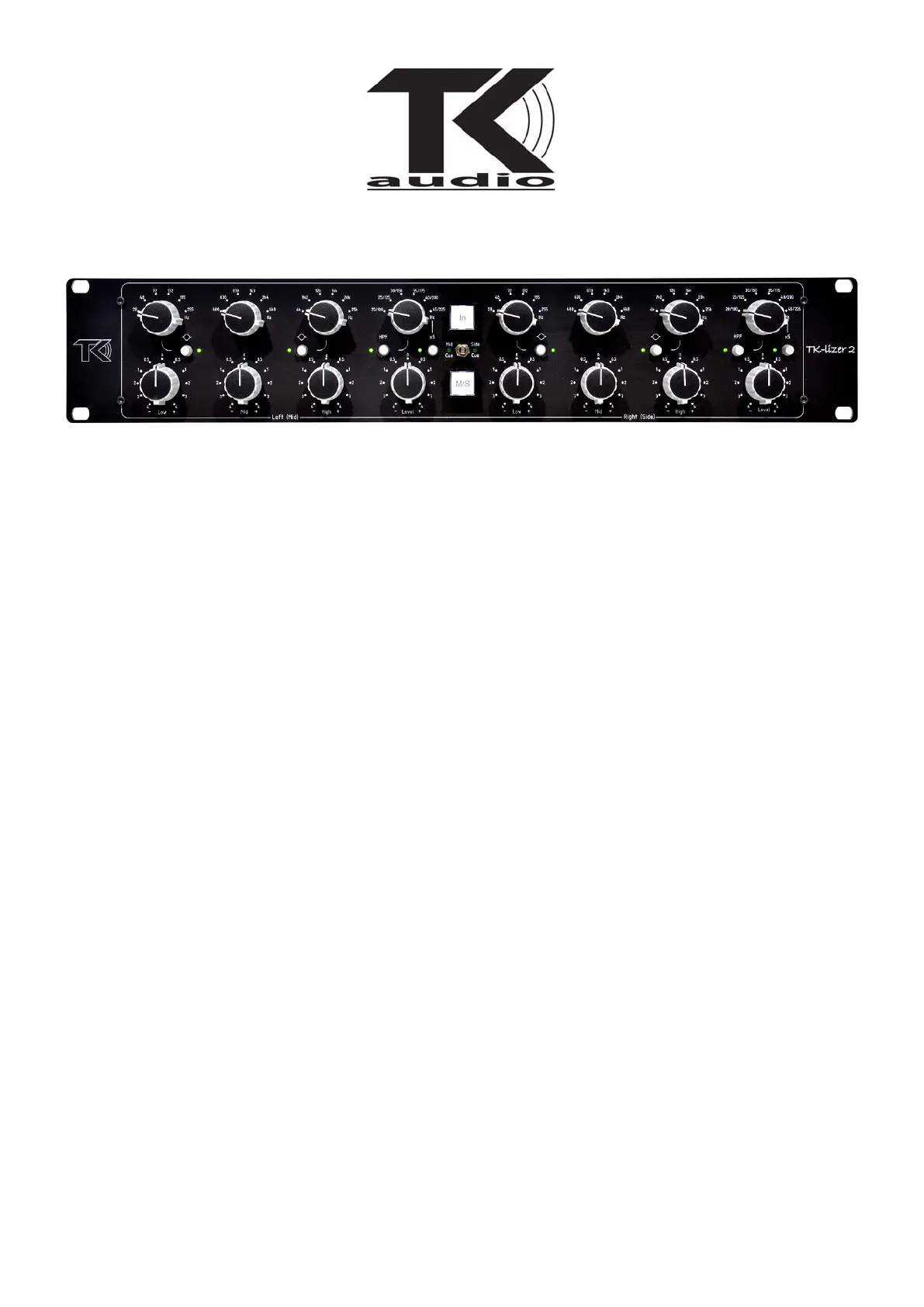

TK-lizer 2
Mastering EQ with M/S function
Thank you for buying the TK-lizer 2, manufactured and hand-assembled in Sweden and
thoroughly tested before leaving the factory.
The TK-lizer 2 is inspired of the Baxandall circuit from the 50’s. It’s a dual three-band EQ with low
and high bands switchable between shelf or peak. It has a high-pass filter with 12dB/oct slope, and
of course a level control for fine adjustments of the output level. To make the EQ even more useful it’s
also equipped with a M/S circuit. All controls are stepped for easy repeatability.
The controls:The controls:
The controls:The controls:
The controls:
Low freq: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz, switchable between shelf or peak.
Mid freq: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz.
High freq: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz, switchable between shelf or peak.
HPF freq: 20Hz, 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, or 100Hz, 125Hz, 150Hz, 175Hz, 200Hz,
225Hz with the x5 switch activated. 12dB/octave.
Cut/boost: -4dB, -3dB, -2dB, -1dB, -0.5dB, 0dB, +0.5dB, +1dB, +2dB, +3dB, +4dB.
Level: -4dB, -3dB, -2dB, -1dB, -0.5dB, 0dB, +0.5dB, +1dB, +2dB, +3dB, +4dB.
EQ in/out.
M/S in/out.
Cue switch for separate monitoring of the mid or side signal.
M/S mode:M/S mode:
M/S mode:M/S mode:
M/S mode:
When you select M/S mode the signal is split into M=mid (L+R) and S=Side (L-R) before the EQ, after
the EQ the signal is decoded back to L and R again.
None of the center information as bass drum, bass and lead vocal is present in the S channel, only
panned signals as guitars, drums, keys etc. In M/S mode you can affect the M and S signal
separately.
By using the high pass filter in M/S mode you can affect the lower range in two ways.
1. HPF on M channel cuts the low energy in the signal. (L and R)
2. HPF on S channel, frequencies below the selected frequency will be in mono. This is used when
cutting records and also to get a more focused low range.
In M/S mode you can also use the level controls to alter the stereo images, more S channel will widen
the image and less S channel will reduce the stereo images.
To be able to hear better what you are doing in M/S mode you can use the M and S cue switch to
listening to the M channel or S channel alone. The cued signal will be feeded to both channels then.
www.tkaudio.se

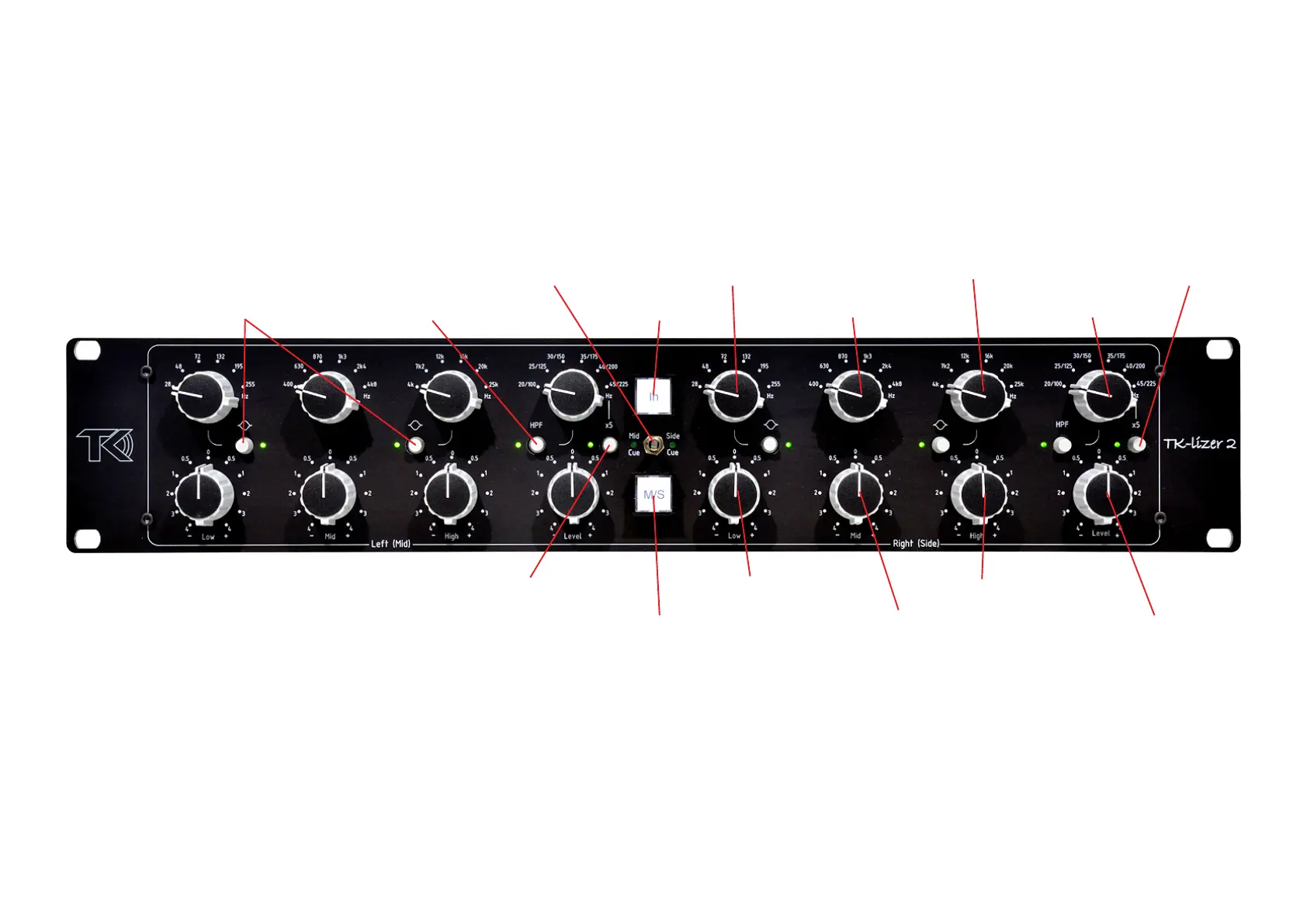

Low frequency
Shelf or peak mode HPF frequency
Output level +/-4dB
Mid frequency
High frequency
High cut/boost +/-4dB
Mid cut/boost +/-4dB
Low cut/boost +/-4dB
EQ in/out
M/S function in/out
M or S cue
HPF in/out
HPF frequency x5
HPF frequency x5
www.tkaudio.se
EU - Declaration of conforEU - Declaration of confor
EU - Declaration of conforEU - Declaration of confor
EU - Declaration of confor
mity / Överenstämmelseintygmity / Överenstämmelseintyg
mity / Överenstämmelseintygmity / Överenstämmelseintyg
mity / Överenstämmelseintyg
ProductProduct
ProductProduct
Product
TK Audio TK-lizer 2
115v - 200mA
230v - 100mA
Manufactor / TillverkareManufactor / Tillverkare
Manufactor / TillverkareManufactor / Tillverkare
Manufactor / Tillverkare
Thomas Kristiansson
Musikverkstan / TK Audio
Falkenbergsgatan 10
30233 Halmstad
Sweden
Halmstad, November 2018Halmstad, November 2018
Halmstad, November 2018Halmstad, November 2018
Halmstad, November 2018
Declaration of conforDeclaration of confor
Declaration of conforDeclaration of confor
Declaration of confor
mitymity
mitymity
mity
I declare under my sole responsibilty that this product, to which this declaration relates, is in
confomity with the following standards:
EN55013, EN55020:2002, EN61000-3-2, EN61000-4-2 and EN60065
Following the provision of 73/23/EEC, 89/336/EEC and 93/68/EEC.
ÖverenstämmelseintygÖverenstämmelseintyg
ÖverenstämmelseintygÖverenstämmelseintyg
Överenstämmelseintyg
Härmed intygas helt på eget ansvar att denna produkt, vilket detta intyg avser, uppfyller följande
standarder:
EN55013, EN55020:2002, EN61000-3-2, EN61000-4-2 och EN60065
Following the provision of 73/23/EEC, 89/336/EEC och 93/68/EEC.
