Page 1/18

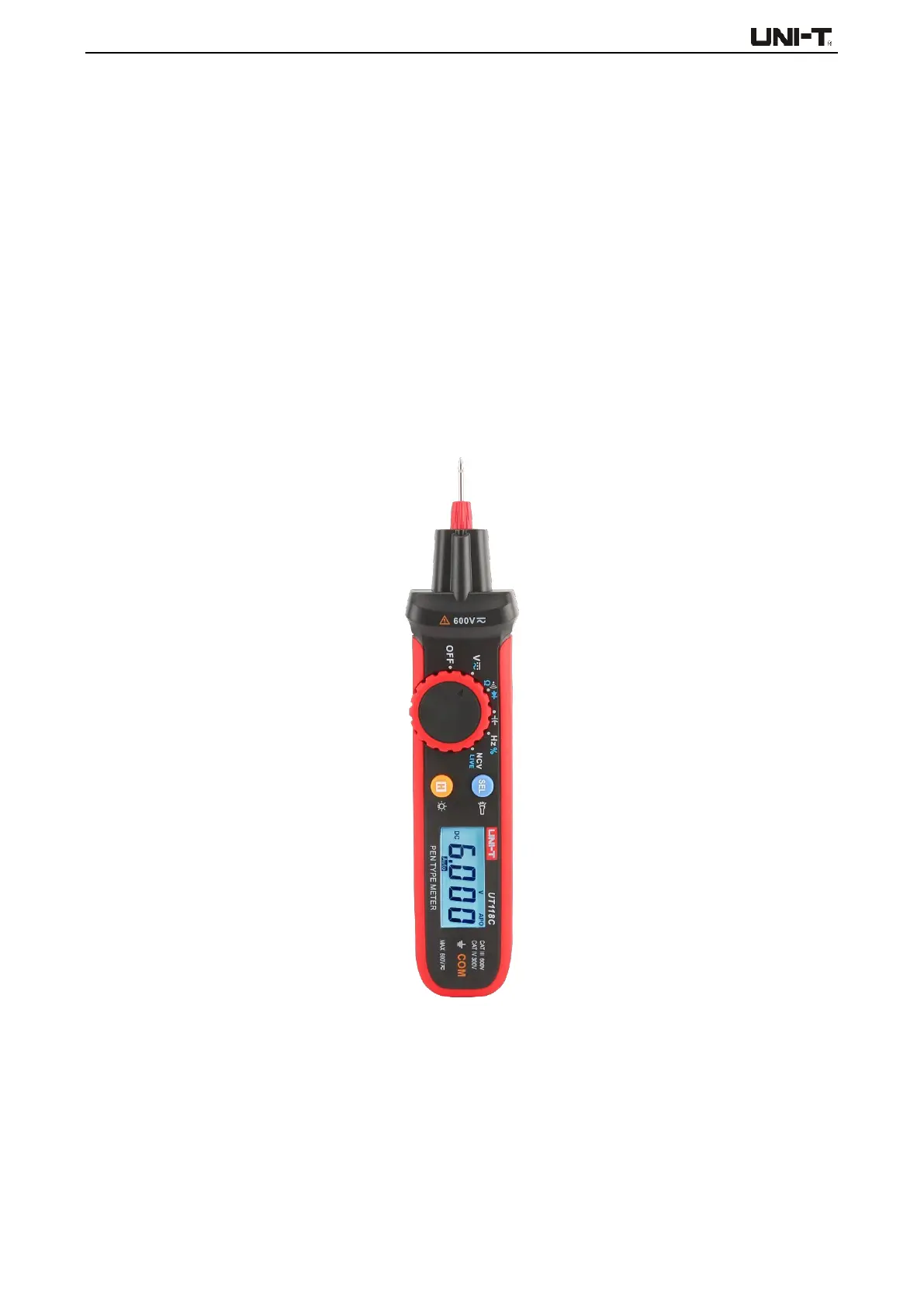

UT118C User Manual
1 / 18
UT118C
Pen type meter
User Manual
UT118C User Manual
2 / 18
Preface
Thank you for purchasing this brand new product. In order to use this product safely and correctly,
please read this manual thoroughly, especially the Safety Instructions part.
After reading this manual, it is recommended to keep the manual at an easily accessible place,
preferably close to the device, for future reference.
Limited Warranty and Liability
Uni-Trend guarantees that the product is free from any defect in material and workmanship within
one year from the purchase data. This warranty does not apply to damages caused by accident,
negligence, misuse, modification, contamination or improper handling. The dealer shall not be
entitled to give any other warranty on behalf of Uni-Trend. If you need warranty service within the
warranty period, please contact your seller directly.
Uni-Trend will not be responsible for any special, incidental or subsequent damage or loss caused
by using the device.
UT118C User Manual
3 / 18
1. Overview
UT118C is a 6000-Count True-RMS multimeter with high reliability and safety. It can be used in
narrow and dark environments and concentrated circuits by virtue of its compact shape, flashlight
and ultra-sharp probe tip. UT118C is designed with full-scale overload protection and unique
appearance, making it a new-generation measurement meter with more practical performances.
The multimeter can be applied to measure AC/DC voltage, resistance, diode, continuity, capacitance,
frequency, and duty cycle, detect non-contact voltage (NCV), and identify live wire, etc. UT118C has
multiple functions including data hold, low voltage indication, backlight, flashlight, auto-off,
automatic identification of continuity, resistance and diode, and more.
2. Features
1) Lightweight; easy to carry.
2) Compact design to allow for use in confined spaces.
3) Flashlight to enable measurement in dark environments.
4) Ultra-sharp gilded probe for testing concentrated circuits at circuit boards.
5) Designed with a probe holder and a lead slot to hold the test lead.
6) Comprehensive protection against misoperation; Capable of withstanding impact of 600V;
Designed with overvoltage alarm.
7) The ability to identify continuity, resistance and diode measurements automatically.
8) Large capacitance measurement (600nF~60mF).
9) The circuit is designed with automatic power-saving function; the power consumption in sleep
state is ≤80uA.
10) Adjustable probe tip length.
11) Designed with large-area red backlight as indicator.
Please carefully read the related contents about “Safety” and “Warning” in the User Manual, and
strictly adhere to the precautions of all warnings.
Warning: Please read the “Safety Information” carefully before using the Meter.
3. Accessories
Please contact your supplier immediately if any accessory is found missing or damaged.
User manual
1 pc
Test lead
1 pc
1.5V AAA battery
1 pc
Product Specifications
| Brand: | Uni-T |
| Category: | Multimeter |
| Model: | UT118C |
