BASSBOSS SSP218-MK3 Manual
Read below š the manual in Italian for BASSBOSS SSP218-MK3 (16 pages) in the Speaker category. This guide has been helpful for 29 people and has been rated 4.5 stars on average by 2 users
Page 1/16

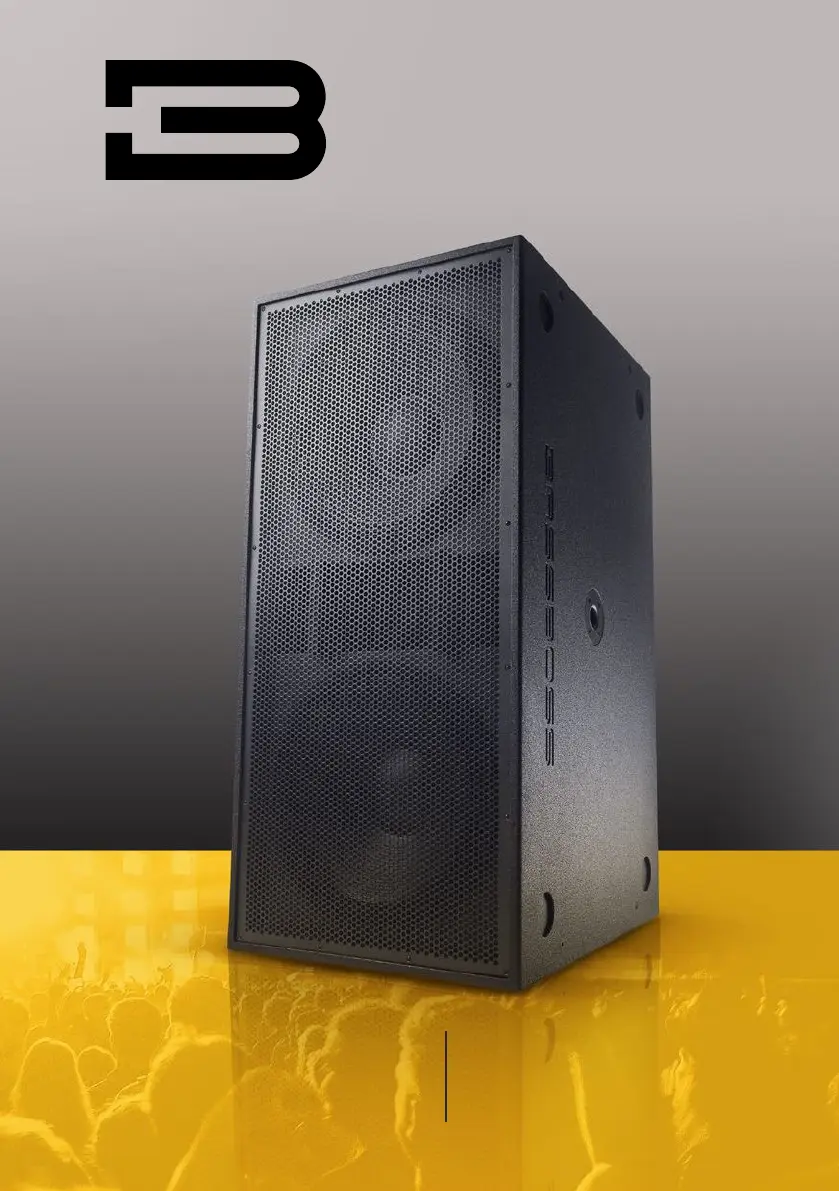

User ManUal
Double 18ā
Powered Subwoofer
SSP218-MK3
SSP218-MK3 User Manual
bassboss.com
3
2
Table of Contents
Overviewī 2
QuickīStartīGuideī 4
OutboardīProcessorīWarningī 5
SetupīProc edureī 5
OperationīandīControlsī 6
IndicatorīLEDsī 6
HowītoīUseītheīPresetsī 7
Pre-InstalledīOnboardīPresetsī 8
PowerīDistributionī 9
Troubleshootingī 9
CardioidīModeī 10
Specificationsī 11
Warrantyī 12
SafetyīInformationī 13
ImportantīNotesī 14
FCCīComplianceīNoticeī 14
Overview
The SSP218-MK3 design combines sensitivity, depth, power handling, fidelity and value. It oīers amazing
versatility and practicality for those who need a lot of low end for a wide variety of applications, delivering
massive output, reliably, consistently and with great fidelity.
The SSP218-MK3 sustains its output long-term and is practically impossible to blow thanks to the combination
of extremely rugged, very high power handling, long excursion drivers, carefully optimized cabinet and port
design and several eīective but transparent protection systems that are part of the integrated signal processing.
The protection systems eīectively prevent thermal overload of the voice coils and minimize long-term thermal
compression while having virtually no eīect on the transient response and peak output of the loudspeaker.
The SSP218-MK3 achieves extremely flat frequency response, measuring Ā±1.5dB from 32Hz to 100Hz. No
equalization is utilized to achieve this response. Unlike designs that require equalization, the SSP218-MK3ās
tone, response and sensitivity are native to the design. Competing systems that require bass-boost EQ to
achieve their stated response are still subject to the physical excursion and thermal limits of their drivers. The
EsteīmanualīestĆ”īdisponibleīenīespaƱolīenīnuestroīsitioīwebīenībassboss.com/support
Double 18ā
Powered Subwoofer
SSP218-MK3
SSP218-MK3 User Manual
bassboss.com
3
SSP218-MK3 system is optimized for full-power operation and is designed to operate at full rated RMS power
throughout its operating range while the woofers remain within their X-max specification. This allows it to
achieve very high output, low frequency sound with minimal distortion.
Versatility is one of the SSP218-MK3s greatest strengths. There are two 35mm pole sockets in each cabinet.
Having two sockets allows the subs to be deployed horizontally or vertically while still providing for smaller top
cabinets to be mounted on poles above the subs. In addition, using these sockets allows front-fills or larger
BASSBOSS top cabinets to be locked in place when stacked on the subs with no unsightly straps required.
The enclosures feature four large rubber feet and corresponding recesses in their tops to facilitate interlocking
the boxes when stacked. The feet also interlock with the available wheel carts, allowing multiple boxes to
be stacked on a cart for rapid deployment with minimal eīort. The stacked setās footprint measures 29.5ā x
48ā, making it easy to fit them securely in almost any commercial truck. The carts can accommodate up to 4
subwoofers, allowing for extremely tight truck-pack density. Alternatively, three-high stacks or 3-high cardioid
stacks can be pre-configured on carts, ready to roll in and rock!
The cabinets are made from 18mm Birch plywood, are extensively braced and feature 4 steel bar handles.
They are coated in weatherproof high-pressure Polyurea and the drivers are protected by a powder-coated,
perforated steel grille. The cones also feature a waterproof coating.
The SSP218-MK3 features a 5000W amplifier with an auto-sensing, globally compatible power supply that can
run on input voltages anywhere between 90 and 250 Volts. Full output power is available on anything over 110V.
The amplifierās peak-output voltage provides for intense high SPL hits while its sustained output is unparalleled
in its ability to deliver the liquid lows. The amplifier is passively cooled via its external heat-sink and by woofer-
generated air-flow through the port. When necessary, four blower-fans will engage to provide additional forced-
air cooling capacity in more extreme conditions.
New to the MK3 are Neutrik powerCON True 1 TOP (Total Outdoor Protection) waterproof mains connectors.
This permits the levels of multiple loudspeakers to be adjusted together and yet independently from the levels
of other groups of loudspeakers.
Electrical power is converted into the much more desirable acoustical power by two robust, neodymium motor, 18-
inch woofers with massive 4-inch (100mm) voice coils. Neodymium magnets are lighter, and their higher intensity
provides higher eīiciency, so the result is a lighter and louder cabinet than those with ferrite drivers.
The MK3 features an all-new DSP. The comprehensive suite of processing includes high-pass and low-pass
filters as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible,
including thermal, excursion and clipping. The five levels of protection actively prevent overheating of the voice
coil, minimize long-term thermal compression and limit excursion. Because they operate in 5 diīerent modes,
the limiters are sophisticated enough to have a largely unnoticable eīect on the transient response and allow
the subwoofer to deliver peak output safely.
The new DSP features an Ethernet interface. This can be used to control the cabinets from a computer or to load
software or firmware updates. The ethernet connectivity in conjunction with the DSP board allows signal to be
sent via Milan AVB. Firmware updates will provide access to this feature.
Within the software, multiple cabinets can be grouped together, allowing them to respond to commands
simultaneously. This permits the levels of multiple loudspeakers to be adjusted together and yet independently
from the levels of other groups of loudspeakers. In addition to individual and grouped level controls, presets
can be loaded and signal levels and temperatures can be monitored. Each cabinet includes a two-port switch
so multiple cabinets can be chained on the same data cable.
The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a
button with no need for a connected computer. The eight directly accessible presets are compatible with all the
presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs.
Product Specifications
| Brand: | BASSBOSS |
| Category: | Speaker |
| Model: | SSP218-MK3 |
