Page 1/10
This Manual is applicable to the Revised April 2nd 2015

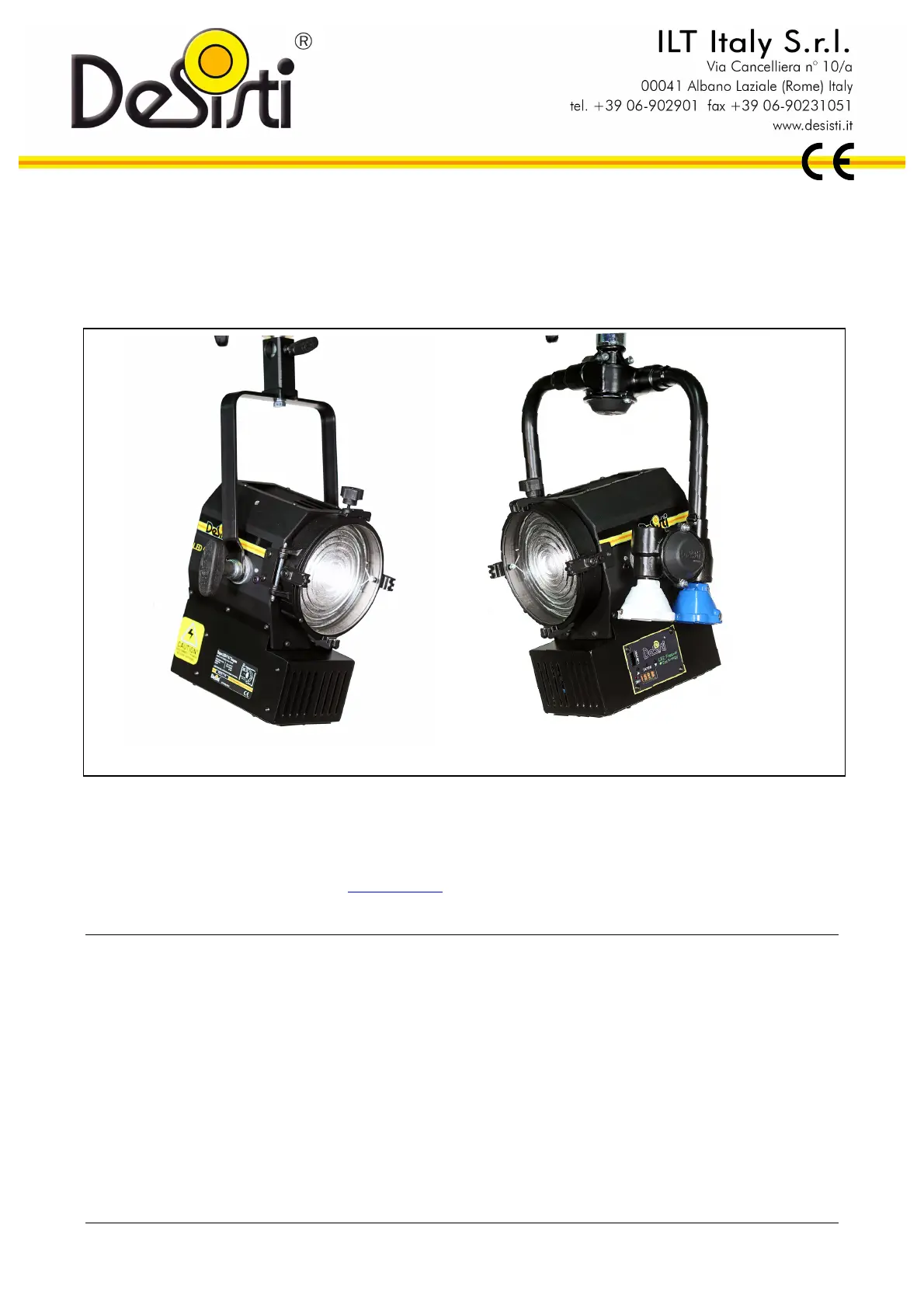

De Sisti LED Magis 4.7
Pag 1.
LED MAGIS 4.7
55W LED Fresnel SPOTLIGHT 100/240V 50/60 Hz
(white light, either Tungsten or Daylight balanced Correlated Color Temperature)
INSTRUCTION MANUAL
MANUFACTURER
REPRESENTATIVE
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
U.R.L.: www.desisti.it E-mail: desisti@desisti.it
1. INTRODUCTION
Congratulations on your purchase of a LED Magis 4.7 lighting fixture with either Tungsten or Daylight Balanced
CCT LED.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design
innovation and manufacturing of lighting products for the professional Entertainment Industry means you can
depend upon the quality of this product.
The LED Magis 4.7 is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined with the DE
SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when utilized in
combination with either Fresnels or Plano Convex lenses.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is equipped
with a universal voltage power supply for AC feed and it is available with either Tungsten or Daylight Balanced
CCT.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor, Colour
Frame, Cones, scrims.
Manual Operated
Pole Operated
This Manual is applicable to the Revised April 2nd 2015
De Sisti LED Magis 4.7
Pag 2.
2. YOKE AND ACCESSORIES ASSEMBLY
3. POWER AND DMX DAISY CHAIN
The LED Magis 4.7 permits both POWER and DMX DAISY CHAIN.
In fact each Fixture is respectively equipped with:
For DMX:
• 1 XLR5 pin Panel Mount Male (DMX IN)
• 1 XLR5 pin Panel Mount Female (DMX OUT)
For Mains Supply
• 1 20A Powercon NAC3MPA BLUE (POWER IN)
• 1 20A Powercon NAC3MPB WHITE (POWER OUT)
It is recommended to Daisy Chain a Max of 12 fixtures, even if the limitations
imposed by DMX Standards are for an higher q.ty of units and even if the Powercon
Connections are rated for 20A max.
(MANUAL OPERATED)
(POLE OPERATED)
This Manual is applicable to the Revised April 2nd 2015
De Sisti LED Magis 4.7
Pag 3.
4. SAFETY INSTRUCTIONS
! Professional use: This luminaire has been designed for professional use and must be operated by qualified
personnel only. Not for residential use.
! Grounding: WARNING: THIS LUMINAIRE MUST BE GROUNDED
! WARNING: Disconnect Power CORDS before
any maintenance work or opening the FUSE HOLDER.
Risk of serious injury.
! Electrical connections: IMPORTANT The cores in this mains lead are colored in accordance with the
following code:
Europe
America
Ground
Green & yellow
Green or green & yellow
Neutral
Blue
White
Live
Brown
Black
In case the colors of the cores do not correspond to the colors of the connection points on your plug, please
proceed as follows:
• the green or green and yellow core must be connected to the connection point marked with the letter E or with
the symbol or colored in green or in green - yellow;
• the blue (or white) core must be connected to the connection point marked with the letter N or colored in black;
• the brown (or black) core must be connected to the connection point marked with the letter L or colored in red.
Working conditions
! Working Position
Lighting fixture: Max. Tilting ±90° from horizontal
! Ambient Temperature, ta
at the place of installation and Storage
Minimum 10°C, maximum +40°C
! Humidity
at the place of installation and Storage
25-80% (not condensing)
! Minimum distances from
inflammable surfaces
Top
Back
Sides
Front
0,1 m.
0,1 m.
0,1 m.
0,5 m.
The luminaire should never be OPERATED close to inflammable materials. The ones indicated in the above table
are the minimum distances recommended. Other requirements for safe use are:
A. Do not cover the apertures of the luminaire housing. They are essential for correct ventilation.
B. Use only original accessories and spares from De Sisti Lighting.
C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly rated to accept the
luminaire weight.
D. In case of pole operated use, fit only a P.O. stirrup from De Sisti Lighting.
E. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be fitted between the
suspension point and the eyelet at the front of the body .
WARNING: DO NOT MOUNT THE LUMINAIRE ON A NORMALLY FLAMMABLE SURFACE.
5. INSTALLATION INSTRUCTIONS
The following procedure should be adopted:
Before connecting the luminaire to the electrical mains ensure that:
A. Earth line is present on the power socket.
B. The mains voltage is within the rated range of the luminaire (see technical data on the rating label)
C. The front safety shield is present and in good condition.
It consists of a Fresnel lens made by borosilicate un-toughened glass,
with a Diameter = 120 mm , thickness = 4 mm type ( 3 min ).
