Art.-Nr.: 20.311.00
Bedienungsanleitung
Starthilfekabel
Directions for Use
Jumper Cables
Mode d’emploi
Câbles de connexion de batteries
Gebruiksaanwijzing
Startkabel
Manual de instrucciones
cable de ayuda para el arranque
Manual de instruções
cabo auxiliar de arranque
Bruksanvisning
hjälpstartkabe
Käyttöohje
Käynnistyskaapeli
Bruksanvisning
kabel for start fra eksternt batteri
Istruzioni per l’uso dei
cavi di avviamento
Instrukcja obsługi
Kable do awaryjnego rozruchu silnika
Használati utasítás
segídindító kábel
ST 16
Achten Sie darauf,
dass die Kapazität der stromgebenden Batterie
(z.B. 45 Ah) nicht wesentlich unter der der
entladenen liegt
dass nur Batterien gleicher Nennspannung (z.B.
12 V) verbunden werden dürfen
dass zwischen den Fahrzeugen kein
Karosseriekontakt hergestellt werden darf
(Kurzschlussgefahr)
dass Zündquellen (z.B. offenes Licht, brennende
Zigaretten oder elektrische Funken) von den
Batterien fernzuhalten sind (Verpuffungsgefahr)
und dass wegen der Verätzungsgefahr man sich
nicht über die Batterien beugt
dass das Elektrolyt der entladenen Batterie auch
bei niedriger Temperatur flüssig ist
dass die entladene Batterie nicht von dem
dazugehörigen Bordnetz getrennt wird und die
Zündungen der Fahrzeuge vor dem Anklemmen
der Starthilfekabel ausgeschaltet sind: bei
Schaltgetrieben der Schalthebel in Leerlauf-
Stellung; bei Automatikgetrieben der Wählhebel
in Stellung «P» steht und die Feststellbremse
angezogen ist
dass die Leitungen des Starthilfekabels nicht von
den sich drehenden Teilen im Motorraum erfasst
werden können
wie und in welcher Reihenfolge Starthilfekabel
an- und abzuklemmen sind
Anklemmen:
Leitung mit den roten Polzangen zuerst am Pluspol
der entladenen Batterie (siehe Bild/Position 1) und
dann am Pluspol der Spenderbatterie (siehe
Bild/Position 2) anklemmen. Anschliessend die
Leitung mit den schwarzen Polzangen am Minuspol
der Spenderbatterie (siehe Bild/Position 3) und
danach an die Fahrzeugmasse des
liegengebliebenen Fahrzeuges, z.B. am Masseband
oder einer anderen blanken Stelle am Motorblock
(siehe Bild/Position 4), soweit wie möglich von der
Batterie entfernt anklemmen, um das Zünden von
möglicherweise entwickeltem Knallgas zu
verhindern.
Starten:
Danach Motor des Spenderfahrzeugs starten und auf
mittlere Drehzahl bringen. Anschliessend Motor des
liegengebliebenen Fahrzeugs starten. Nach einem
Startvorgang, der nicht länger als 15 Sekunden
dauern soll, ist eine Wartezeit von 1 Minute
einzulegen.
Abklemmen:
Wenn der Motor rund läuft (nach 2 bis 3 Minuten)
Starthilfekabel in umgekehrter Reihenfolge
abklemmen: Zuerst schwarze Polzange vom
Masseband oder Motorblock des liegengebliebenen
Fahrzeuges abnehmen (siehe Bild/Position 4). Dann
die andere schwarze Polzange vom Minuspol der
Spenderbatterie (siehe Bild/Position 3) und
anschliessend die beiden roten Polzangen in
beliebiger Reihenfolge abnehmen.
Hinweise:
Starten von Katalysator-Autos
Bei nicht startfähiger Batterie den Motor nur mit
Starthilfekabel und Spenderbatterie starten. Durch
Anschieben oder Abschleppen kann Benzin in den
Auspuff gelangen und den Katalysator beschädigen.
Bedienungsanleitung des Autos bzw. der
Zusatzgeräte (wie z.B. Autotelefon, Bordcomputer
usw.) auf eventuelle Hinweise zur Ladung der
Batterie und zur Starthilfe beachten.
D
2
It is vital to make sure that
the capacitance of the battery supplying the
power (e.g. 45 Ah) does not lie substantially
below that of the discharged battery;
only batteries of identical nominal voltage (e.g.
12 V) are connected together;
there is no contact between the body work of the
vehicles involved (risk of short-circuiting);
sources of ignition (e.g. naked lights, burning
cigarettes or electric sparks) are kept away from
the batteries (risk of detonation) and that you
avoid bending over the batteries due to risk of
caustic burns;
the electrolyte of the discharged battery is still
fluid at low temperature;
the discharged battery is not disconnected from
its vehicle’s electric system and that the ignition
of both vehicles is switched off before connecting
up the jumper cables: vehicles with manual
transmissions - place the shift lever in neutral;
vehicles with automatic transmissions - place the
selector lever in position „P“ and pull the hand
brake;
the leads of the jumper cable cannot get caught
up in any moving parts inside the engine
compartment;
you know how and in which order you have to
connect and disconnect the jumper cables.
Connecting the jumper leads:
Connect the lead with the red pole clamps first to the
positive pole of the discharged battery (see
Figure/Item 1) and then to the positive pole of the
supplier battery (see Figure/Item 2). Now connect the
lead with the black pole clamps to the negative pole
of the supplier battery (see Figure/Item 3) and then
to ground on the receiver vehicle, e.g. the ground
strap or some other bare point on the engine block
(see Figure/Item 4). Choose a point as far away as
possible from the battery in order to avoid the ignition
of any electrolytic gas which may develop.
Starting:
Start the engine of the supplier vehicle and rev up to
the medium speed range. Then start the engine of
the receiver vehicle. Try for no longer than 15
seconds to start the vehicle, then wait for 1 minute
before trying again.
Disconnecting the jumper leads:
When the engine is running smoothly (after 2 to 3
minutes), disconnect the jumper cables in reverse
order: First disconnect the black pole clamp from the
ground strap or the engine block of the receiver
vehicle (see Figure/Position 4). Then disconnect the
other black pole clamp from the negative pole of the
supplier battery (see Figure/Item 3). Finally, remove
the two red pole clamps in any order.
N.B.:
Starting a vehicle with a catalytic converter
Use only jumper cables and a supplier battery to
start the vehicle if its own battery is too weak.
If you try to start the vehicle by pushing or towing,
petrol may get into the exhaust system and damage
the catalytic converter. Consult the manuals supplied
with the vehicle and any auxiliary equipment (e.g. car
phone, vehicle computer, etc.) for information about
charging the battery and starting aid.
GB
3

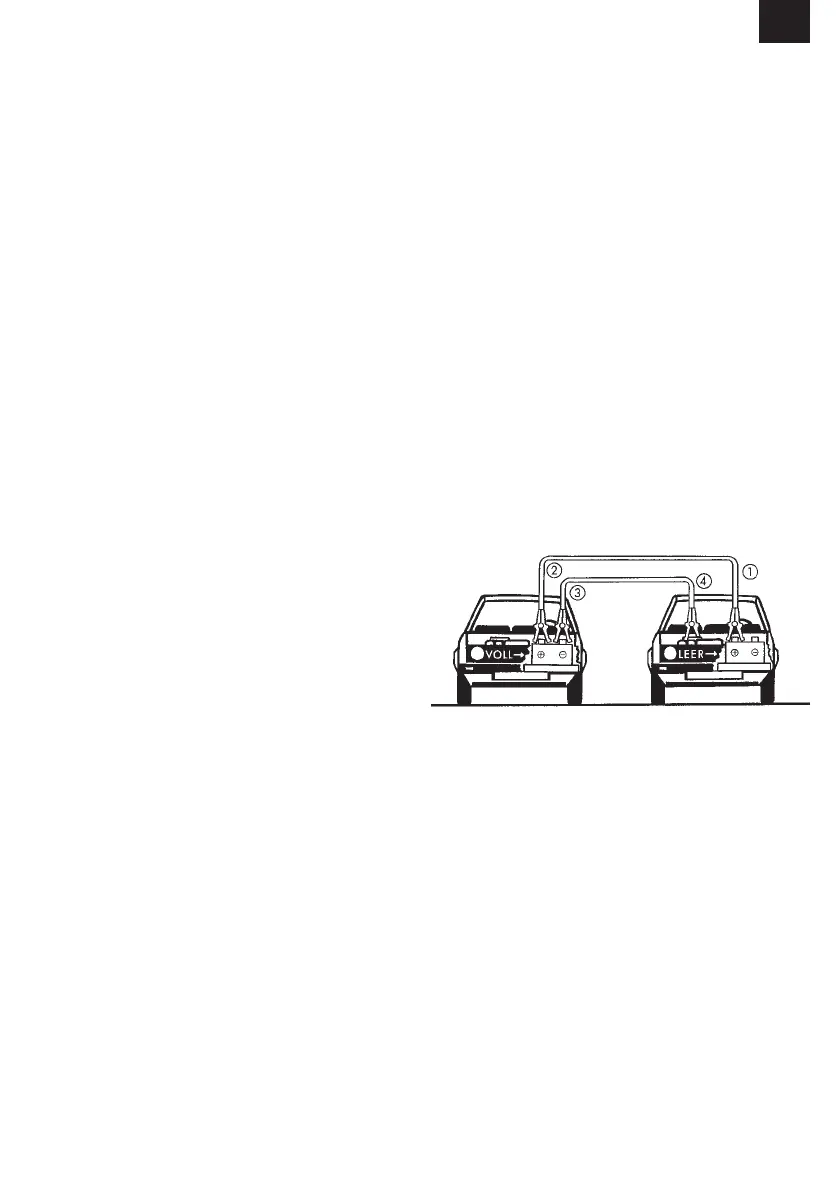

charged battery discharged battery
