Page 1/10
www.evolutionbuild.com

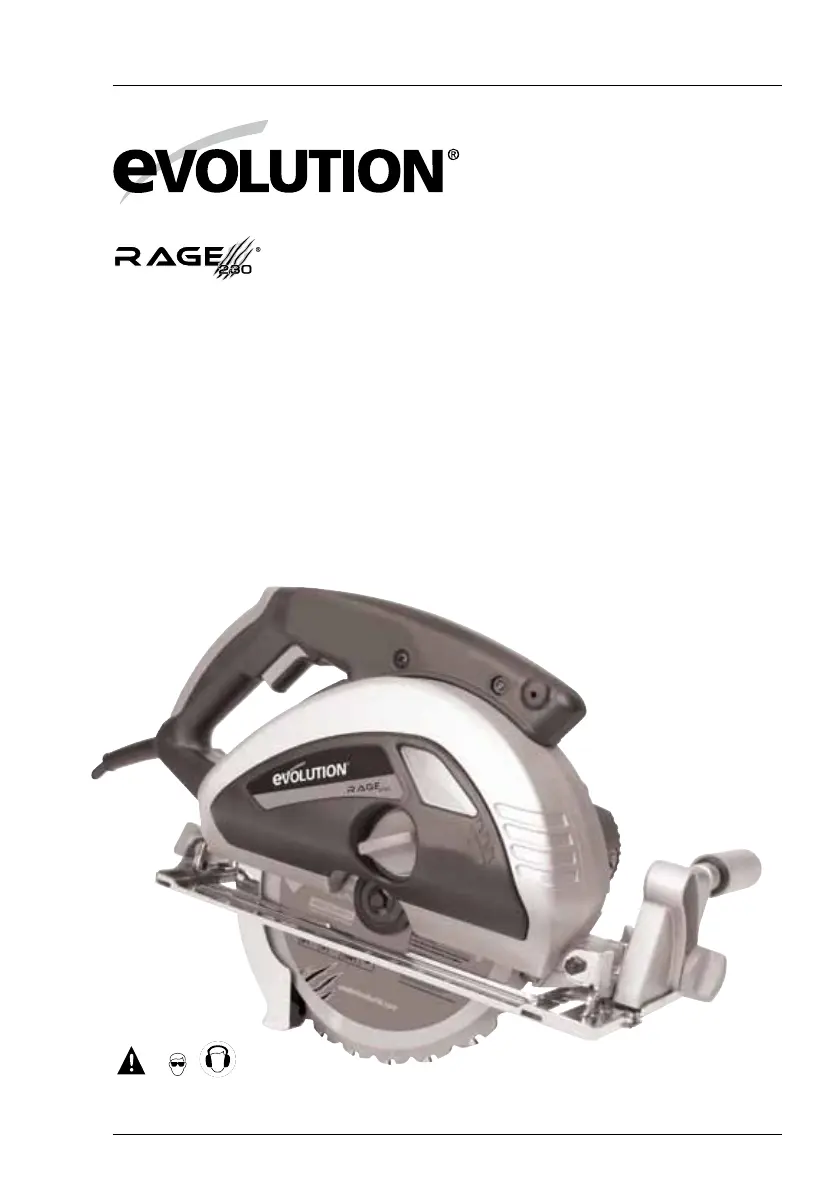

230mm (9ā) TCT
Multi Purpose Cutting Circular Saw
Instruction
Manual
Read instructions before operating this tool.
We, Evolution Power Tools Limited, Venture One,
Longacre Close, Shefļ¬eld, S20 3FR as the supplier of the
product listed below:
RAGE 230 ~ 230mm TCT Steel Cutting Circular Saw
Part Number RAGE 230X1/RAGE 230X2/RAGE 230X2EU
Voltage 110/230v
Power 1750W
Declare, under our sole responsibility that the equipment
to which this document relates, is in conformity with the
following standards or other normative documents:
EN60335-1: 1994+A1+A2+A11-A16
EN55014-1: 2000+A1+A2
EN55014-2: 1997+A1
EN61000-3-2: 2000
EN61000-3-3: 1995+A1
EN61000-3-11: 2000
EN60745-1/A1:2003
EN60745-2-5:2003
And thereby conforms to the protection requirements of
Council Directive 73/23/EEC amended by 93/68/EEC
relating to the Low Voltage Directive, Council Directive
98/37/EEC relating to the Machine Directive and Council
Directive 89/336/EEC relating to the EMC Directive, and is
compliant with Council Directive 2002/95/EC in relation to the
Restriction of Hazardous Substances in electrical & electronic
equipment (RoHS). EU Directive 2002/95/EC restricts the
use of the 6 substances below in the manufacture of speciļ¬c
types of electrical equipment. Whilst this restriction does not
legally apply to components, it is recognized that component
ācomplianceā is relevant to many customers.
Evolution Power Tools deļ¬nition of RoHS Compliance:
ā¢ The product does not contain any restricted substances in
concentrations and applications banned by the directive and
for components, the product is capable of being worked at
the higher temperatures required by lead-free soldering.
ā¢ The restricted substances and maximum allowed
concentrations in homogenous materials are, by weight:
Lead ā 0.1%
Mercury ā 0.1%
PBB (Polybrominated Biphenyis) ā 0.1%
PBDE (Polybrominated Diphenyl Ethers) ā 0.1%
Hexavalent Chromium ā 0.1%
Cadmium ā 0.01%
Level of Sound pressure according to
86/188/EEC, 98/37/EEC & 2000/14/EC
Guaranteed Sound Power Level 108.7 dB(A)
All Relevant technical documentation is held at Evolution
Power Tools Ltd, Shefī¬eld, United Kingdom.
Authorised By
Mr Matthew J Gavins
Managing Director
9th May 2007
www.evolutionbuild.com
2
EC - DECLARATION OF CONFORMITY
www.evolutionbuild.com
3
Please read these operating and safety instructions carefully
and completely. For your own safety, before using this
equipment check that the voltage is correct and that all
handles and parts are ļ¬rmly secured. If you are uncertain
about any aspect of using this equipment, please contact our
Technical Helpline.
Technical Helpline UK 0870 609 2297
Technical Helpline USA 1-866-EVO-TOOL
Congratulations on your purchase of an Evolution Power
Tools Circular Saw. Please complete and mail your
product registration card or register on line to validate
your machineās warranty period and ensure prompt
service if needed. We sincerely thank you for selecting a
product from Evolution Power Tools.
12 MONTH LIMITED WARRANTY.
Evolution power tools reserves the right to make
improvements and modiļ¬cations to design without
prior notice.
Evolution Power Tools will, within twelve (12) months from
the original date of purchase, repair or replace any goods
found to be defective in materials or workmanship, provided
the product warranty registration card has been returned
to Evolution Power Tools. This warranty is void if the tool
being returned has been used to cut materials beyond the
recommendations in the Instruction Manual or if the saw has
been damaged by accident, neglect, or improper service. This
warranty does not apply to machines and / or components
which have been altered, changed, or modiļ¬ed in any way,
or subjected to use beyond recommended capacities
and speciļ¬cations. Electrical components are subject to
respective manufacturersā warranties. All goods returned
defective shall be returned prepaid freight to Evolution Power
Tools. Evolution Power Tools reserves the right to optionally
repair or replace it with the same or equivalent item. There
is no warranty ā written or verbal ā for saw blades. In no
event shall Evolution Power Tools be liable for loss or damage
resulting directly or indirectly from the use or merchandise or
from any other cause. Evolution Power Tools is not liable for
any costs incurred on such goods or consequential damages.
No ofī¬cer, employee or agent of Evolution Power Tools is
authorised to make oral representations of ļ¬tness or to waive
any of the foregoing terms of sale and none shall be binding
on Evolution Power Tools. Questions relating to this limited
warranty should be directed to the companyās head ofļ¬ce, or
call the appropriate Helpline number.
Read and understand all instructions before
operating this product. Failure to follow all
instructions listed below, may result in electric
shock, ļ¬re and / or serious personal injury.
SAVE THESE INSTRUCTION FOR FUTURE REFERENCE.
WARNING!
When using electric tools basic safety precautions should
always be followed to reduce the risk of ļ¬re, electric shock
and personal injury including the following.
Read all these instructions before attempting to operate
this product and save these instructions.
The term āpower toolā in the warnings refers to your mains-
operated (corded)
1) Work Area Safety
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of ļ¬ammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) Electrical Safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodiļ¬ed
plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed
or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
IMPORTANT
EVO230 ~ 230mm (9ā )TCT CIRCULAR SAW
GENERAL SAFETY RULES
Product Specifications
| Brand: | Evolution |
| Category: | Sawing machine |
| Model: | RAGE230 |
