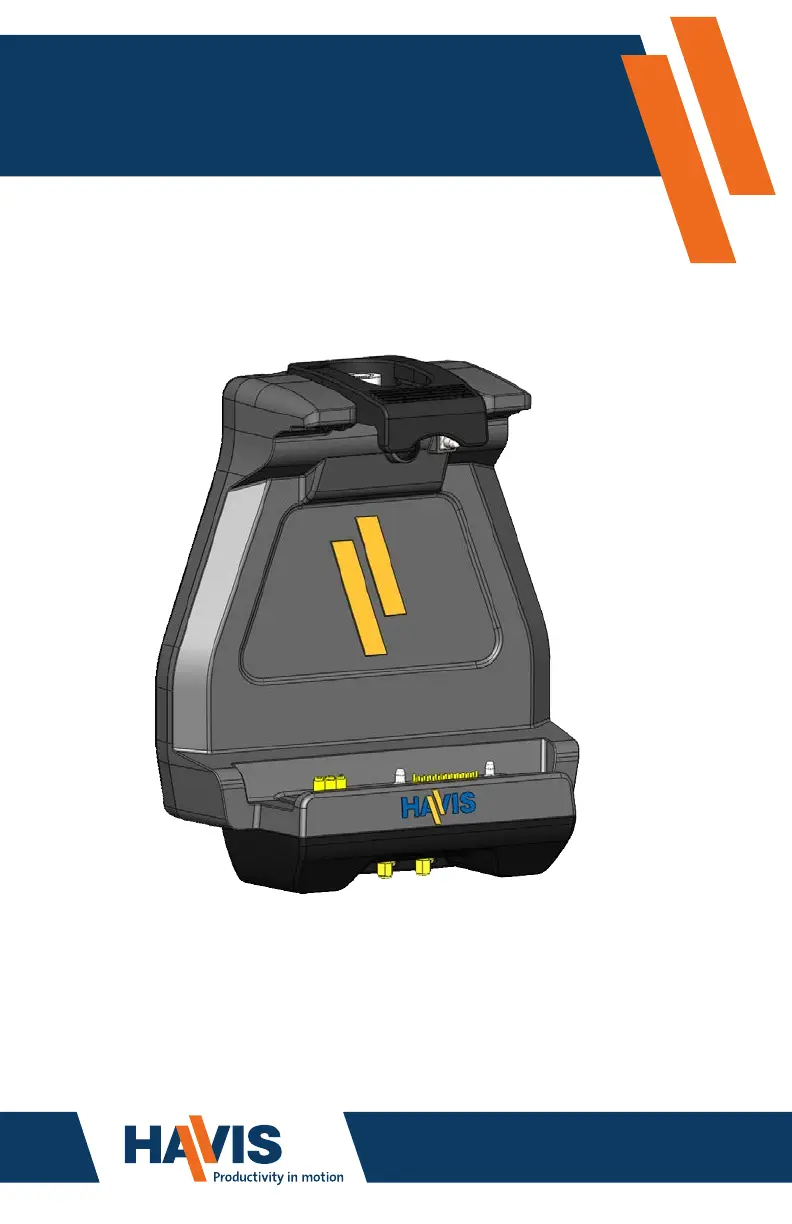

Owner’s Manual
Havis Docking Station
For Getac T800 Rugged Tablet
DS-GTC-400-SERIES_OMN_12-14
www.havis.com
1-800-524-9900
DS-GTC-401
DS-GTC-401-3
DS-GTC-402
DS-GTC-402-3
DS-GTC-403
DS-GTC-403-3
DS-GTC-400 Series
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974
www.havis.com 1-800-524-9900
www.havis.com • 1-800-524-9900
DS-GTC-401
DS-GTC-401-3
DS-GTC-402
DS-GTC-402-3
DS-GTC-403
DS-GTC-403-3
Before Beginning
(Original Instructions)
2 11
• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE
AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.
Havis is pleased to provide this Owner’s Manual to aid in the proper
installation and use of the DS-GTC-400 Series Docking Station for
the Getac T800 Rugged Tablet.
For questions regarding the set-up of your DS-GTC-400 Series Docking Station,
please contact Havis at 1-800-524-9900 or visit www.havis.com for additional
product support and information.
This Owner’s Manual applies to the following Part Numbers:
• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY
(DS-GTC-402, DS-GTC-402-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
• WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN
0°C to 50°C (32°F to 122°F).
PLEASE REFER TO GETAC T800 OWNER’S MANUAL FOR MORE INFORMATION.
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR
UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES
CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-GTC-401, DS-GTC-401-3, DS-GTC-402 & DS-GTC-402-3 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires
a certied, automotive grade, Getac approved 95W power source rated for a
continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent).
Failure to comply with this requirement will cause product damage that is NOT
repairable and is NOT covered under warranty.
• FOR THE DS-GTC-403 & DS-GTC-403-3 DOCKING STATION:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac T800 tablet
requires a certied, Getac approved power source rated for a continuous, regulated
19VDC output. Failure to comply with this requirement will cause product damage
that is NOT repairable and is NOT covered under warranty.
Related Products
Havis offers a wide variety of accessory products specically for use
with the DS-GTC-400 Series Docking Station. For more information or
to order, please visit www.havis.com.
LPS-116
95W Power Supply
External in-vehicle power supply and cable for Getac
T800 Rugged Tablet with cigarette lighter adaptor.
DS-DA-218
Desktop Stand for Tablet Docking Stations
Durable stand for mounting tablet Docking Stations
for use in the home or office.
DS-DA-502
Replacement Keys
Set of two (2) replacement keys for DS-GTC-400
Series Docking Stations.
Table of Contents
10 3
Specications
Parts Included
Port Replication Capability
Antenna Identication
Installation
Cable Management
Operation - Docking
Operation - Undocking
3
4
5
5
6
7
8
10
Specications
Power Supply Input 19.0V DC-In
Dimensions 8.1” ( 20.7 cm) H x 7.0” ( 17.8 cm ) W x 3.5” ( 8.9 cm ) D
Weight 1.6 lbs ( 0.75 kg )
Operating Environment -20° C to 60° C ( -4° F to 140°F )
Storage Environment -51° C to 71° C ( -60° F to 160° F )
• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specied Power Supply (Part # LPS-116) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specied for
• Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F)
for a long period of time
Precautions
Operation - Undocking
1) If previously locked, unlock Docking Station using supplied key.
2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down
on the Barrel Lock button and release quickly taking care not to obstruct the
travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched
position, lift up lightly on the front of the Latch Hook to fully release.
3) Once unlatched grab both sides of tablet, rock the top forward and carefully
lift out of Docking Station, top end rst.
EC DECLARATION OF CONFORMITY in accordance with EN 50498
Manufacturers Name: Havis, Inc.
Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA
Declares under our sole responsibility that the product:
Product name: Havis Docking Station For Getac T800 Fully Rugged Tablet
Model: DS-GTC-40X, where ‘X’ may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.
Is in conformity with the following standards or other normative documents:
Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -
2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Supplementary Information:
The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8,
and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.
Plymouth twp, MI, USA August 21, 2014 Bruce Jonik, Director of Engineering , Havis, Inc.
FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modications
to the model DS-GTC-40X not expressly approved by Havis, Inc. could void
the user's authority to operate this equipment.

Product Specifications

Brand: Havis
Category: Cradle/docking station
Model: DS-GTC-401-3
