FAST ETHERNET

MEDIA CONVERTER

INSTRUCTIONS

MODELS 506502, 506519, 507332

INT-506502/506519/507332-UM-ML1-1015-02

Model 506502

Important: Read before use. • Importante: Leer antes de usar.

intellinetnetwork.com

ENGLISH

Fast Ethernet Media Converter English

Thank you for purchasing the Intellinet Fast Ethernet Media

Converter. Media converters connect two Ethernet networks over

a longer distance using ﬁber optic cable.

MODELS

• 506502:

Fast Ethernet Media Converter

10/100Base-TX to 100Base-FX (SC) Multimode, 2 km (1.24 mi.)

•506519:

Fast Ethernet Media Converter

10/100Base-TX to 100Base-FX (ST) Multimode, 2 km (1.24 mi.)

•507332:

Fast Ethernet Single Mode Media Converter

10/100Base-TX to 100Base-FX (SC) Single Mode, 20 km (12.4 mi.)

CONNECTIONS

TwistedPair–RJ45

Connect the UTP port of the media converter to an RJ45 port on

the network; e.g., to an Ethernet switch. Cat5e or better cabling is

recommended.

Fiber Optic

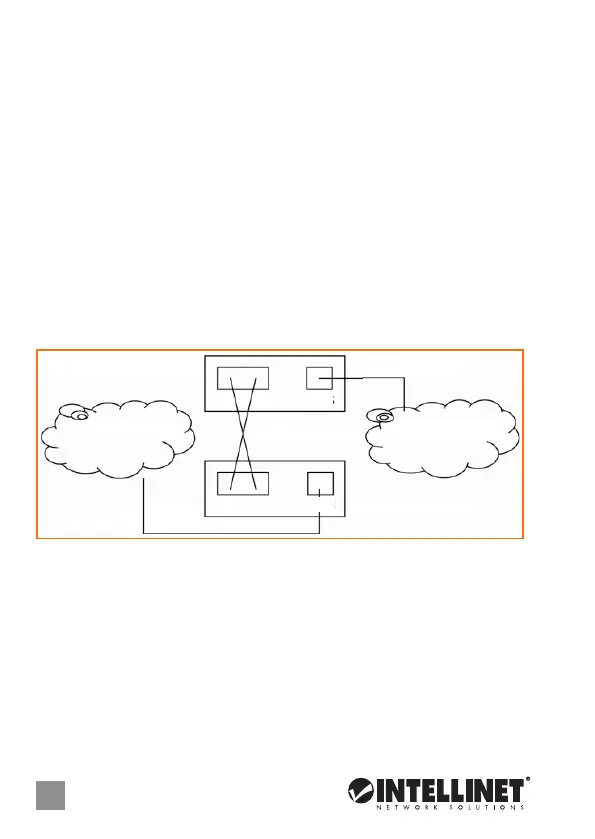

As shown above, two ﬁber optic cables need to be connected be-

tween two ideally identical media converters. Make a connection

MediaConverter1

MediaConverter2

RJ45

OPTICAL FIBER

ETHERNET1

ETHERNET2

Twisted Pair

ENGLISH

from Media Converter 1 TX to Media Converter 2 RX, and from

Media Converter 1 RX to Media Converter 2 TX. Maximum length

and ﬁber cable speciﬁcation depend on the model. (See Models.)

POWER

Plug the power adapter into the 5 V DC input jack on the media

converter, then connect it to a regular power outlet. Only use

the included power adapter or one with matching speciﬁcations

(output of 5 V DC, at least 1 A).

LEDS

PWR – The power adapter is connected when lit.

100M – 100 Mbps link on the twisted pair connection when lit;

10 Mbps link or no link if unlit.

Link/Act(TP=RJ45;FP=Fiber) – Active link when lit; data traﬃc

when ﬂashing; no active network link when unlit.

FDX/COL(forTP/RJ45) – Full duplex connection when lit; data

collisions when ﬂashing; half duplex when unlit.

SD(forFP/Fiber) – Fiber optic signal is detected when lit; no

signal when unlit.

For speciﬁcations, go to intellinetnetwork.com.
